Door Control Module Schematics

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

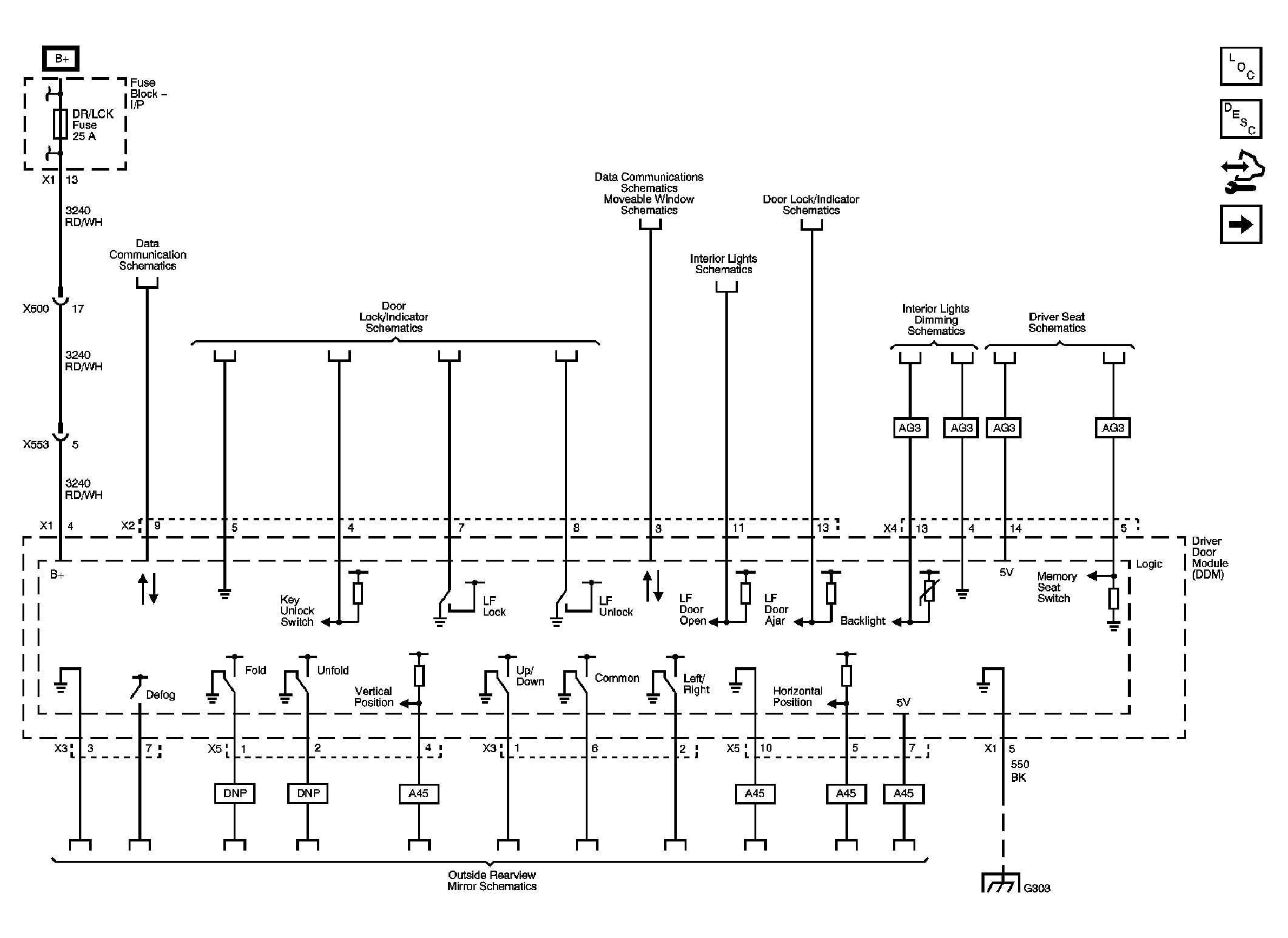

Fig 1: DDM Power, Ground & All Except KA1 References Schematic

Courtesy of GENERAL MOTORS CORP.

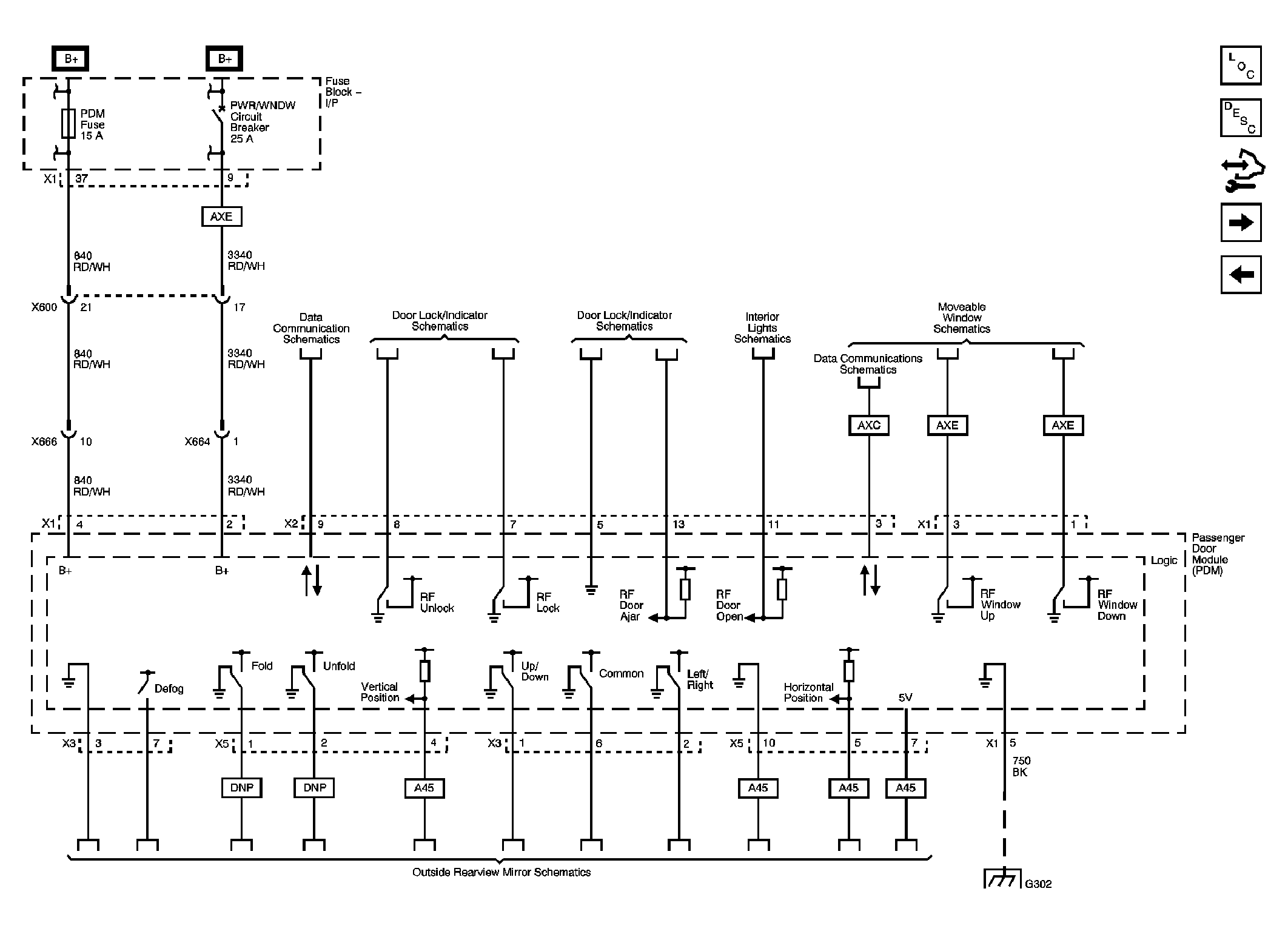

Fig 2: PDM Power, Ground & All Except KA1 References Schematic

Courtesy of GENERAL MOTORS CORP.

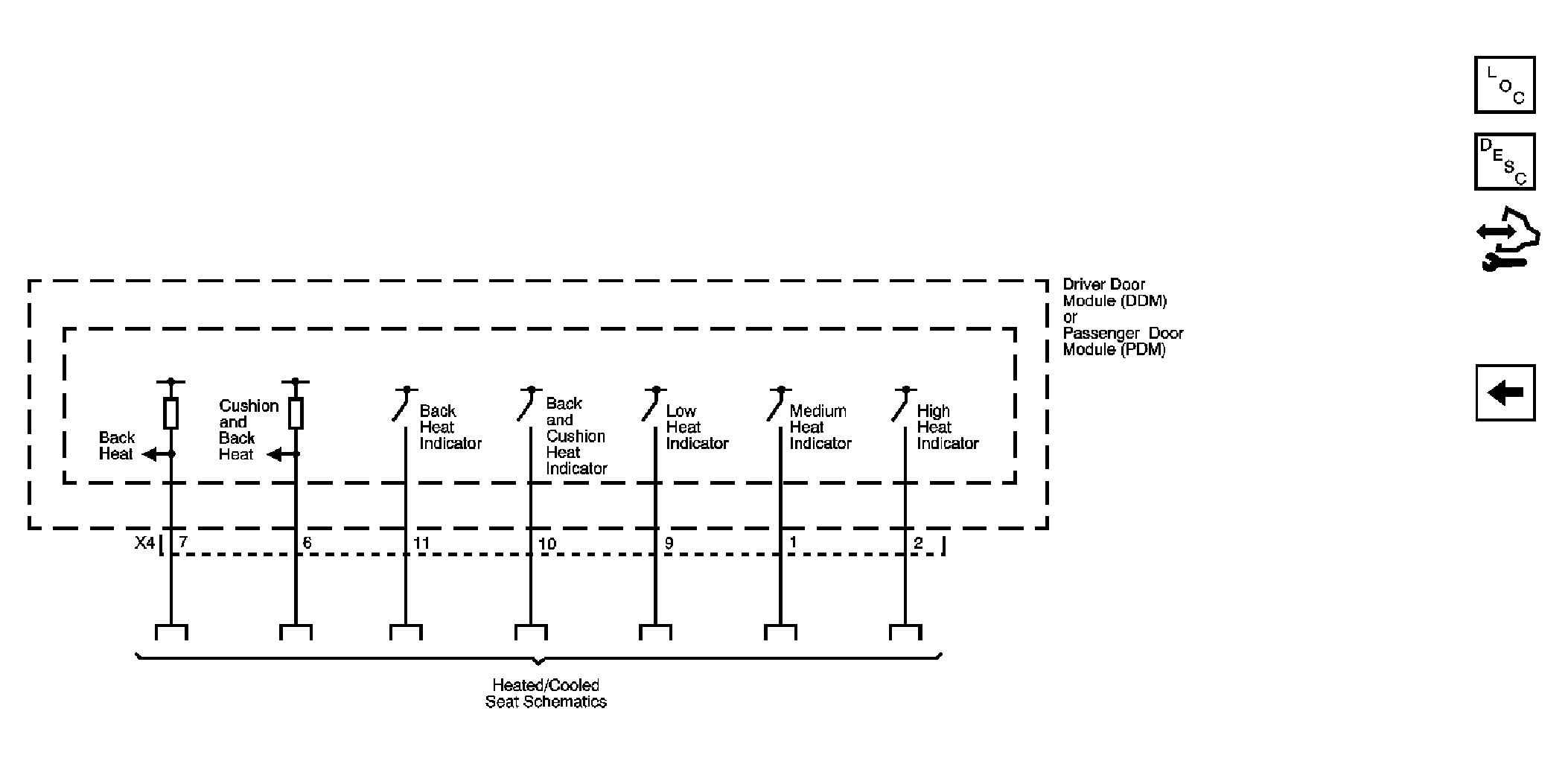

Fig 3: KA1 References Schematic

Courtesy of GENERAL MOTORS CORP.
