Radio Front Speaker Replacement
WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.
Radio Front Speaker Replacement

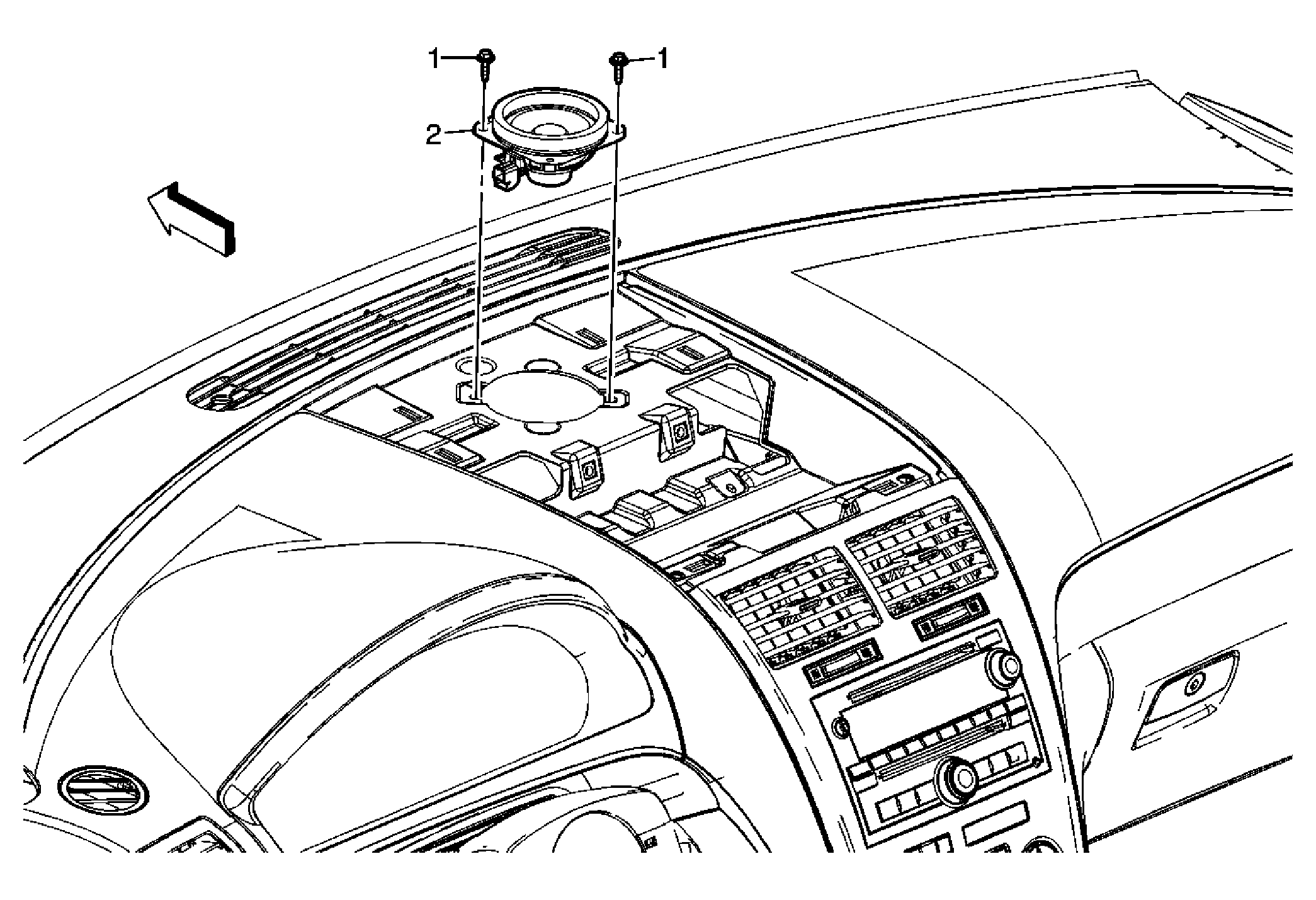

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement . |
|
| 1 | Radio Front Speaker Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Radio Front Speaker Assembly Procedure: Disconnect the electrical connector. |
