Front Fog Lamp Replacement
WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.
Front Fog Lamp Replacement

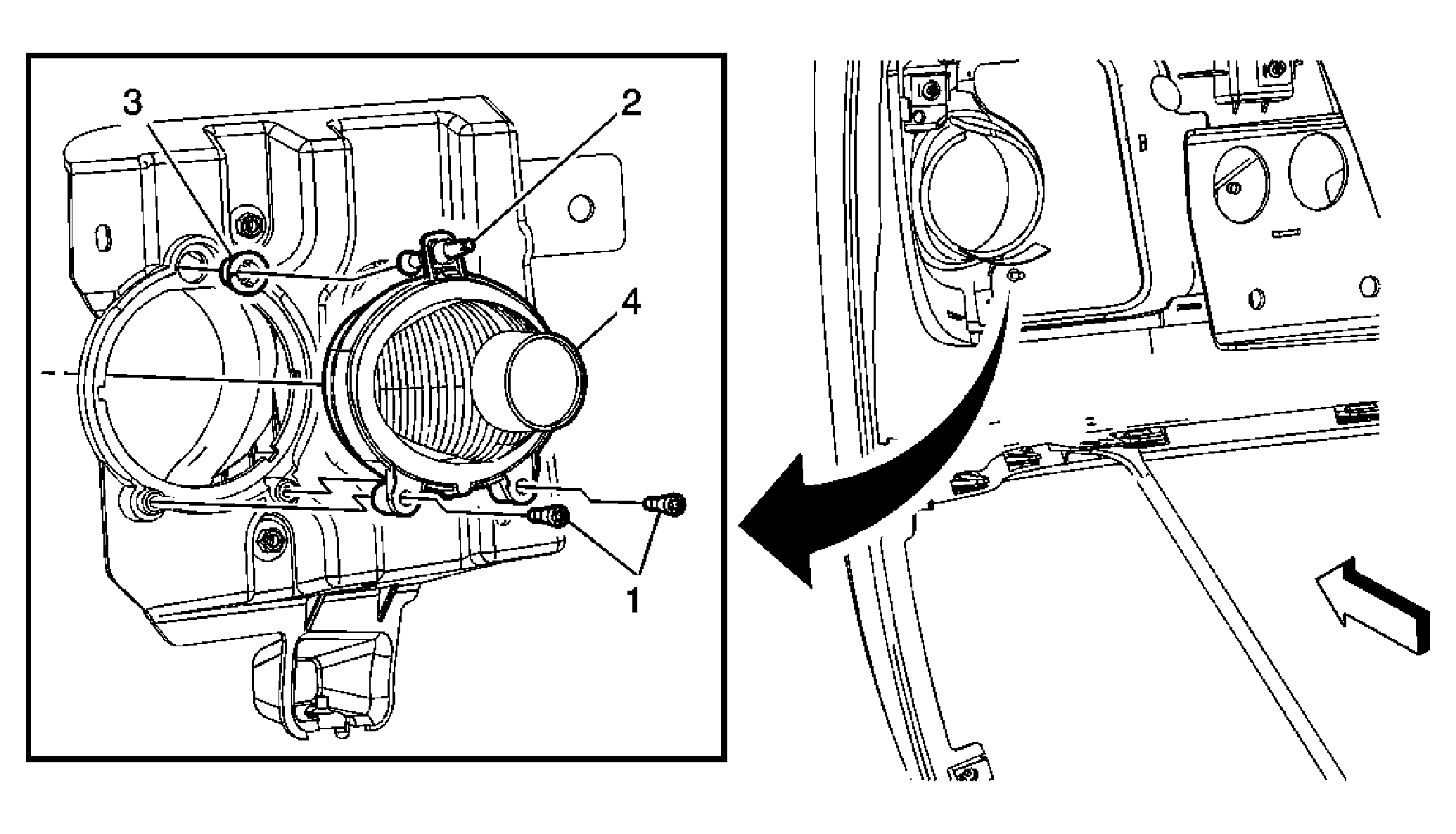

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the park and turn signal lamp bracket assembly. Refer to Parking and Turn Signal Lamp Bracket Replacement . |
|
| 1 | Front Fog Lamp Assembly Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.0 N.m (18 lb in) |
| 2 | Front Fog Lamp Adjuster Screw Tip: Count the reverse turns of the adjuster screw in order to have the same number of turns upon re-assembly. Procedure: Aim the fog lamps after the park and turn signal lamp bracket has been re-installed. Refer to Fog Lamp Aiming . |
| 3 | Front Fog Lamp Adjuster Screw Retainer Tip: Ensure the retainer is fully seated into the park and turn signal lamp bracket prior to installing the adjuster screw. |
| 4 | Front Fog Lamp Assembly
CAUTION:
Refer to Halogen Bulb Caution
. Tip: Transfer the fog lamp bulb as needed. |
