Installation Procedure

IMPORTANT: DO NOT apply thread sealant to the sensor threads. The sensor threads are coated at the factory. Applying additional sealant affects the sensors ability to detect detonation.
    Fig 1: Removing/Installing Knock Sensor
    GM1587771Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install and tighten the bank 2 knock sensor (2).

    Tighten:  Tighten the sensor to 25 N.m (18 lb ft).

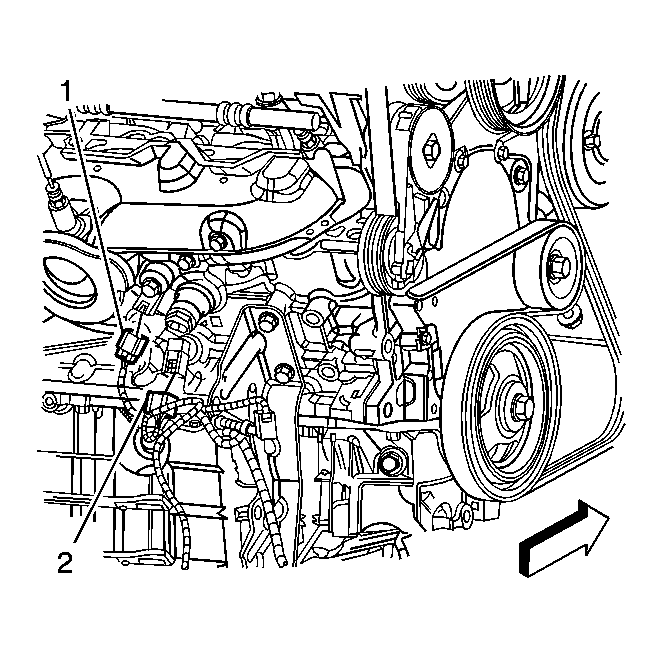

    2. Fig 2: Identifying Knock Sensor (KS) & Crankshaft Position (CKP) Sensor Connectors
    GM1679872Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine harness electrical connector (1) to the knock sensor.
  3. Install the splash shield. Refer to Engine Splash Shield Replacement .
  4. Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation .
