Installation Procedure

IMPORTANT: DO NOT apply thread sealant to the sensor threads. The sensor threads are coated at the factory. Applying additional sealant affects the sensors ability to detect detonation.

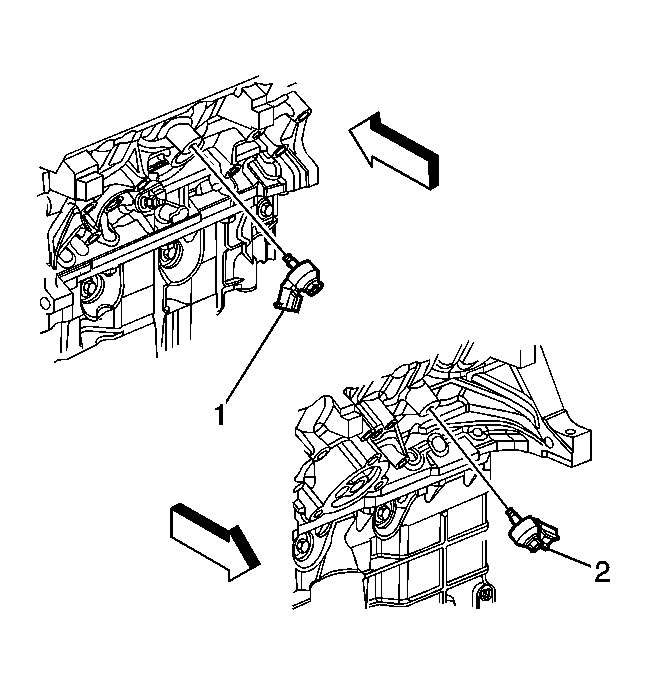

    Fig 1: Removing/Installing Knock Sensor
    GM1587771Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install and tighten the bank 1 knock sensor (1).

    Tighten:  Tighten the sensor to 25 N.m (18 lb ft).

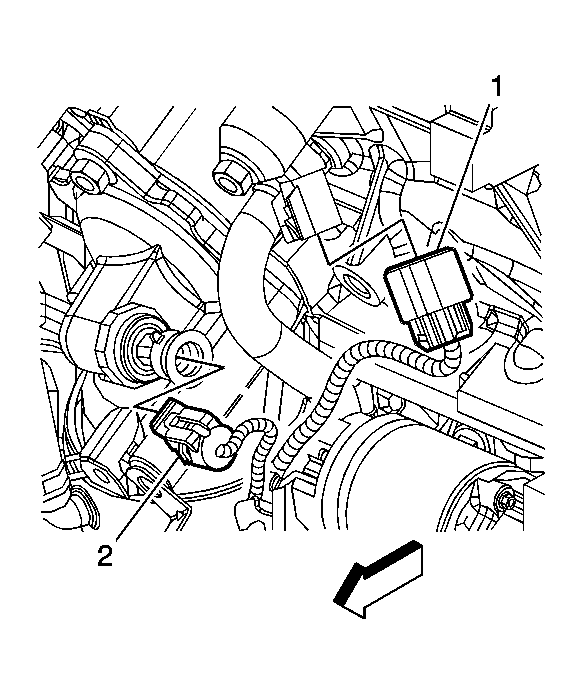

    2. Fig 2: Identifying Oil Pressure Sensor & Knock Sensor Electrical Connectors
    GM1675553Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine harness electrical connector (1) to the knock sensor.
  3. Install the radiator air baffle. Refer to Radiator Air Baffle Assemblies and Deflectors .
  4. Lower the vehicle.
