Installation Procedure

    Fig 1: View Of Fuel & EVAP Line
    GM1544726Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel and EVAP pipes (1).

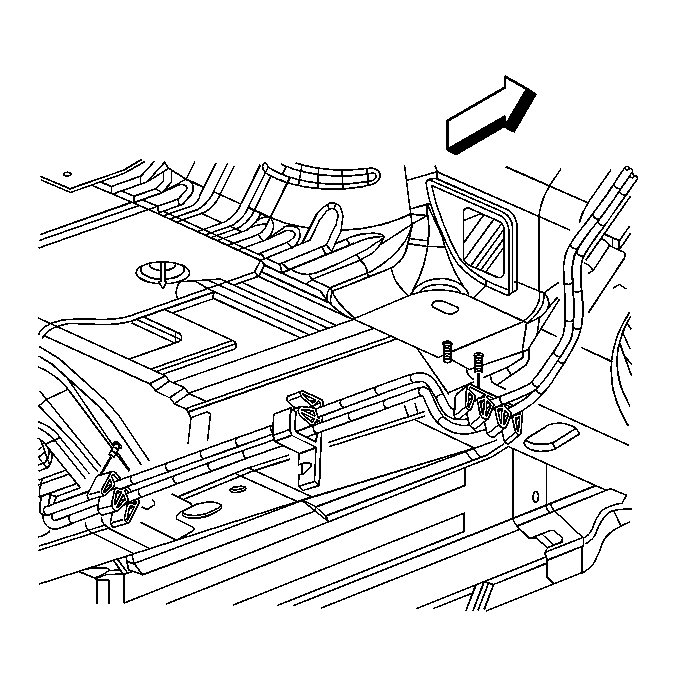

    2. Fig 2: Removing/Installing Fuel/EVAP Pipe At Clips
    GM1682384Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel/EVAP pipe clips to the studs.
    3. Fig 3: Identifying Fuel/EVAP Pipe Clip
    GM1682383Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel/EVAP pipe clip to the stud.
    4. Fig 4: Identifying Fuel/EVAP Pipe Clip Nut
    GM1682380Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Install the fuel/EVAP pipe clip nut.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  5. Perform the following procedures if equipped with auxiliary rear air and heat.
    1. Move the rear heater and A/C pipes into their original position.
    2. Connect the rear heater and A/C pipes to the rear HVAC module. Refer to Auxiliary HVAC Module Replacement .
    6. Fig 5: Identifying Fuel Tank Feed Pipe Quick Connect Fitting
    GM1682041Courtesy of GENERAL MOTORS CORP.
  6. Connect the fuel feed (1) and EVAP (2) pipes to the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Install the engine and transmission as an assembly. Refer to Engine Replacement .
