Removal Procedure

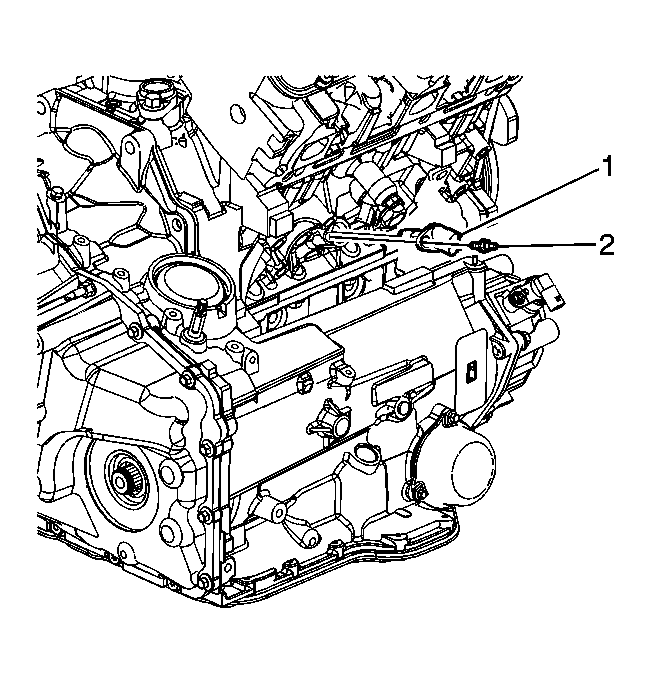

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1712672Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement - Right Side .
  2. Disconnect the engine harness electrical connector from the crankshaft position (CKP) sensor.
  3. Remove the CKP sensor stud (2).
  4. Remove the CKP sensor (1).
