Installation Procedure

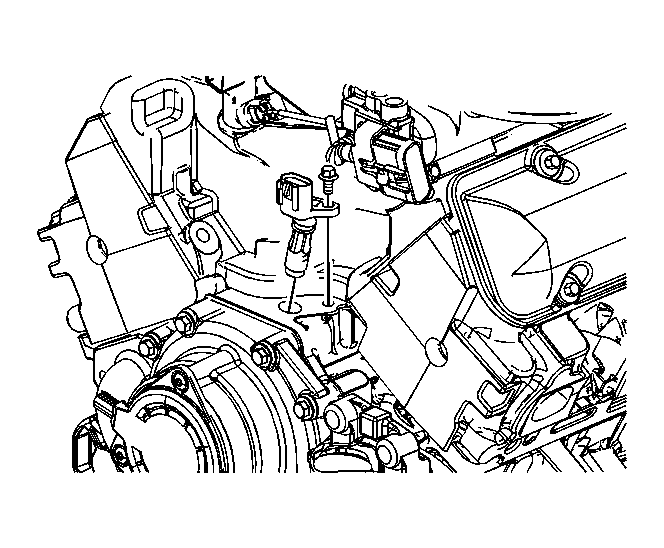

    Fig 1: Disconnecting/Connecting Camshaft Position (CMP) Sensor Electrical Connector
    GM1599076Courtesy of GENERAL MOTORS CORP.
  1. Replace the O-ring if damaged, lubricate the NEW O-ring with clean engine oil.
  2. Install the CMP sensor.
    3. NOTE: Refer to Fastener Notice .
  3. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Connect the CMP sensor electrical connector.
  5. Install the power steering pump. Refer to Power Steering Pump Replacement .
