Driver Information Display Switch Replacement
Driver Information Display Switch Replacement

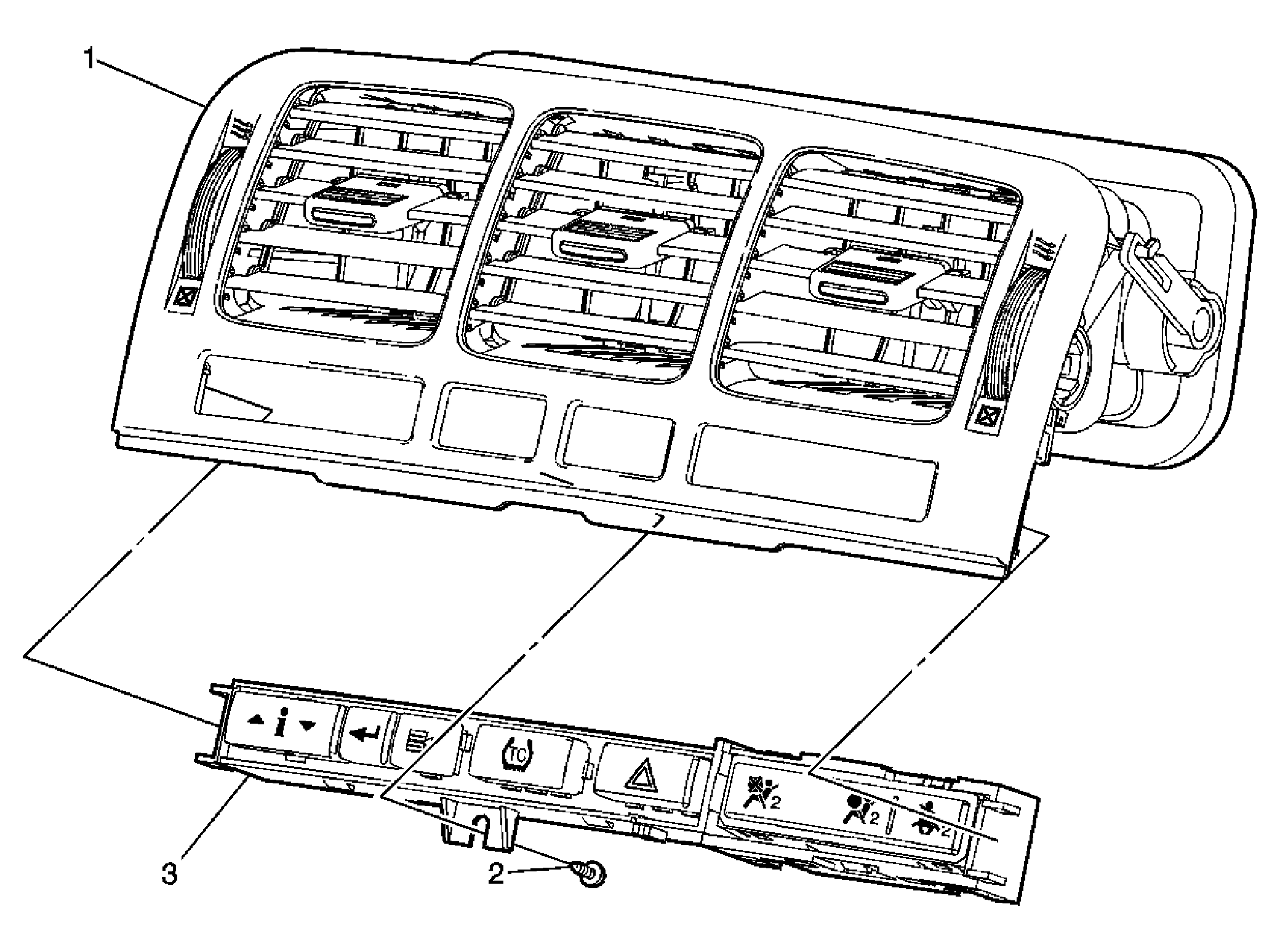

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Air Outlet Assembly Refer to Instrument Panel Center Air Outlet Replacement . |
| 2 | Driver Information Center Switch Screw (Qty: 1)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Driver Information Center Switch Assembly |
