Removal Procedure

CAUTION: Refer to Battery Disconnect Caution .
CAUTION: Batteries generate hydrogen gas, which is extremely flammable and may explode violently if ignited by a spark or a flame. Battery acid is extremely corrosive and causes severe personal injury if the acid comes into contact with the skin, and blindness if the acid comes into contact with the eyes. In order to avoid severe personal injury, use extreme caution when servicing the battery or battery-related components.

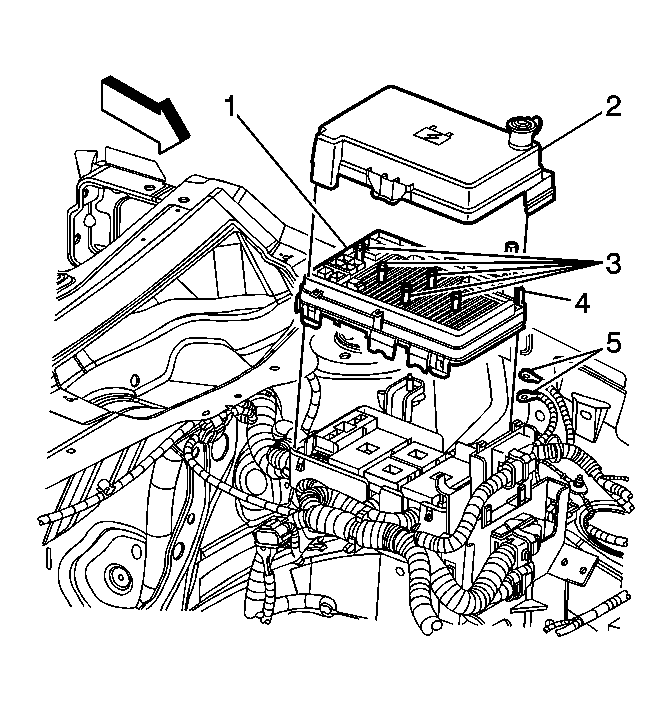

    Fig 1: Underhood Electrical Center
    GM1548078Courtesy of GENERAL MOTORS CORP.
  1. Remove the underhood electrical center cover (1).
  2. Remove the underhood electrical center mounting bolts (3).
  3. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
    4. Fig 2: View Of Battery & Cables
    GM1544743Courtesy of GENERAL MOTORS CORP.
  4. Remove the front end sheet metal diagonal brace. Refer to Front End Sheet Metal Diagonal Brace Replacement .
  5. Open the positive battery cable cover (5).
  6. Loosen the positive battery cable nut (3).
  7. Remove the positive battery cable from the battery.
    8. Fig 3: Removing/Installing Battery Retainer Bolt
    GM1544742Courtesy of GENERAL MOTORS CORP.
  8. Remove the battery hold down retainer bolt (3).
  9. Remove the battery hold down retainer (2).
    10. IMPORTANT: Do not tip the battery more than 40 degrees.
  10. Remove the battery (1).
