Front Seat Adjuster Replacement

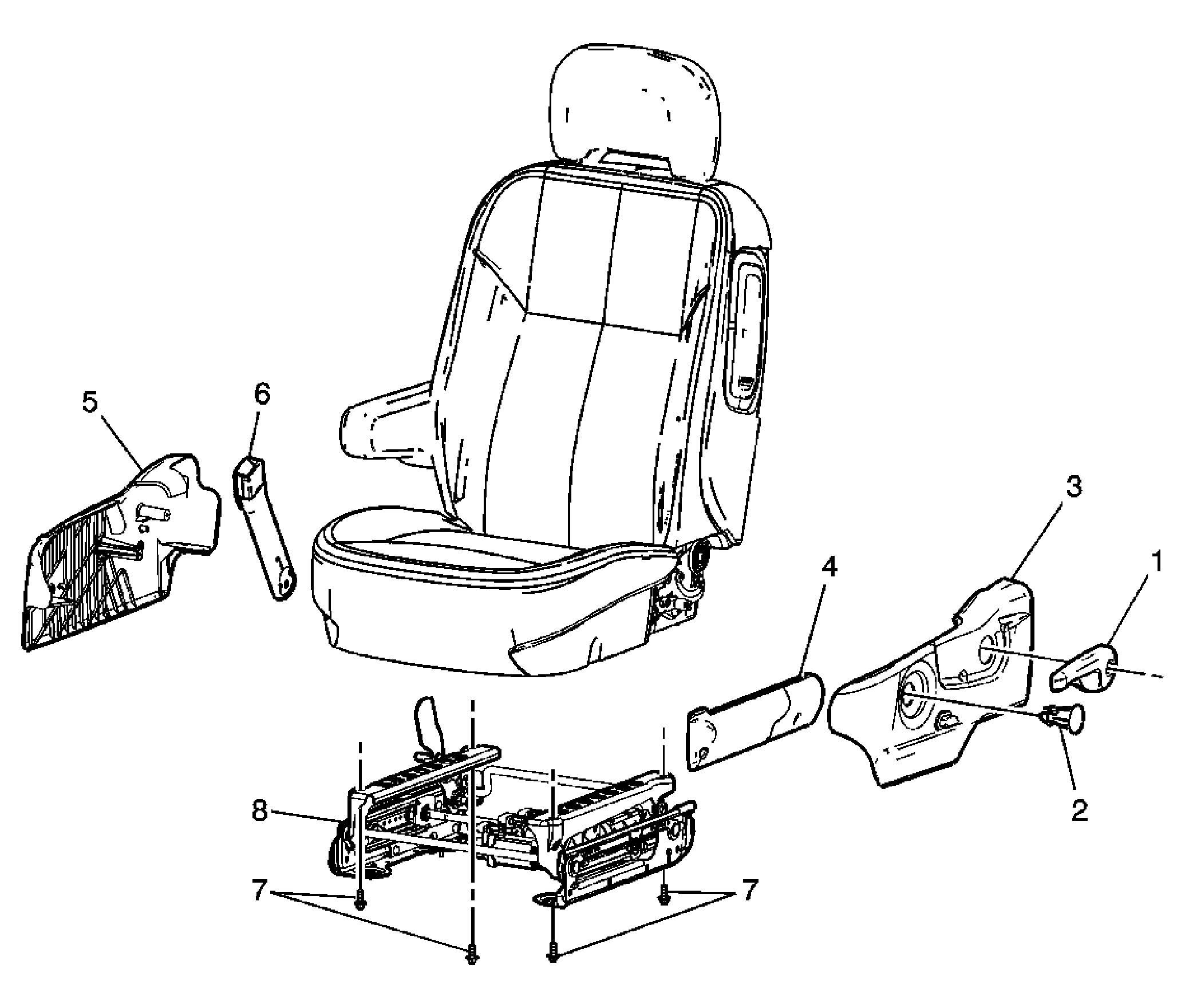

Fig 1: View Of Front Seat Adjuster (Power)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the seat from the vehicle. Refer to Front Seat Replacement - Bucket . Remove the front seat storage tray, if equipped. Refer to Front Seat Storage Tray Replacement .
1	Seat Recliner Handle Refer to Seat Back Recliner Handle Replacement - Front .
2	Seat Recliner Lever Knob Hole Plug
3	Seat Cushion Outer Finish Panel Refer to Front Seat Adjuster Track Finish Cover Replacement .
4	Seat Outer Adjuster Finish Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
5	Seat Cushion Inner Finish Panel Refer to Front Seat Adjuster Track Finish Cover Replacement .
6	Seat Belt Buckle Refer to Front Seat Belt Buckle Replacement .
7	Seat Adjuster Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 32 N.m (24 lb ft)
8	Seat Adjuster Assembly Tip: Disconnect the electrical connectors. For the passenger seat, re-zero the inflatable restraint passenger presence system. Refer to Passenger Presence System Programming and Setup .
