Removal Procedure

  1. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .

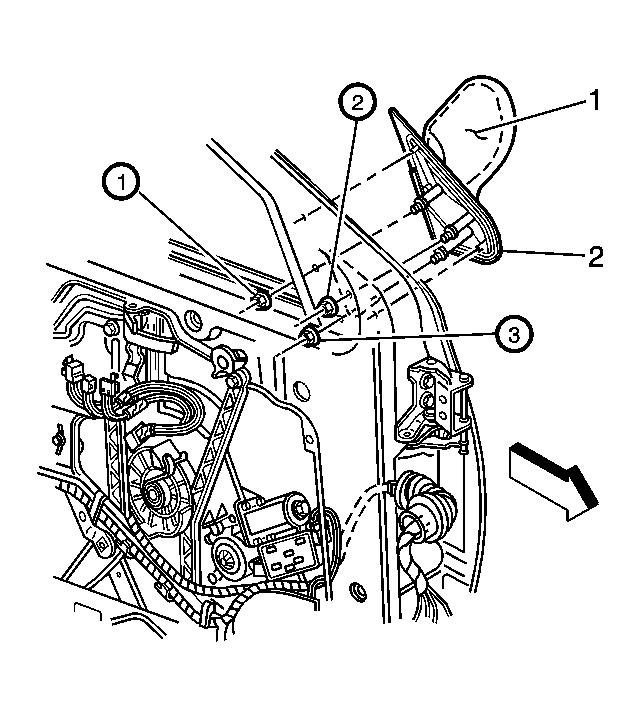

    2. Fig 1: Removing/Installing Manual Mirror
    GM1547058Courtesy of GENERAL MOTORS CORP.
  2. Remove the outside rearview mirror nuts from the inside door.
  3. Remove the outside rearview mirror (1) from the front door and the seal (2).
