Liftgate Pull Strap Replacement

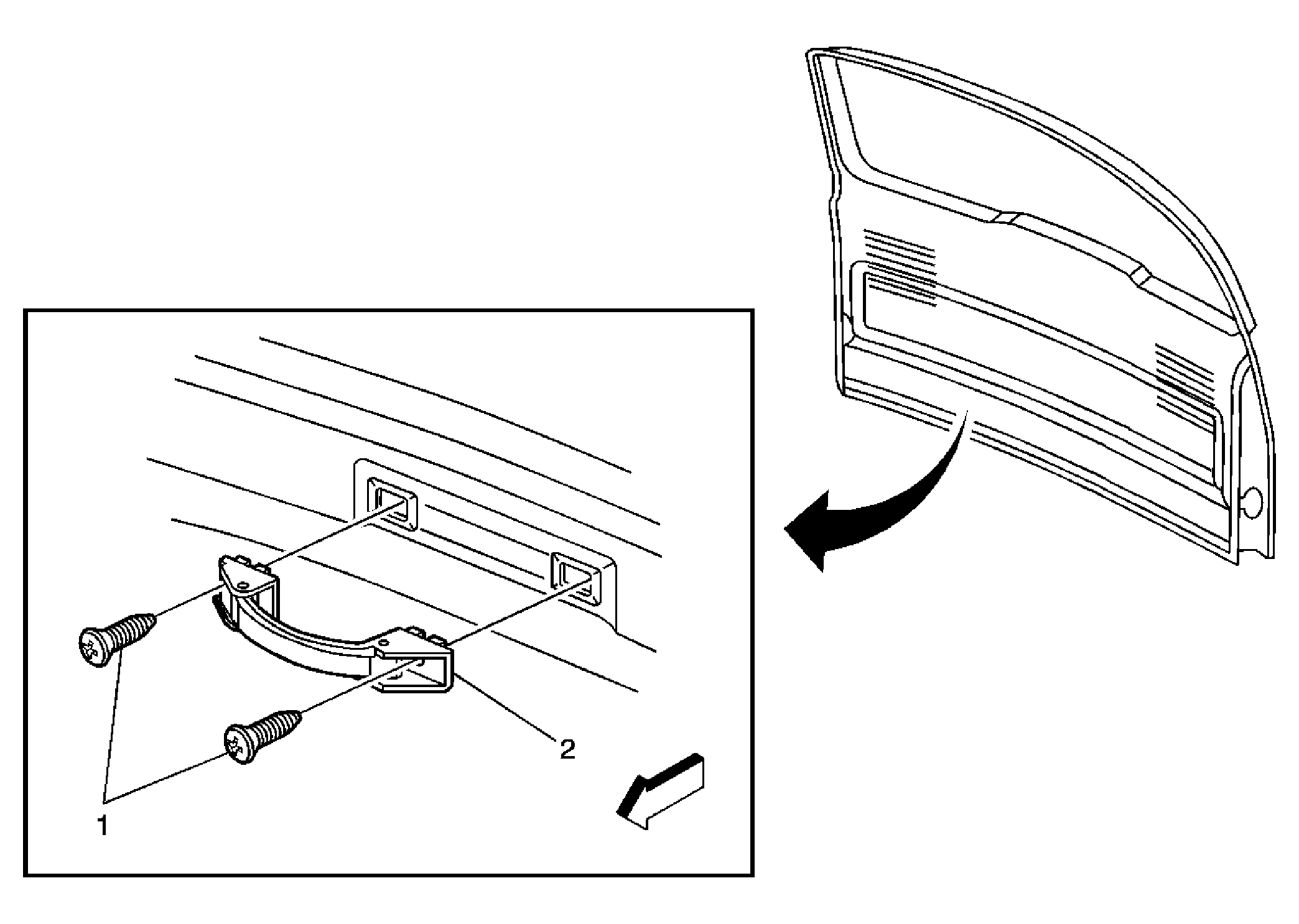

Fig 1: Replacing Liftgate Pull Strap

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screws, Pull Handle Assembly (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Handle Assembly, Liftgate Pull Handle
