Installation Procedure

  1. Position the ALC sensor and bracket (2) to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the height sensor bolts/screws.

    Tighten:  Tighten the height sensor bolts/screws to 12 N.m (106 lb in).

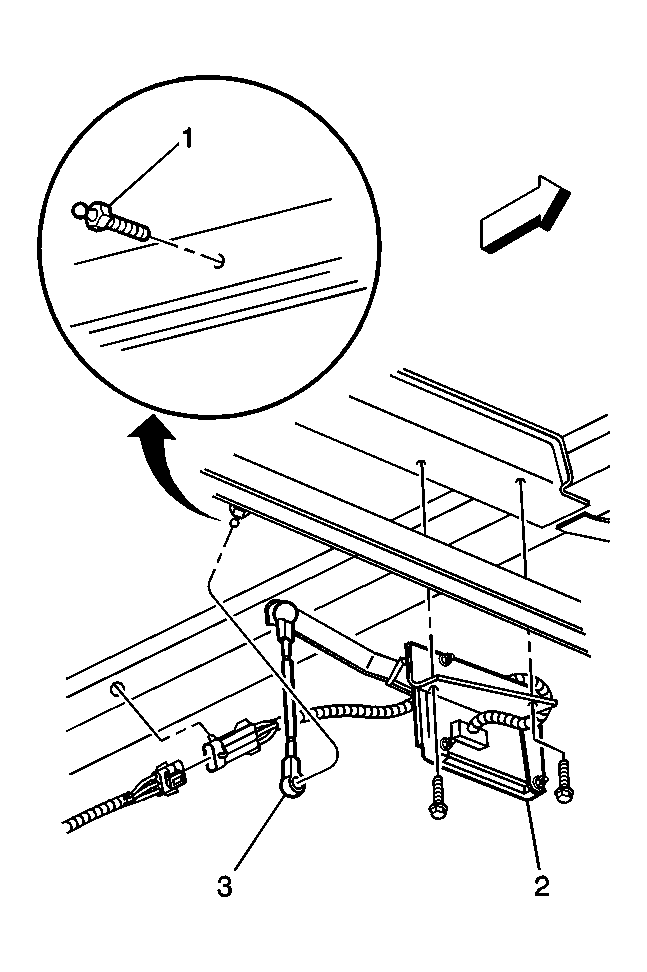

    3. Fig 1: View Of ALC Sensor Bracket Bolts/Screws
    GM343463Courtesy of GENERAL MOTORS CORP.
  3. Install the ALC sensor link (3) to the ball stud (1).
  4. Install the ALC sensor connector.
  5. Lower the vehicle.
  6. Install the ELC/TRAILER fuse.
