Installation Procedure

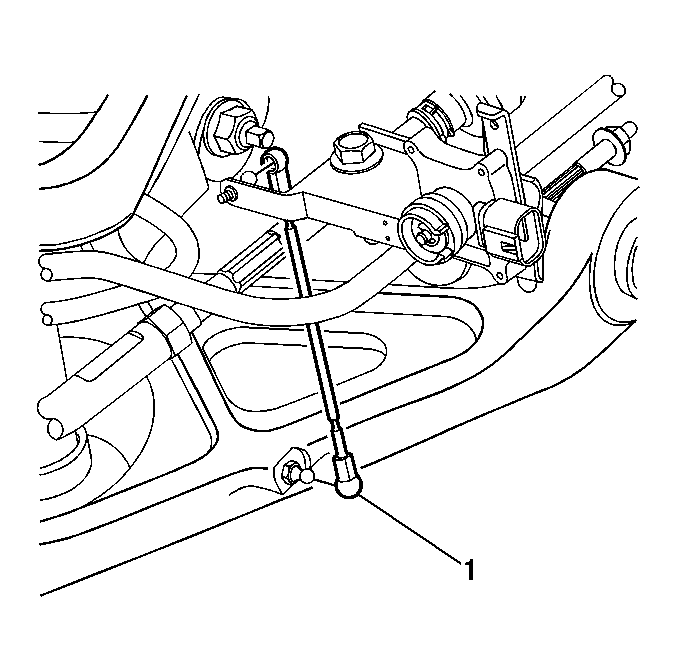

    Fig 1: View Of ELC Sensor Link
    GM1708469Courtesy of GENERAL MOTORS CORP.
  1. Position the ELC sensor link (1) to the ball studs on the sensor and control arm.
  2. Press the ELC sensor link ends onto the ball studs until fully seated.
  3. Lower the vehicle.
