Installation Procedure

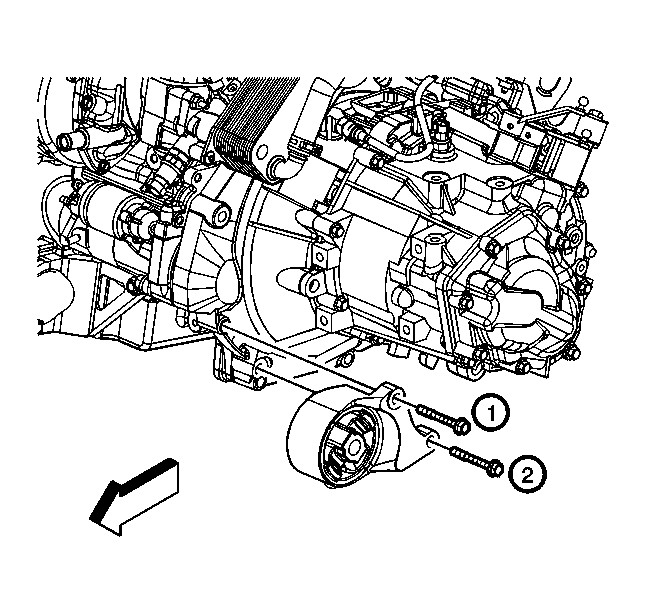

    Fig 1: View Of Front Transaxle Mount-To-Transaxle Bolts
    GM1376115Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the front transaxle mount to the transaxle bolts, and tighten in sequence.

    Tighten:  Tighten the bolts to 90 N.m (66 lb ft).

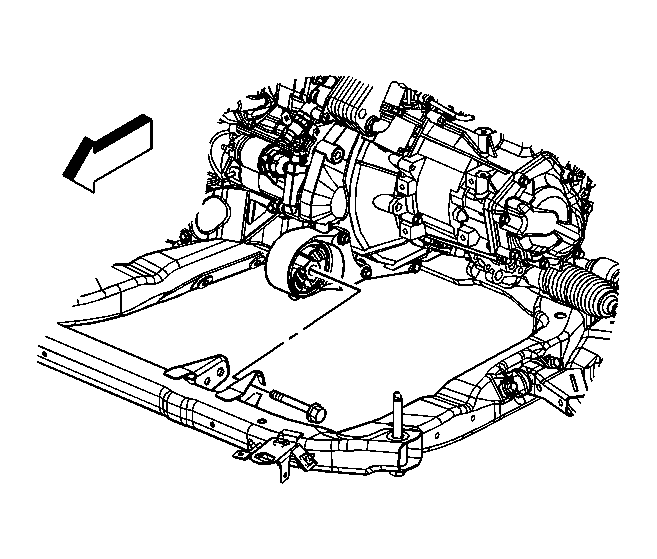

    2. Fig 2: View Of Front Transmission Mount Through Bolt
    GM1376073Courtesy of GENERAL MOTORS CORP.
  2. Hand start the front transaxle mount through bolt.
    3. IMPORTANT: The front and rear transaxle mounts must be allowed to settle with the through bolts loosened.
  3. Loosen the rear transaxle mount through bolt.
  4. Tighten the transaxle mount through bolts in the following order:

    Tighten:

    1. Tighten the rear bolt to 100 N.m (74 lb ft).
    2. Tighten the front bolt to 100 N.m (74 lb ft).

  5. Lower the vehicle.
