DTC C0475: Notes

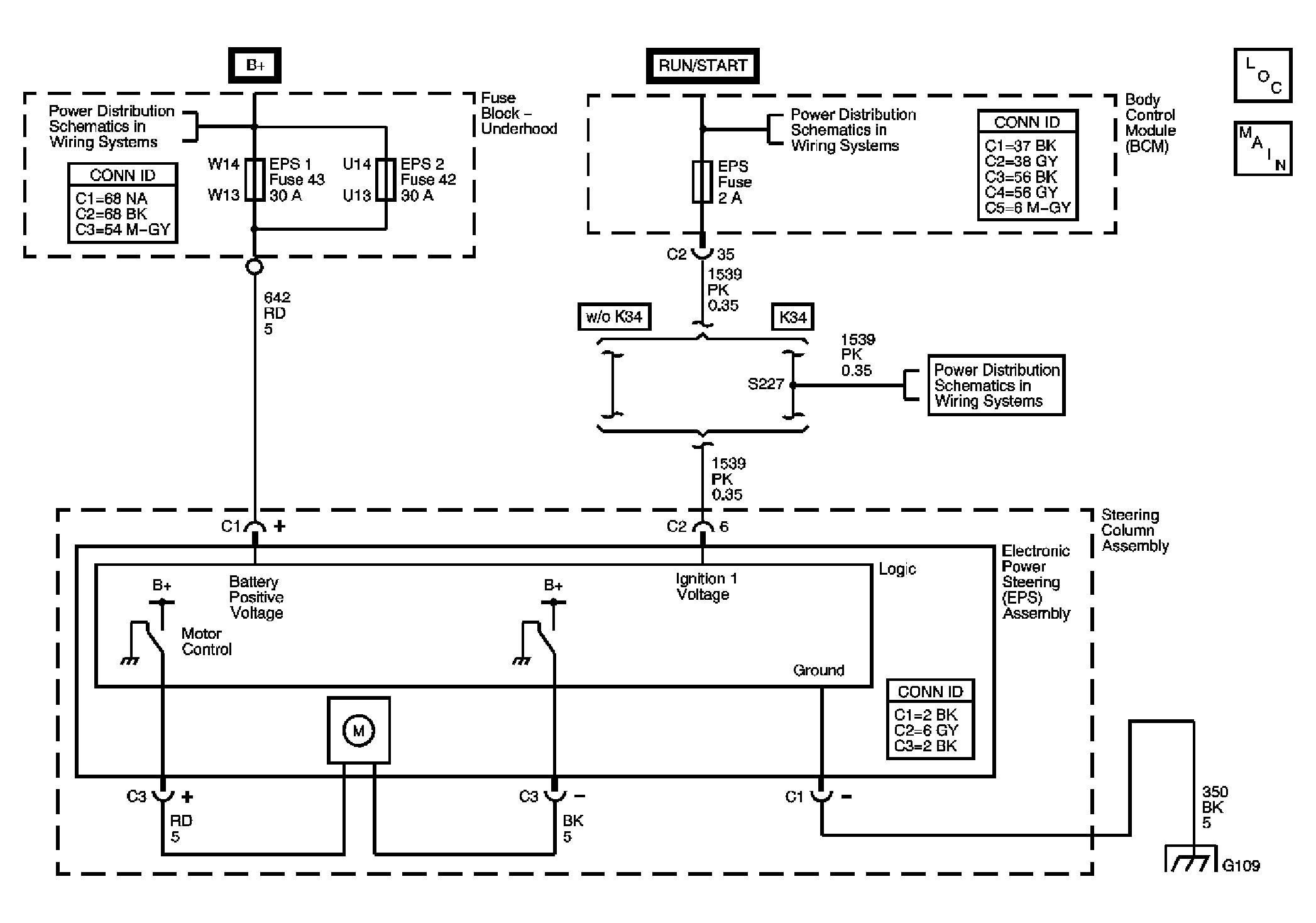

Fig 1: Power Steering Control Module (PSCM) Circuit

GM879518

Courtesy of GENERAL MOTORS CORP.
