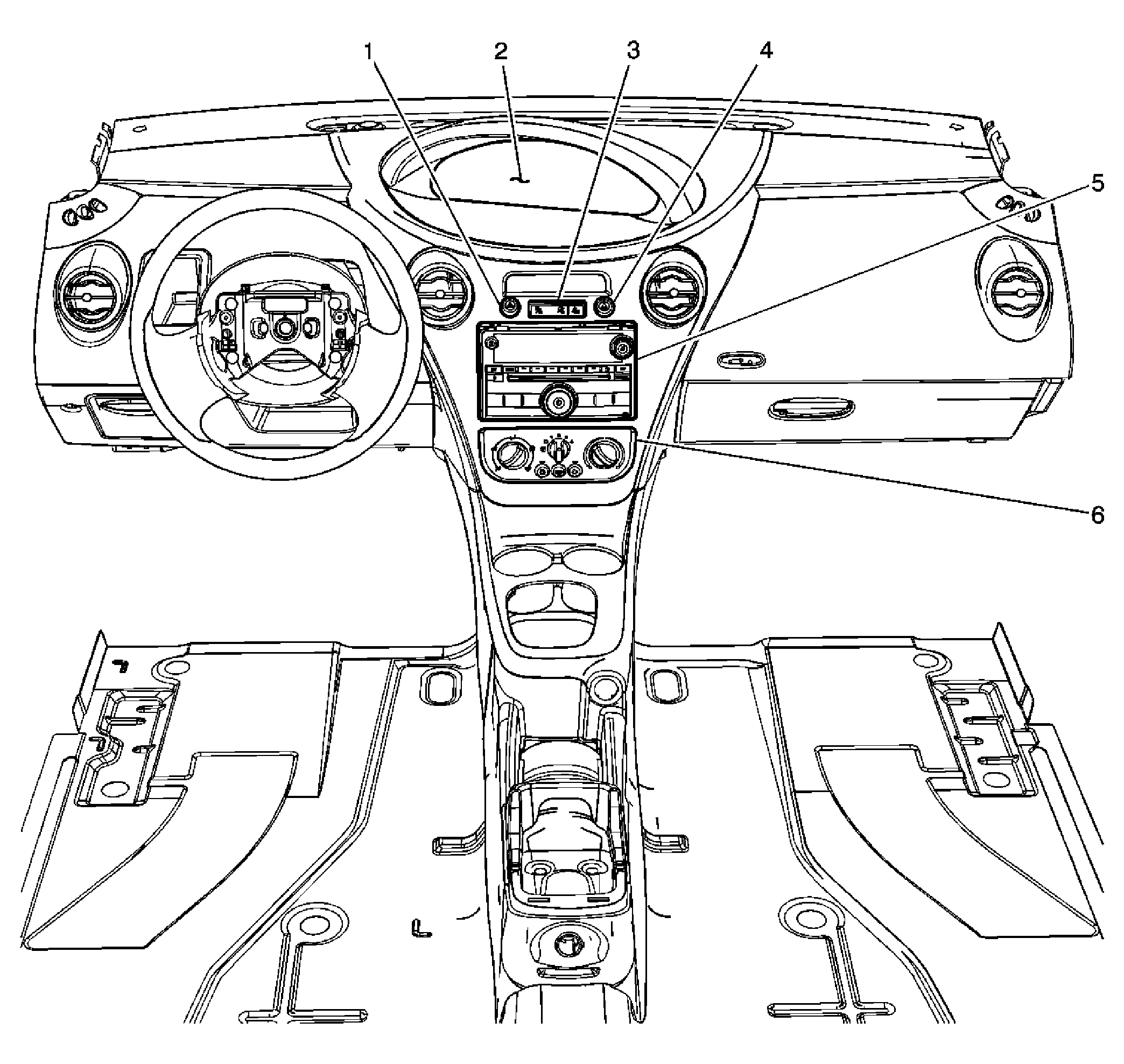

SIR Component Views

Fig 1: I/P Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Instrument Panel Cluster (IPC)
3	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
4	Traction Control Switch
5	Radio
6	HVAC Control Assembly

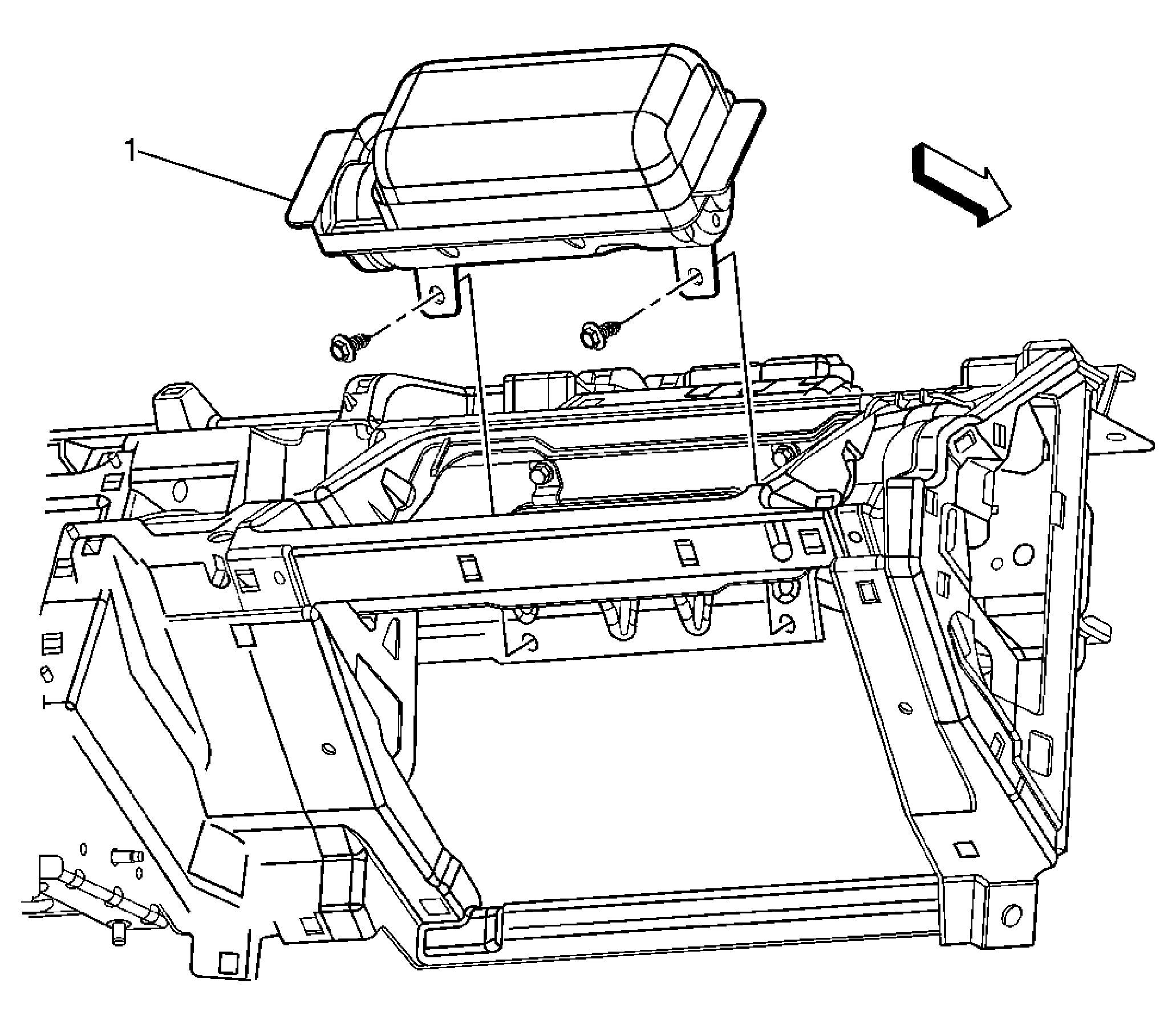

Fig 2: Right Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module

Fig 3: Steering Wheel Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Steering Wheel Controls - Right (K34)
3	Inflatable Restraint Steering Wheel Module
4	Steering Wheel Controls - Left (K34)

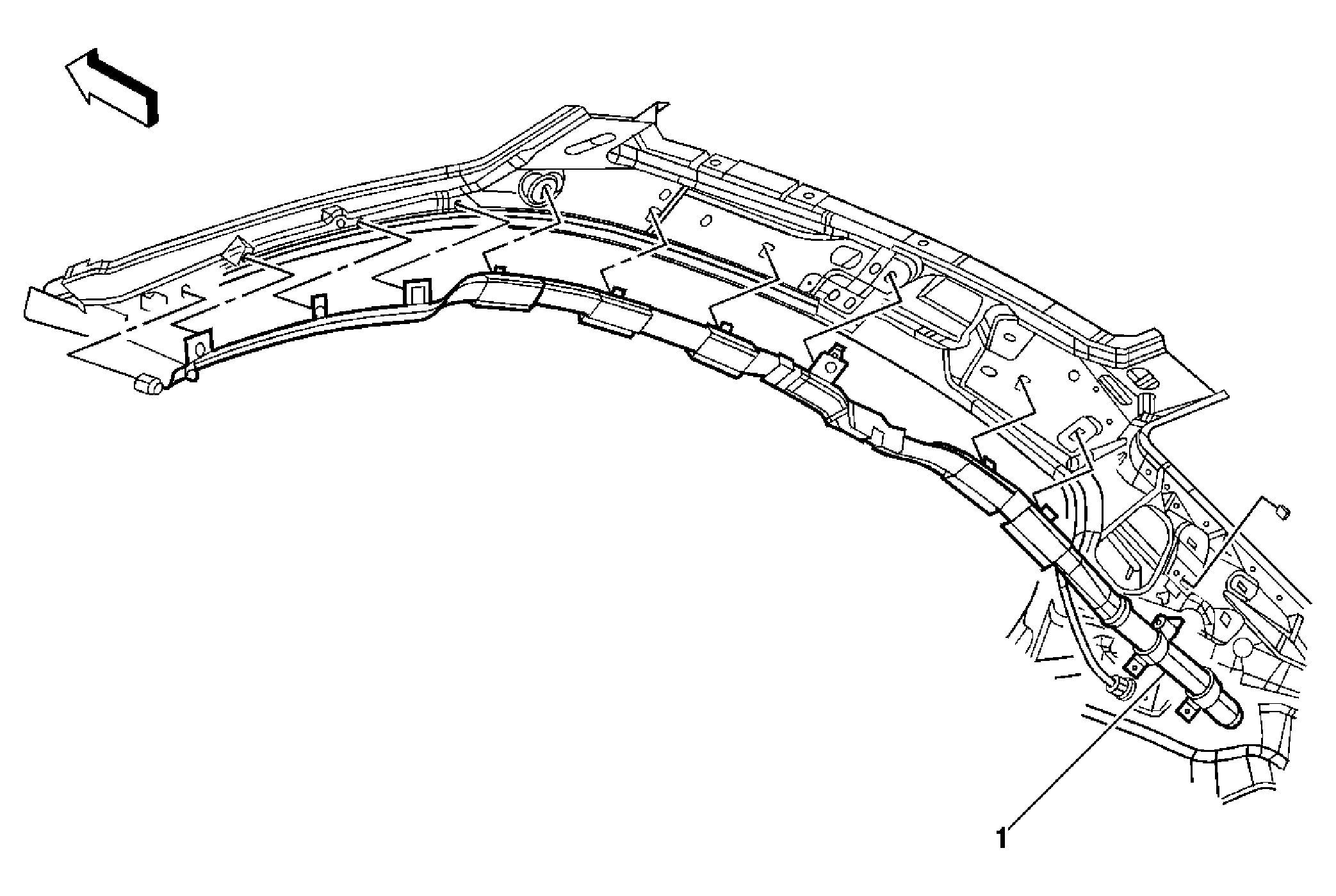

Fig 4: Right Front Of Roof Rail (ASF) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right (Left Similar)

Fig 5: Right Front Seat of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C300 Passenger Presence System (PPS) Jumper Harness to I/P Harness
2	Passenger Presence System (PPS) Jumper Harness
3	Inflatable Restraint Front Passenger Presence System (PPS) Module
4	I/P Harness
5	Seat Belt Switch - Passenger
6	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
7	Seat Belt Buckle - Passenger
8	Passenger Seat

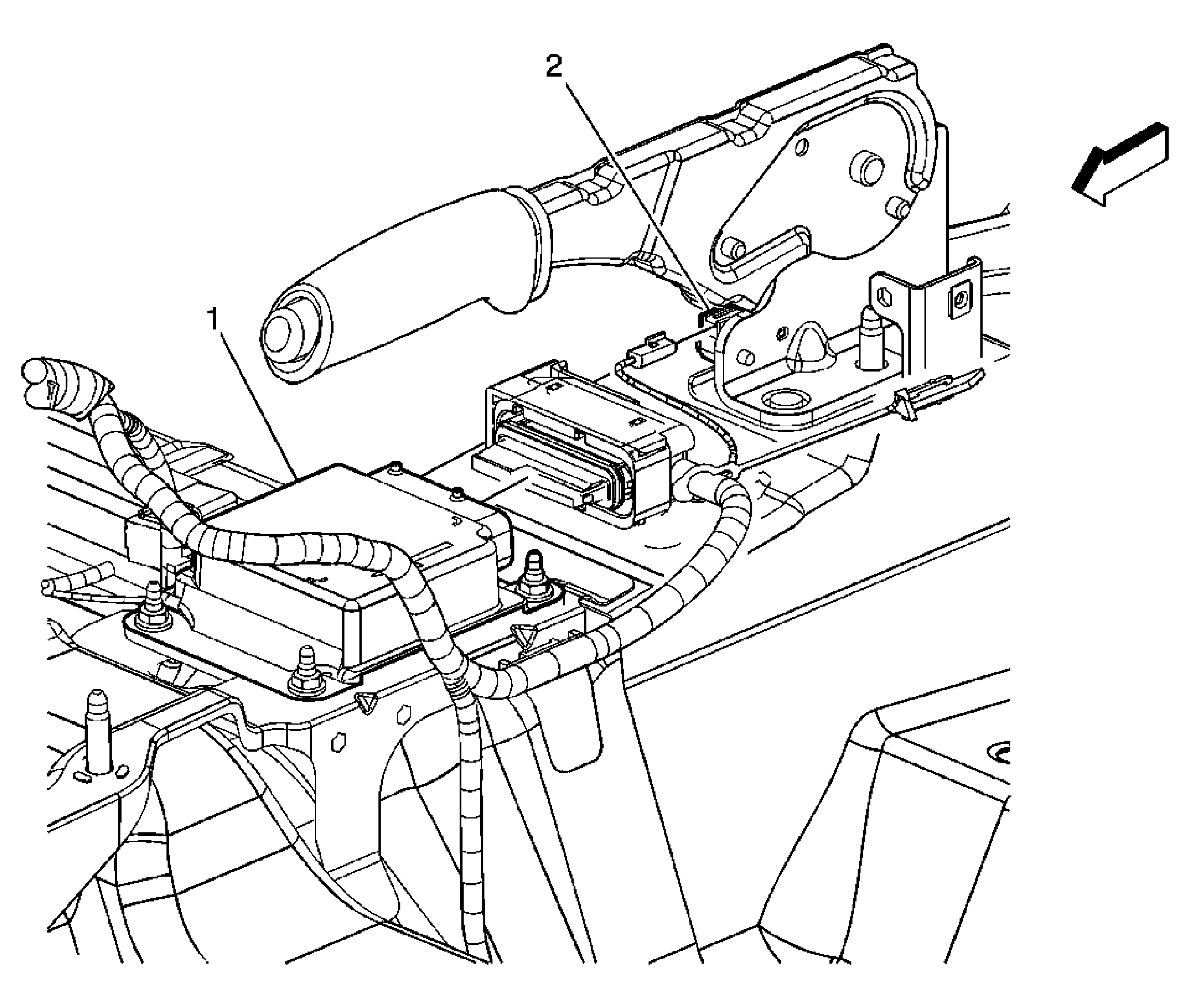

Fig 6: Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Park Brake Switch

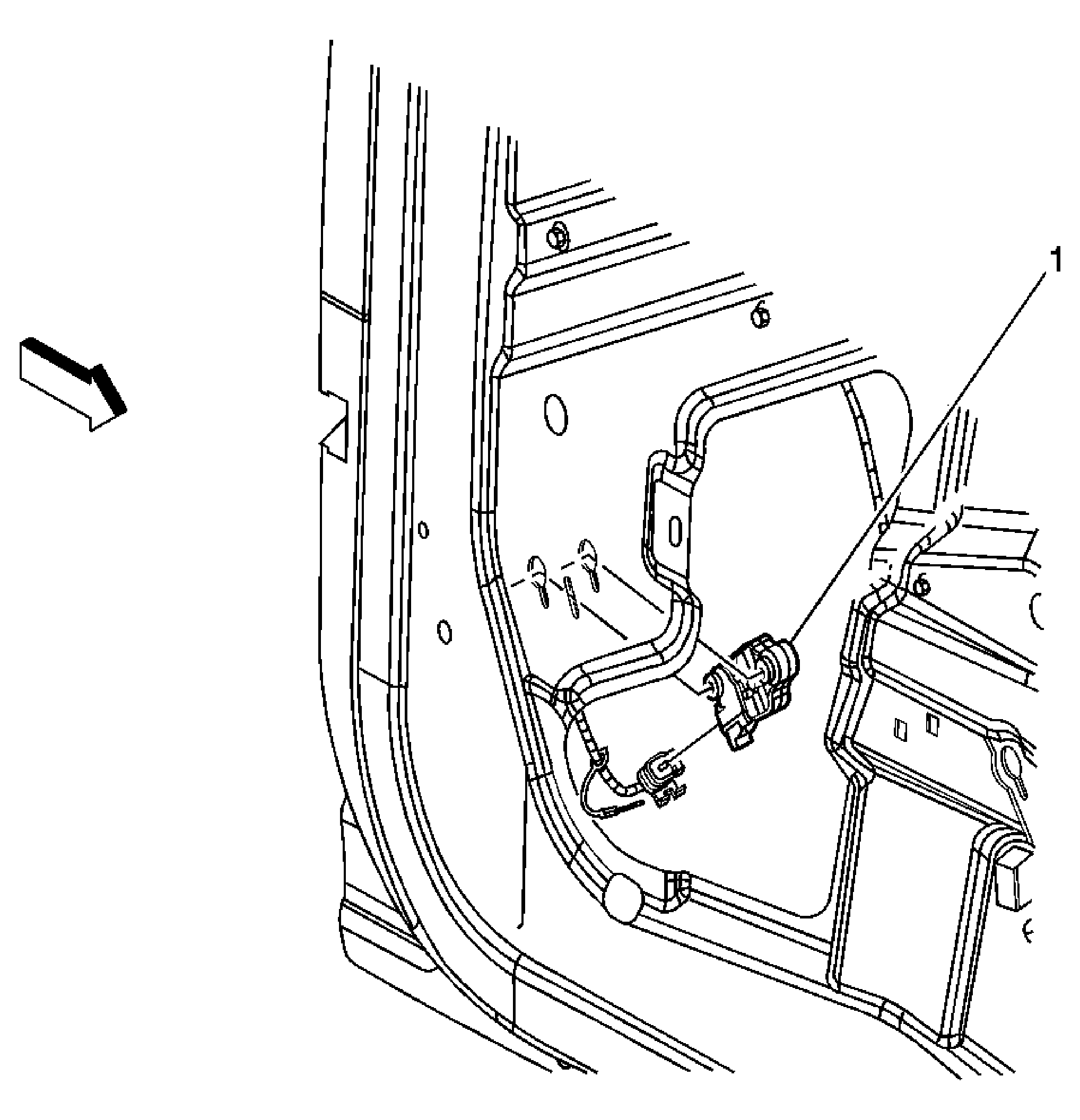

Fig 7: Left Front Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor (SIS) - Left (Right Similar)

Fig 8: Under Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Lock Cylinder Control Actuator (MN5)
3	Power Steering Control Module (PSCM)
4	Ignition Switch

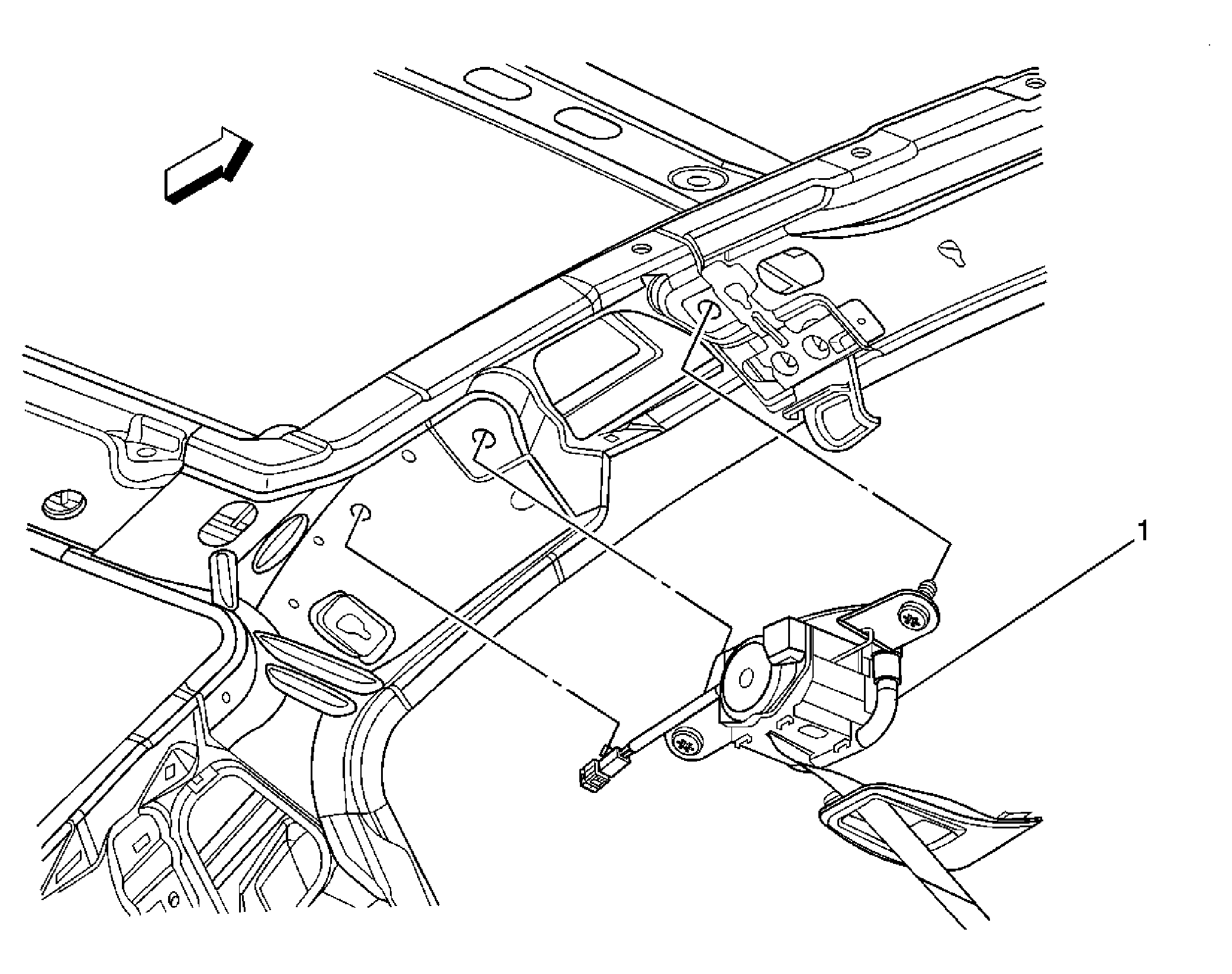

Fig 9: Right Front Side Of Vehicle In B Component View - Pillar (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - RF (LF Similar)

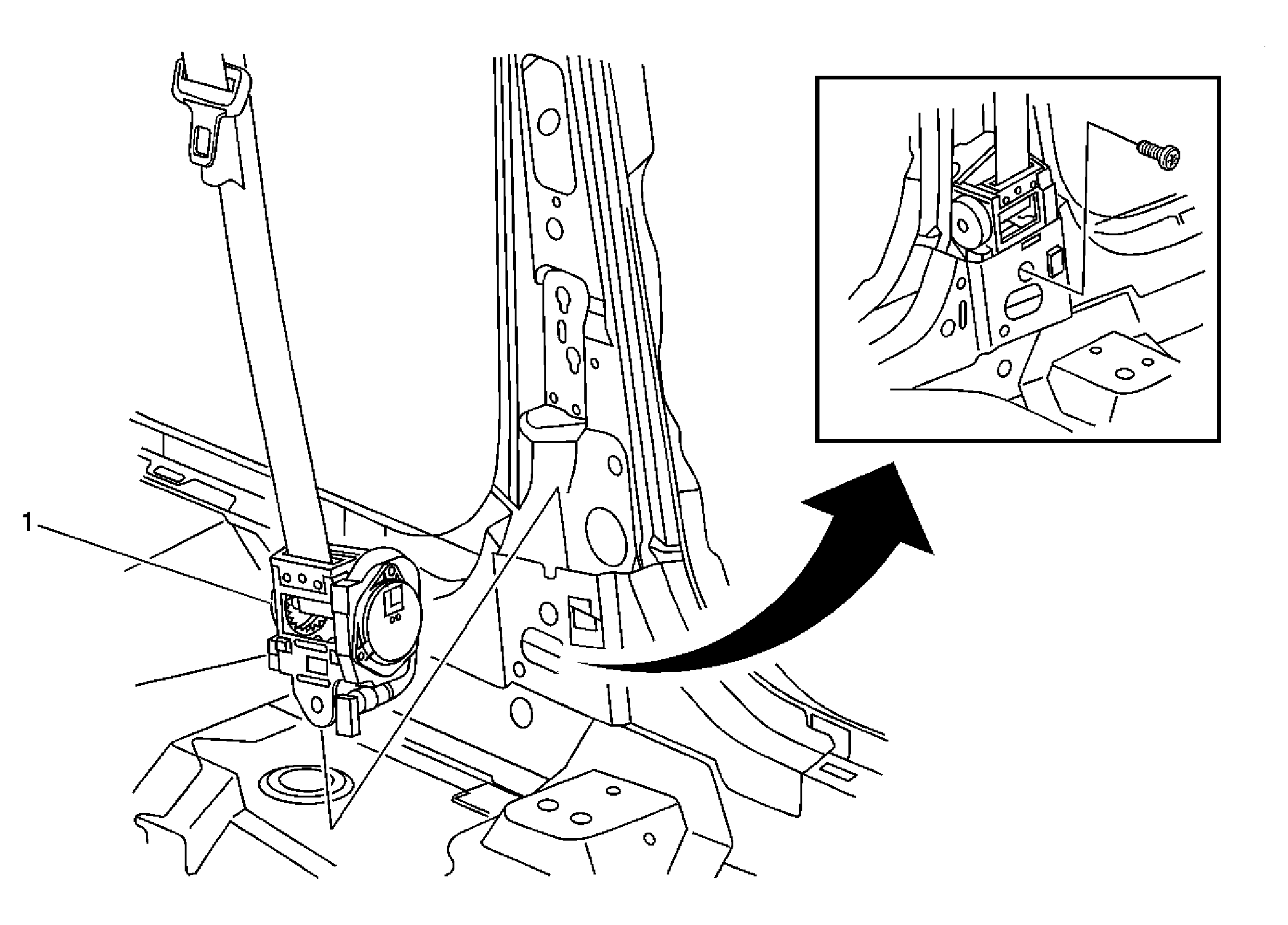

Fig 10: Right Center Of Passenger Compartment Component View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - LF (RF Similar)
