Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the windshield garnish molding in the vehicle. Install the molding by pushing the molding over the clip locations.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screw to the windshield garnish molding.

    Tighten:  Tighten the screw to 2.3 N.m (21 lb in).

  3. Install the fastener trim cover.
  4. Replace the door seal over the trim edge.

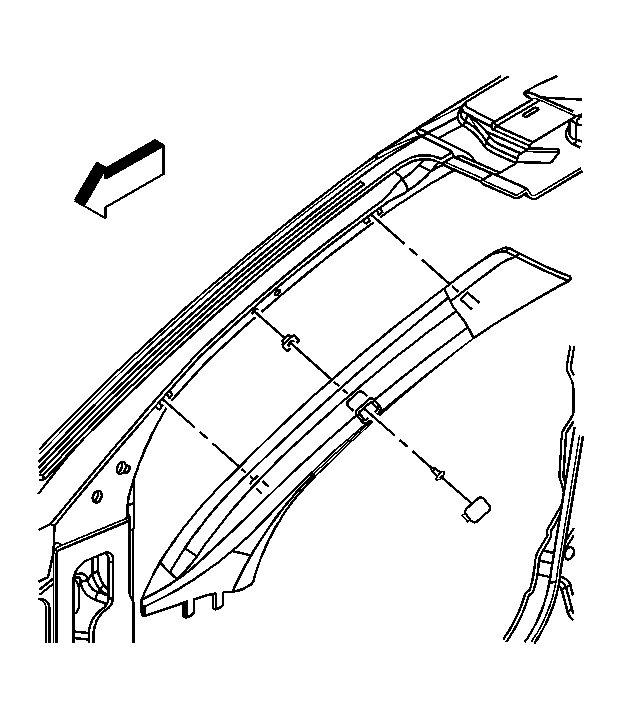

    5. Fig 1: View Of Windshield Garnish Molding
    GM888378Courtesy of GENERAL MOTORS CORP.
