Power and Grounding Component Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Body Rear End Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery

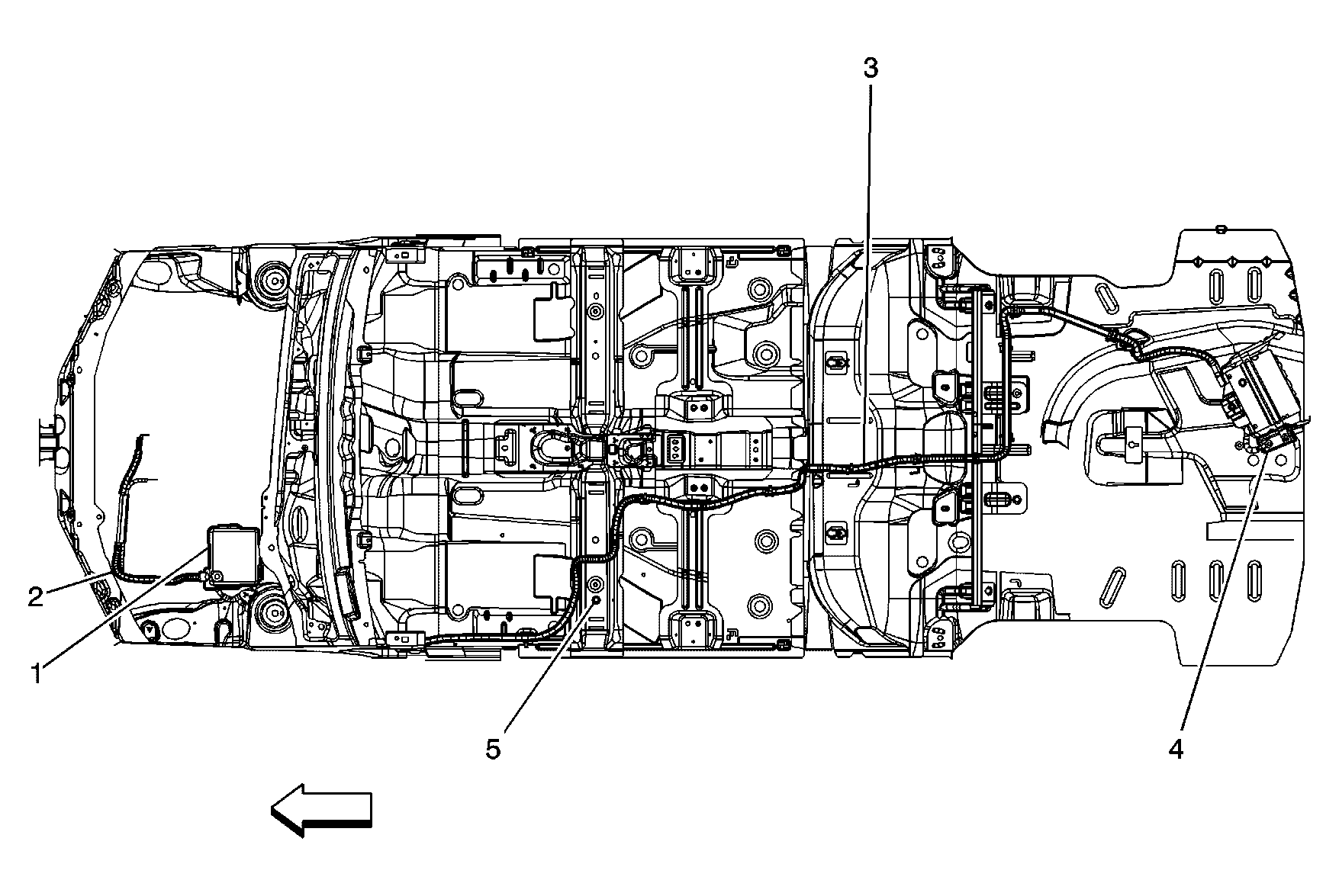

Fig 2: Battery Cable Routing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	G103
3	Battery Cable - Positive
4	G502
5	G301

Fig 3: Lower Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)

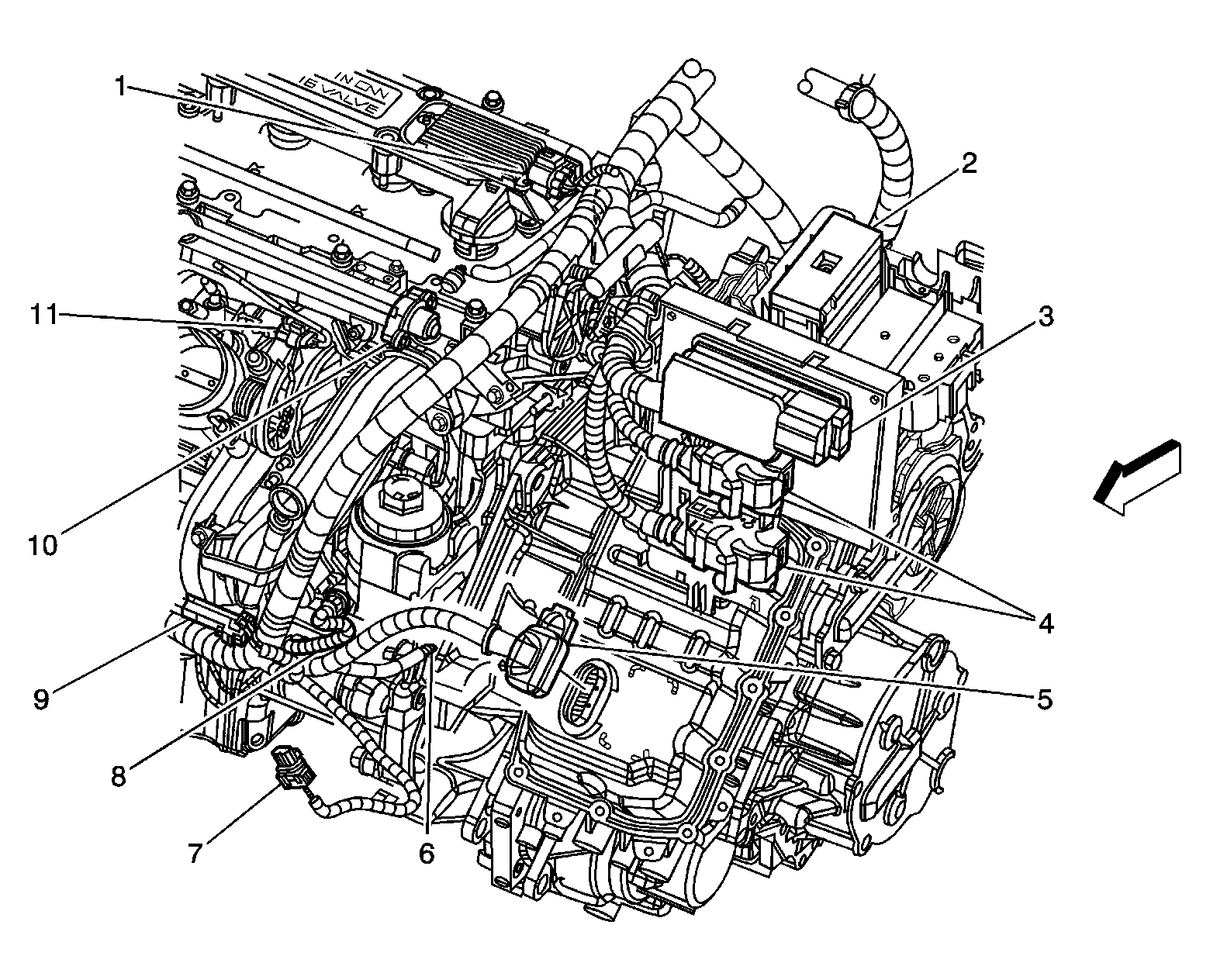

Fig 4: Front Left Side Of Engine (M75) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Control Module (ICM)
2	Fuse Block Under Hood (FBUH)
3	Engine Control Module (ECM)
4	Transmission Control Module (TCM)
5	C100
6	G105
7	Engine Oil Pressure Switch
8	Crank Shaft Position Sensor
9	Knock Sensor (KS)
10	Fuel Injectors Rail
11	Manifold Absolute Pressure (MAP) Sensor

Fig 5: Under Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Lock Cylinder Control Actuator (M43/M75)
3	Power Steering Control Module (PSCM)
4	Ignition Switch

Fig 6: Rear Shelf Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR
3	G401/SP401
4	G403/SP403

Fig 7: Left Side Of Engine Compartment (JM4/JL9) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C161
2	G109
3	Body Harness

Fig 8: Behind Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C225
2	G201
3	G203

Fig 9: Left Side Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C121 (DF5)
2	G101/SP101
3	Electronic Brake Control Module (EBCM) (JM4/JL9)
4	Engine Control Module (ECM)
