Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, position the hood to the hinges.
  2. Align the hood hinges to the alignment marks on the hood.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts that secure the hinge to the hood.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

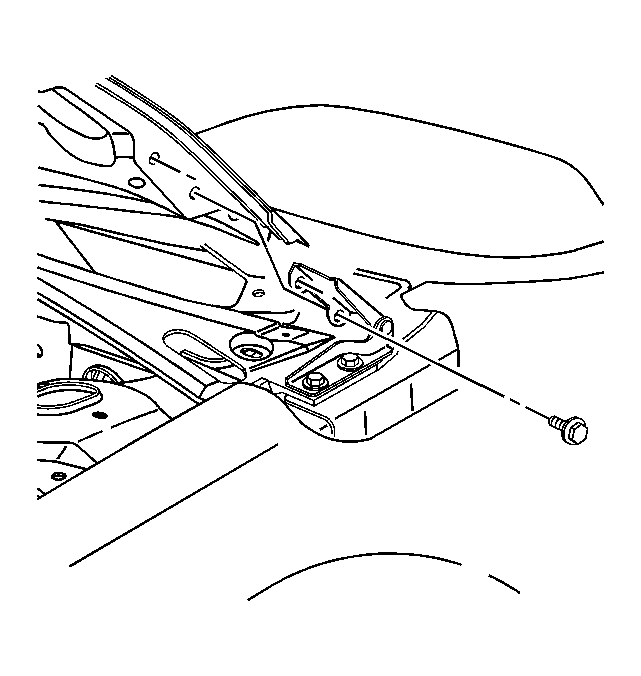

    4. Fig 1: View Of Hood Hinge To Hood Bolt
    GM867790Courtesy of GENERAL MOTORS CORP.
  4. Install the hood insulator, if equipped. Refer to Hood Insulator Replacement .
  5. Adjust the hood. Refer to Hood Adjustment .
  6. Remove the protective covering from the fenders.
  7. Remove the support and close the hood.
