Data Communication Schematics

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power, Ground, Low Speed GMLAN
GM1785344Courtesy of GENERAL MOTORS CORP.

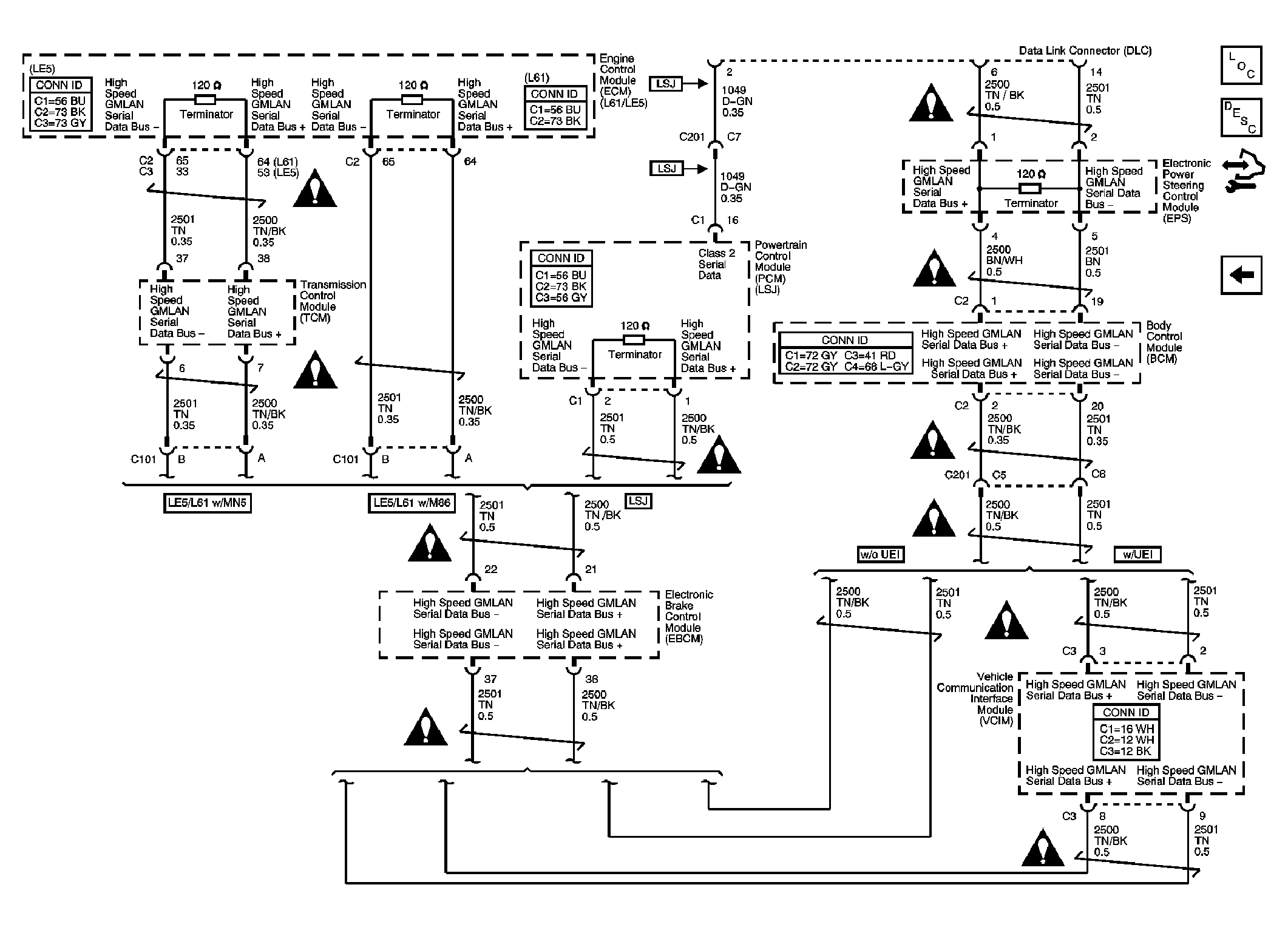

Fig 2: High Speed GMLAN
GM1785357Courtesy of GENERAL MOTORS CORP.
