Body Control System Schematics

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

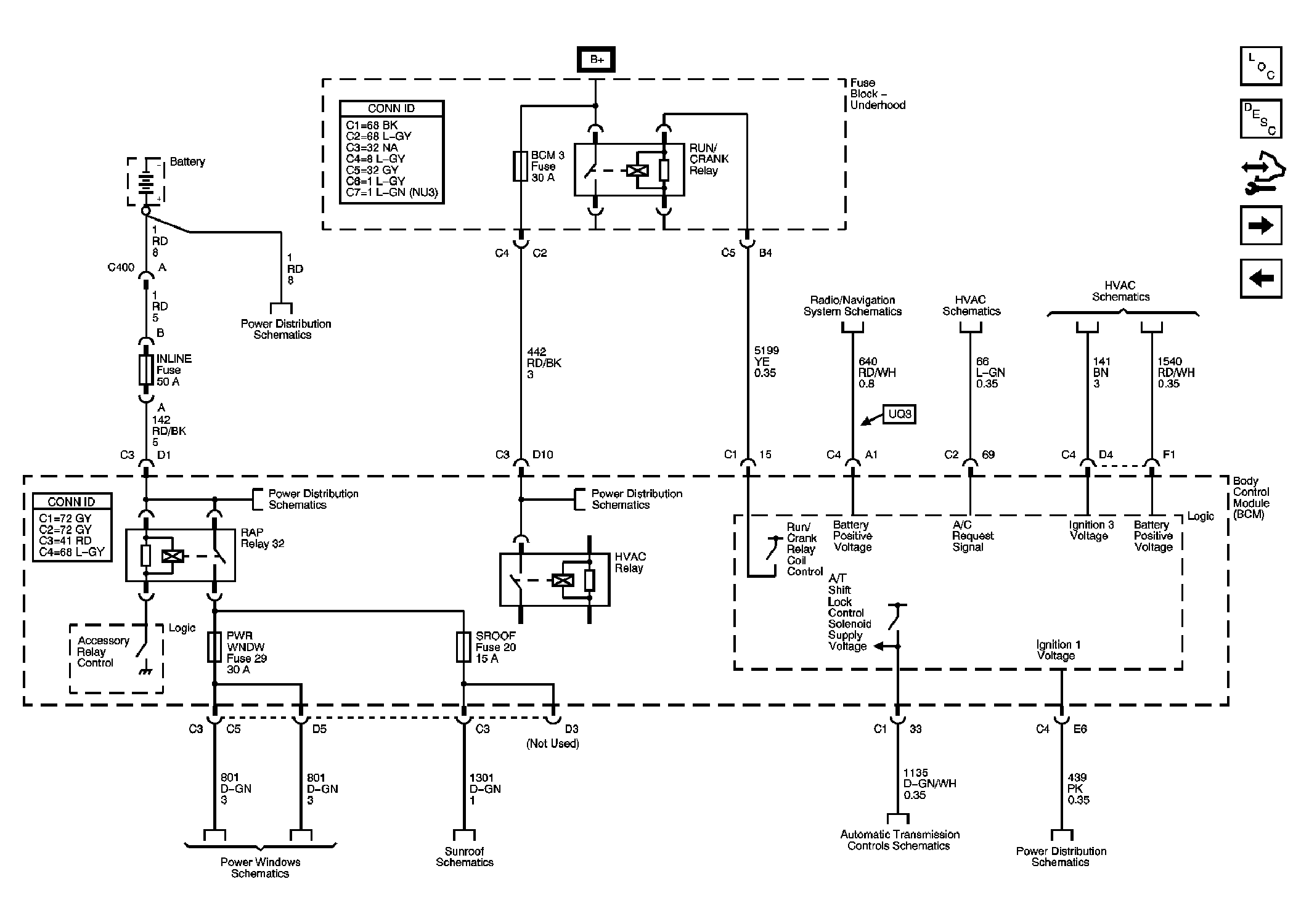

Fig 1: Power, Ground, Communication, Controlled/Monitored Subsystem References (1 of 5)

Courtesy of GENERAL MOTORS CORP.

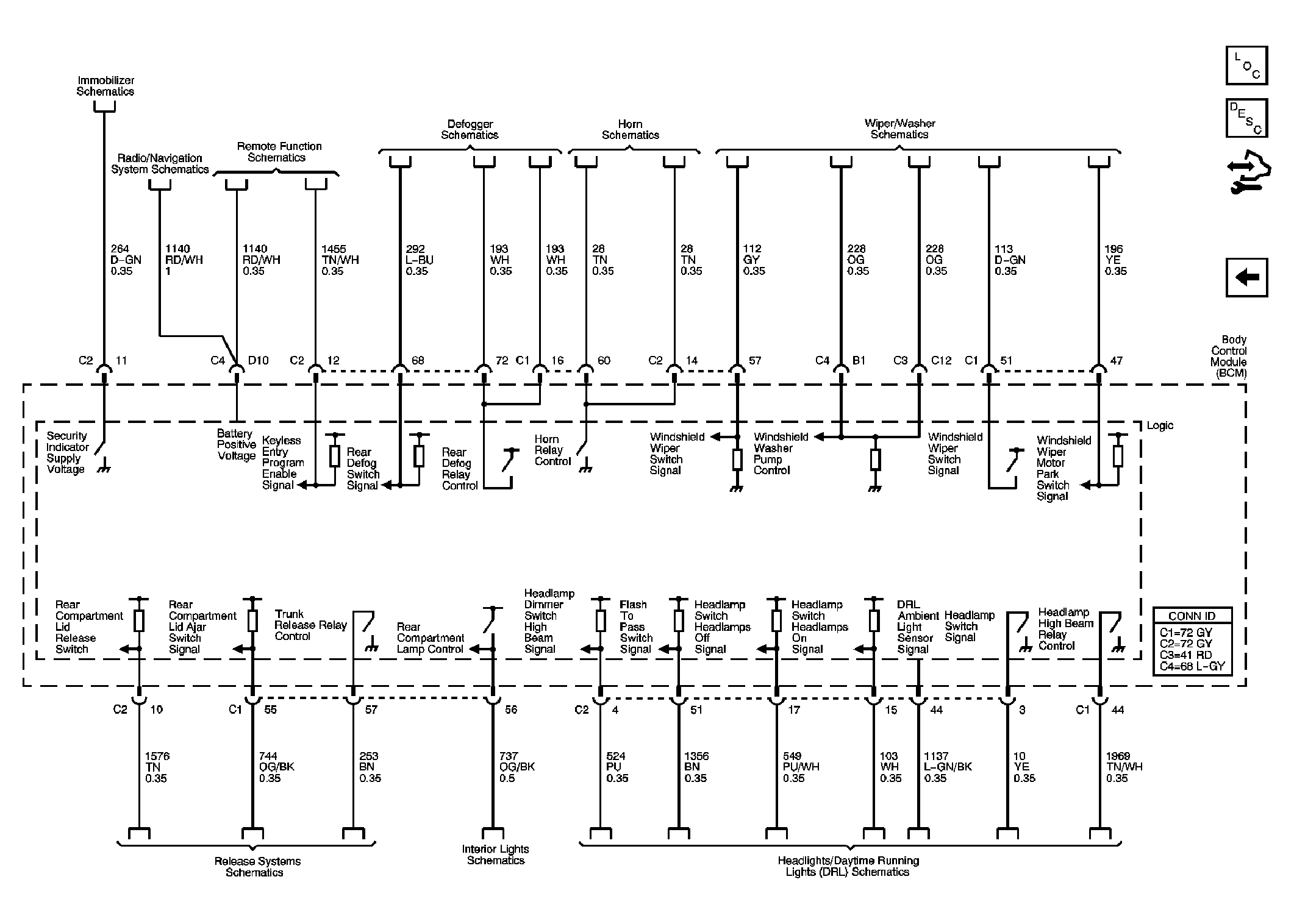

Fig 2: Controlled/Monitored Subsystem References (2 of 5)

Courtesy of GENERAL MOTORS CORP.

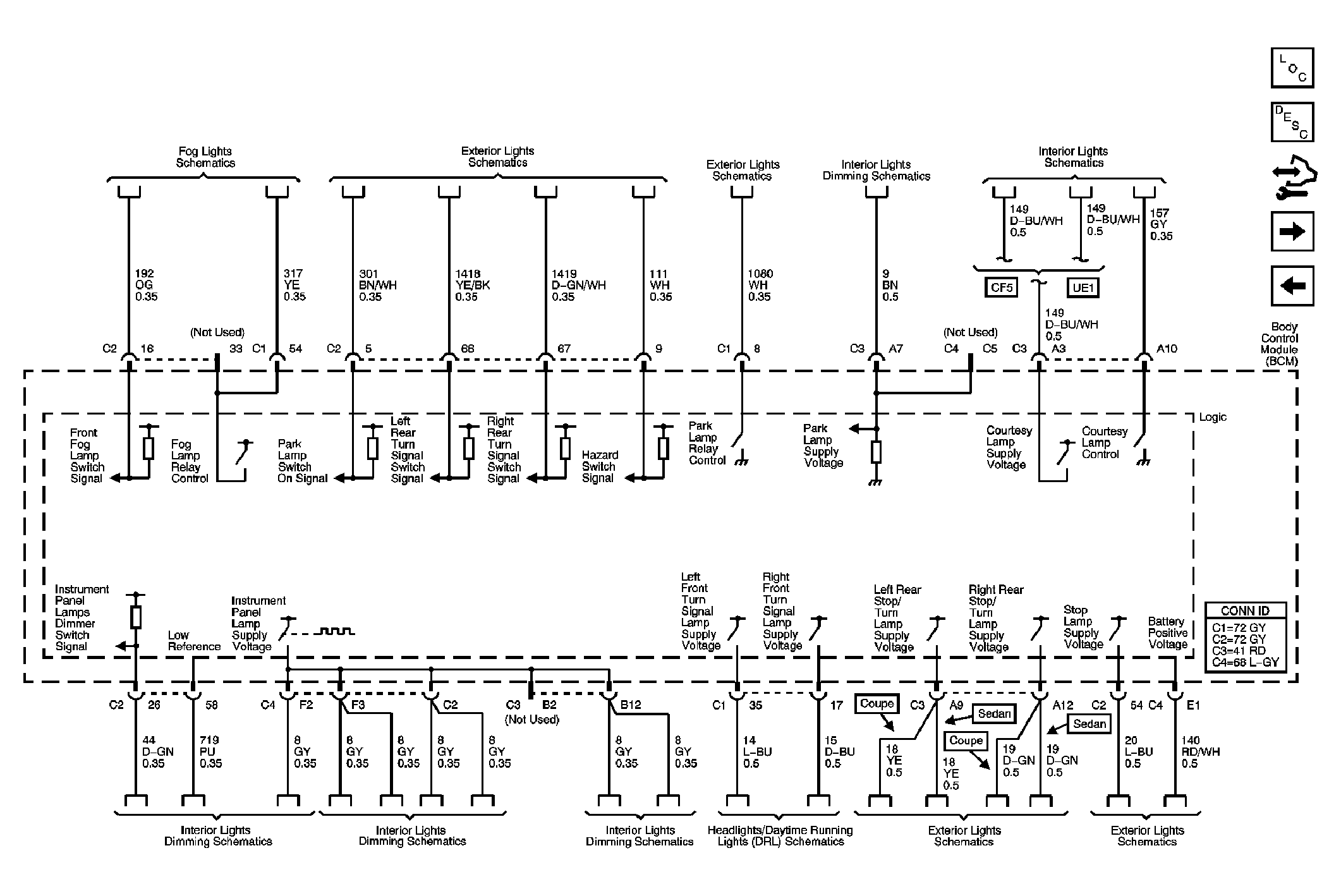

Fig 3: Controlled/Monitored Subsystem References (3 of 5)

Courtesy of GENERAL MOTORS CORP.

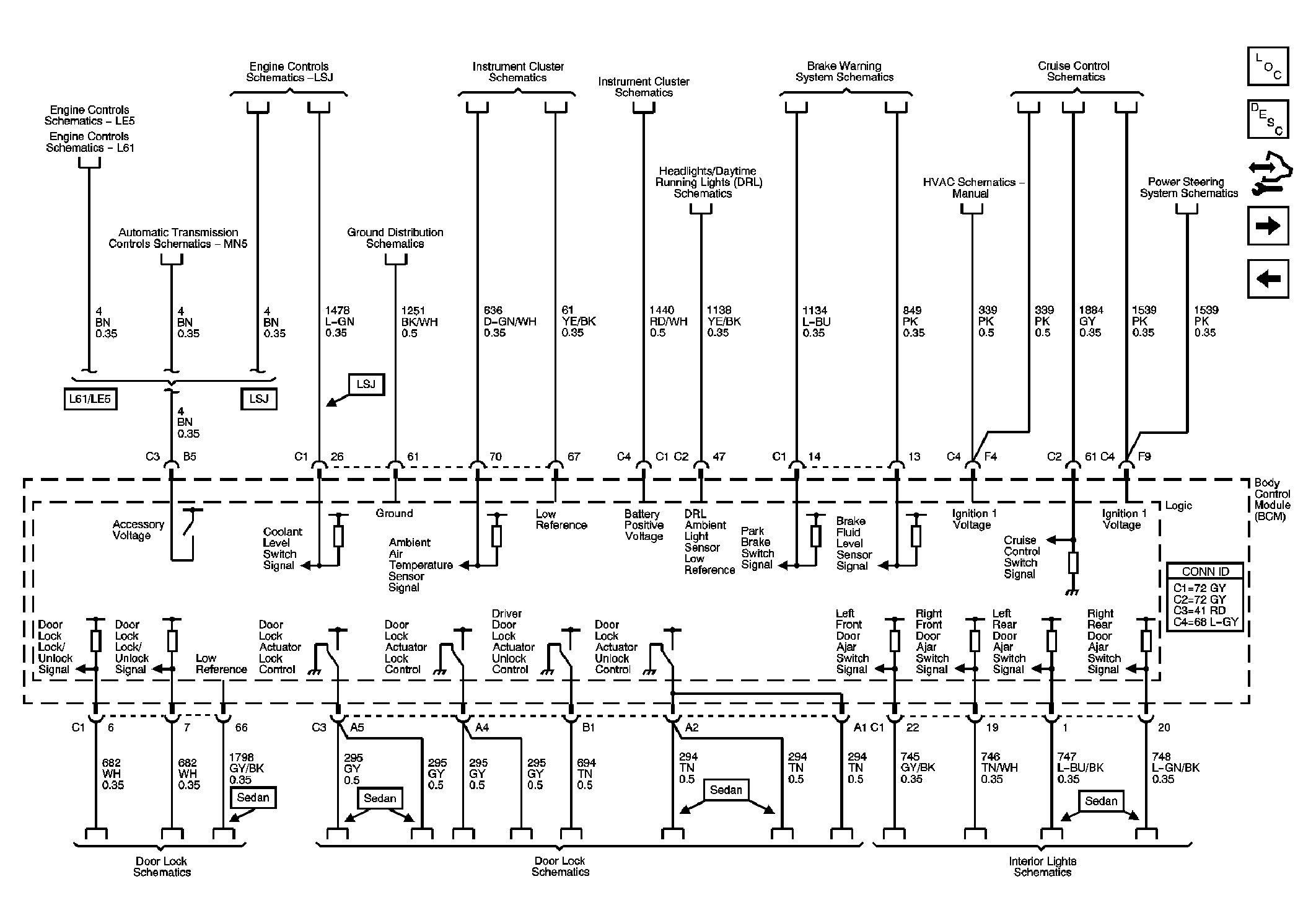

Fig 4: Controlled/Monitored Subsystem References (4 of 5)

Courtesy of GENERAL MOTORS CORP.

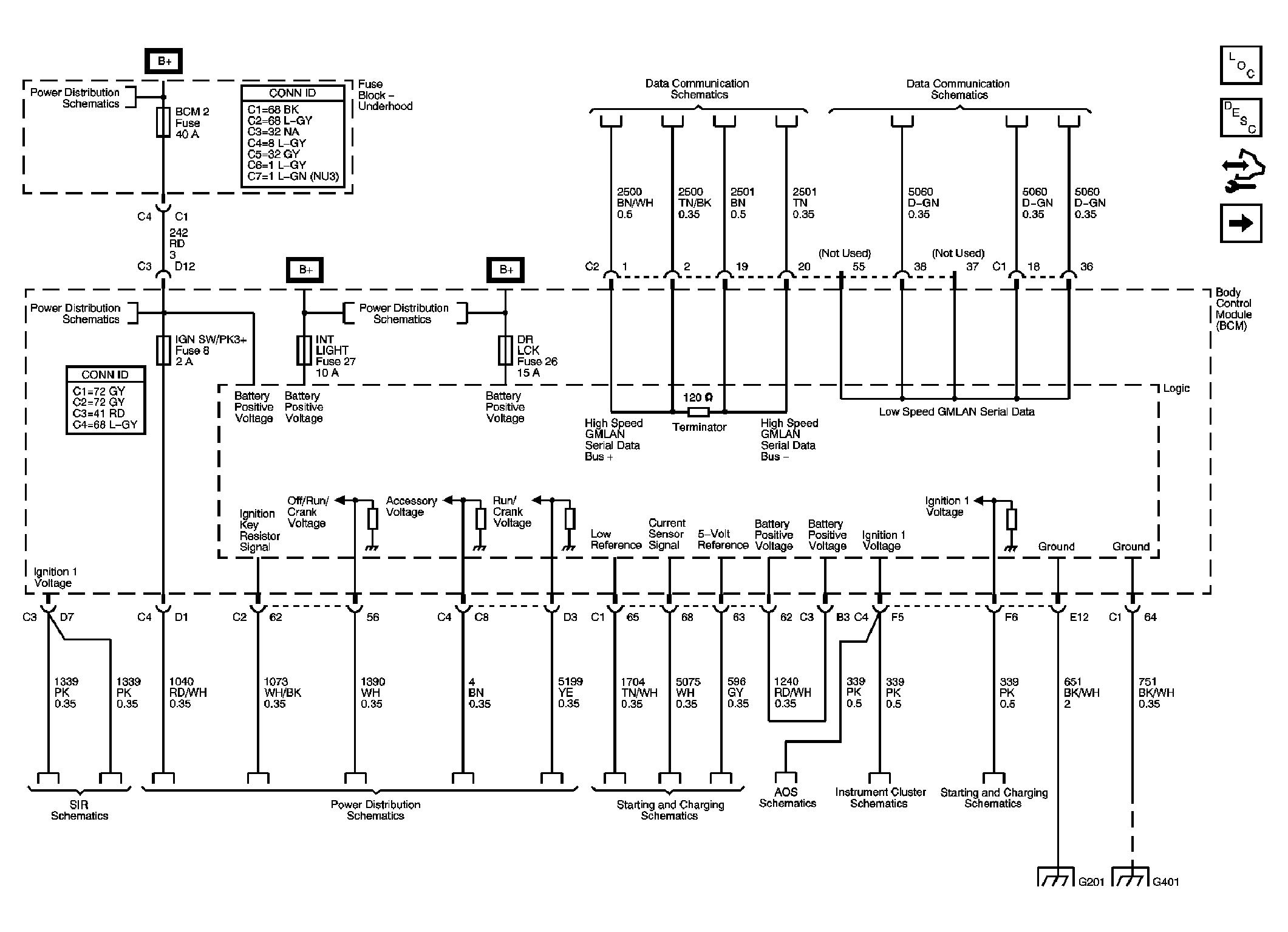

Fig 5: Controlled/Monitored Subsystem References (5 of 5)

Courtesy of GENERAL MOTORS CORP.
