Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the antenna assembly on the roof opening.

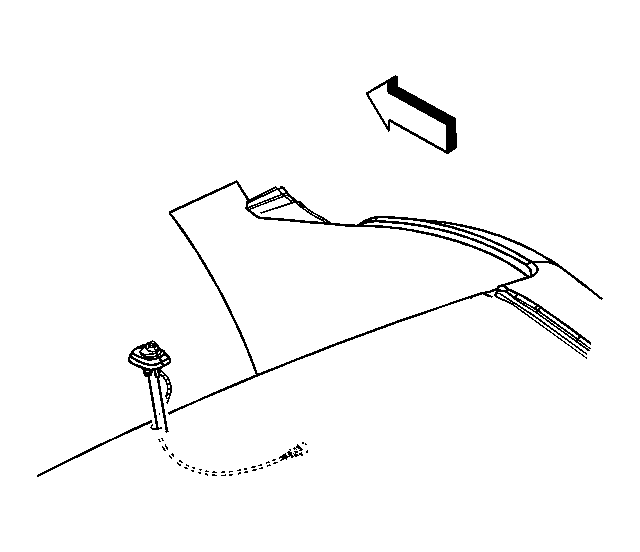

    2. Fig 1: View Of Antenna Assembly
    GM1220096Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Tighten the retaining nut.

    Tighten:  Tighten the nut to 6 N.m (53 lb in).

  3. Connect the antenna cables.
  4. Install the headliner. Refer to Headliner Replacement (w/Sunroof) or Headliner Replacement (w/o Sunroof) in Interior Trim.
