Engine Controls Schematics

WARNING: This page is about a different car, the 2007 Saturn Ion 3. However, it is still accessible from the selected car via links, so may be relevant.

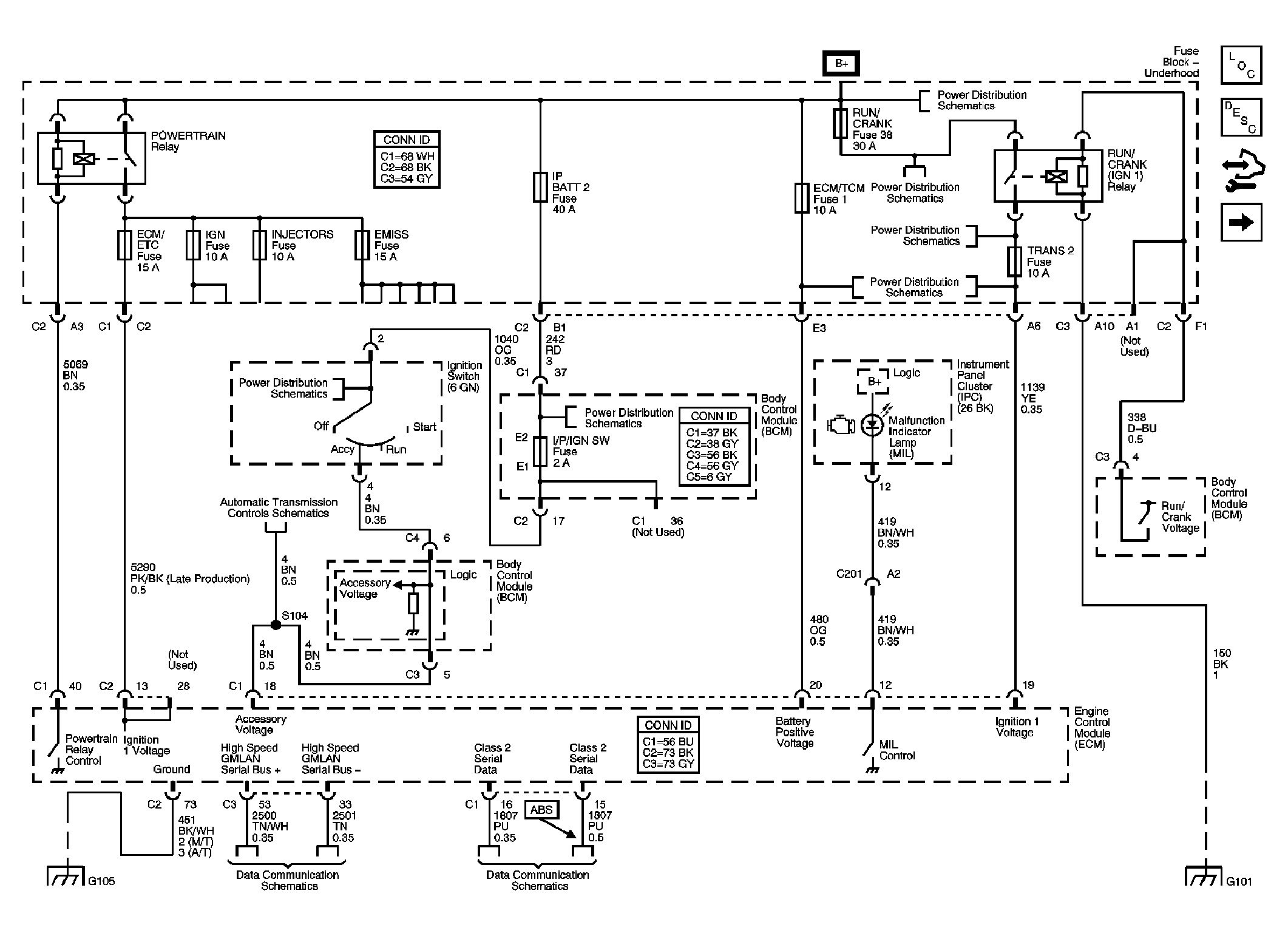

Fig 1: Power, Ground, MIL, and Serial Data

Courtesy of GENERAL MOTORS CORP.

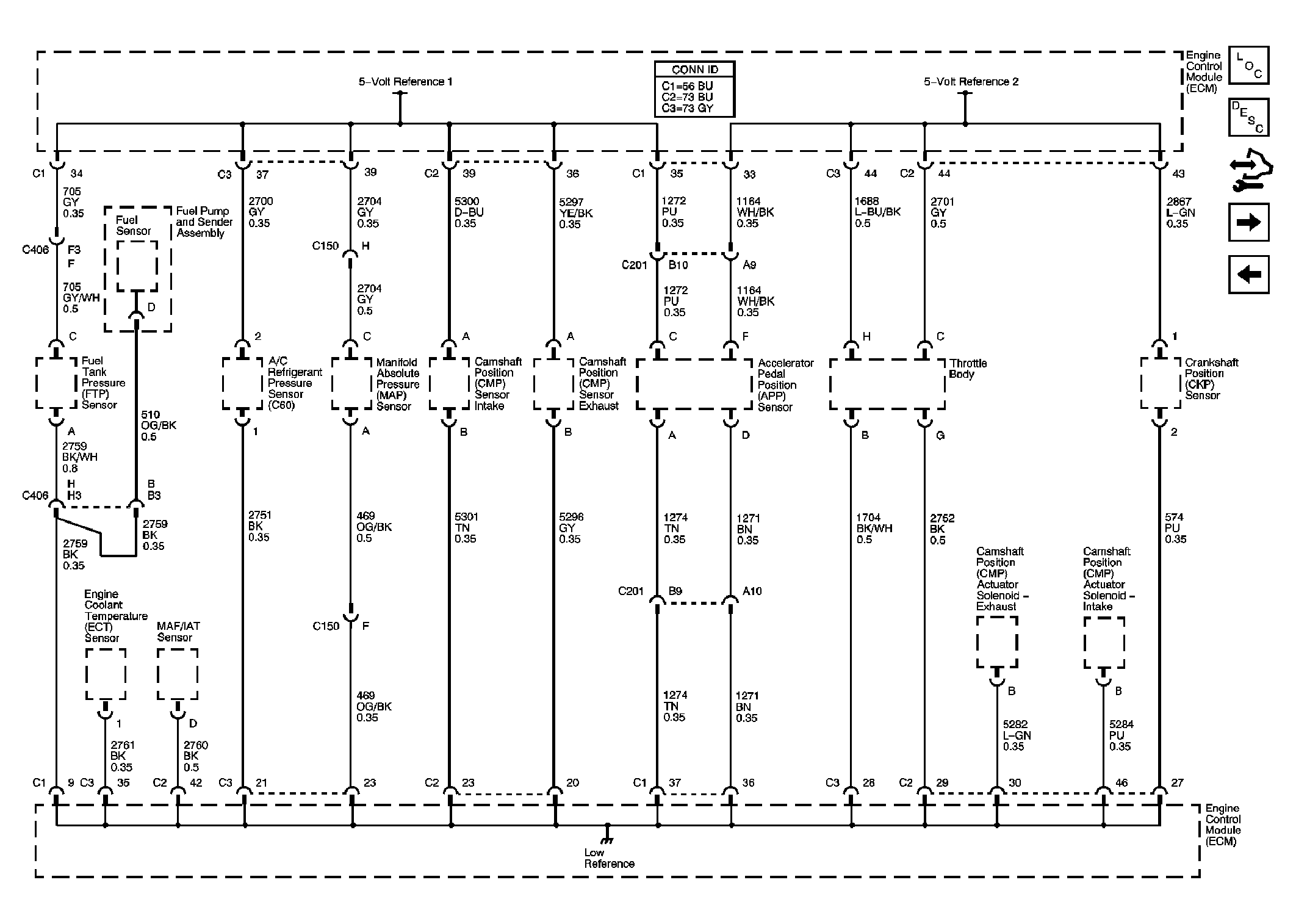

Fig 2: Engine Data Sensor - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

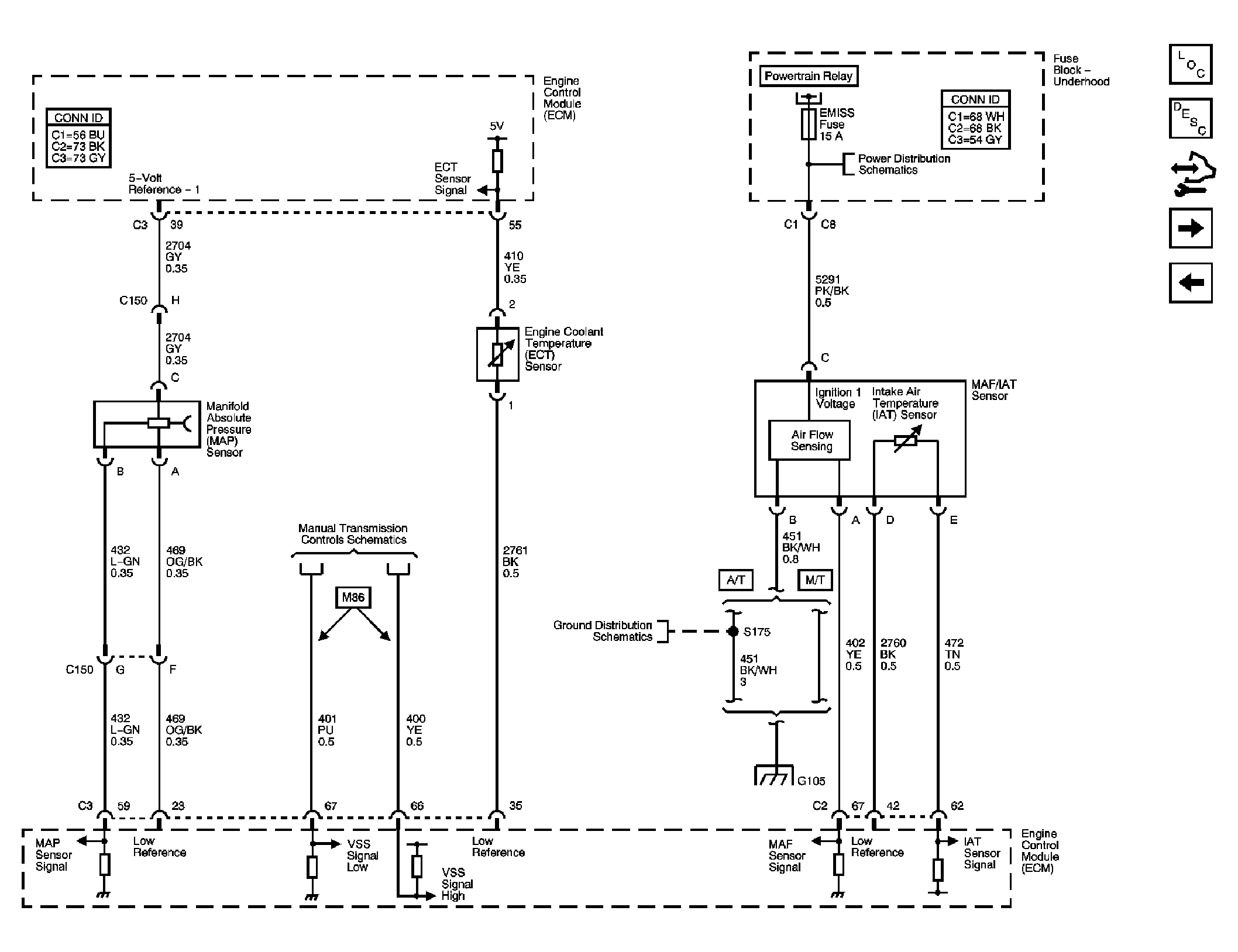

Fig 3: Engine Data Sensors - Pressure, Temperature, and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

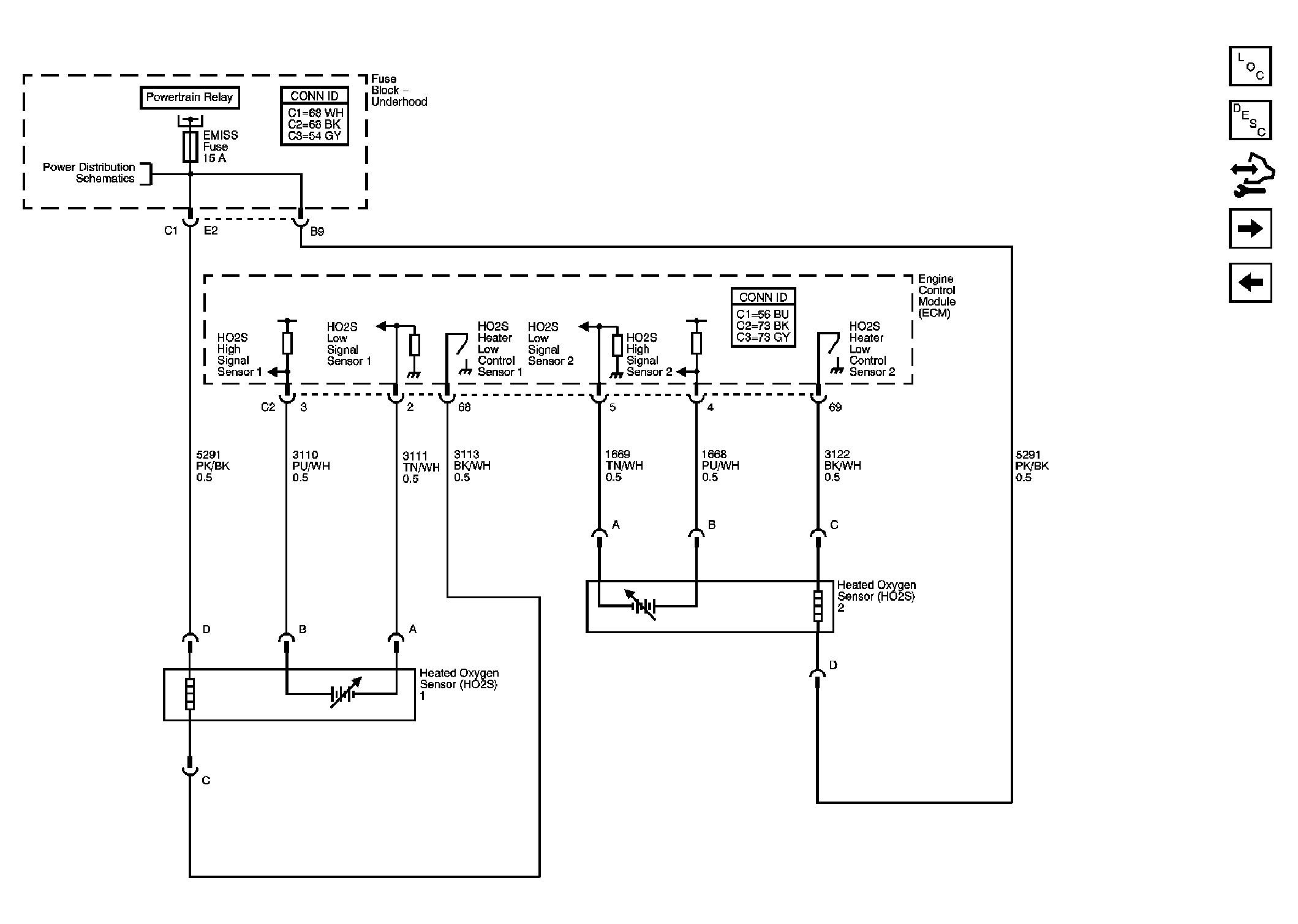

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

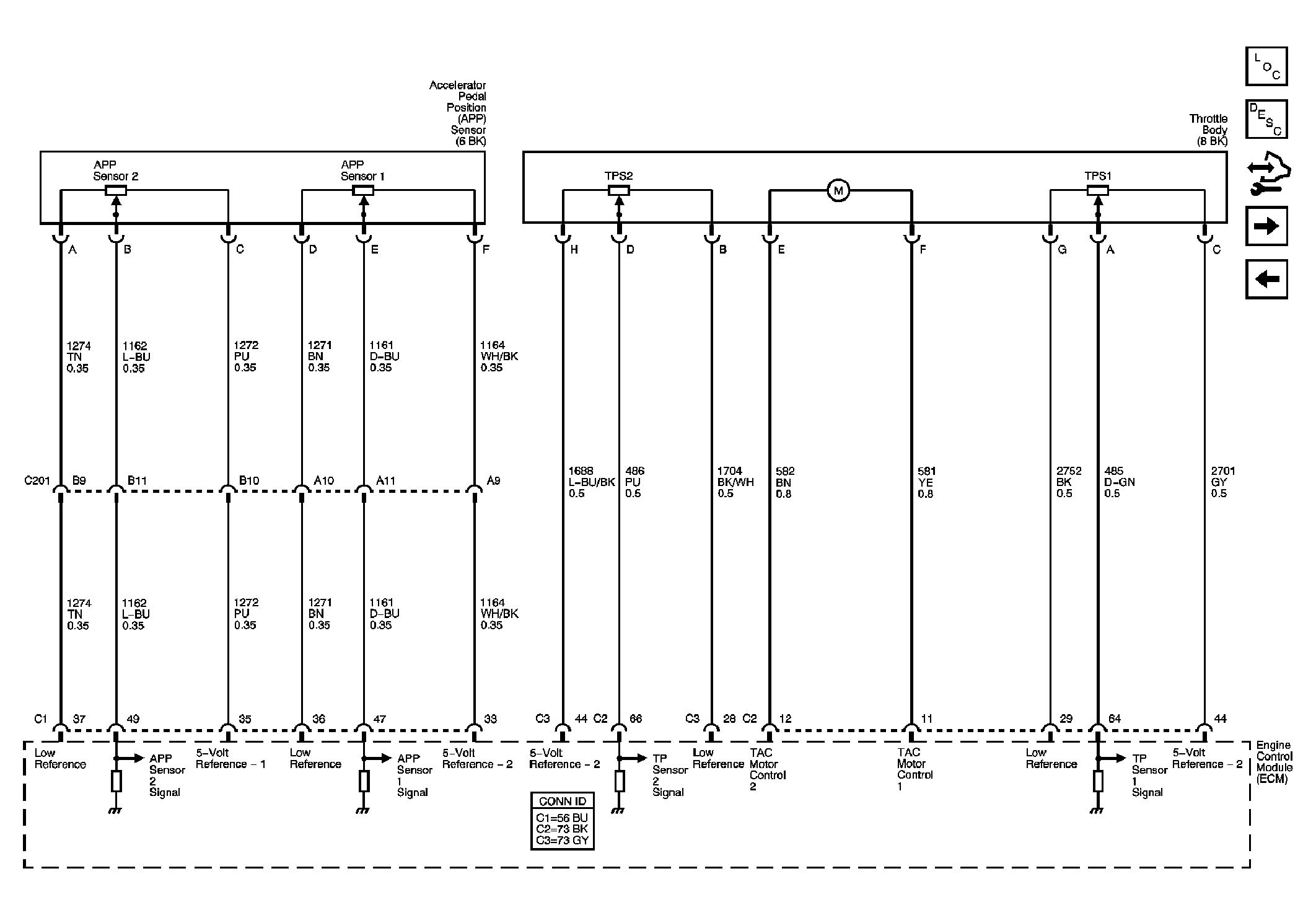

Fig 5: Engine Data Sensors - APP and TAC

Courtesy of GENERAL MOTORS CORP.

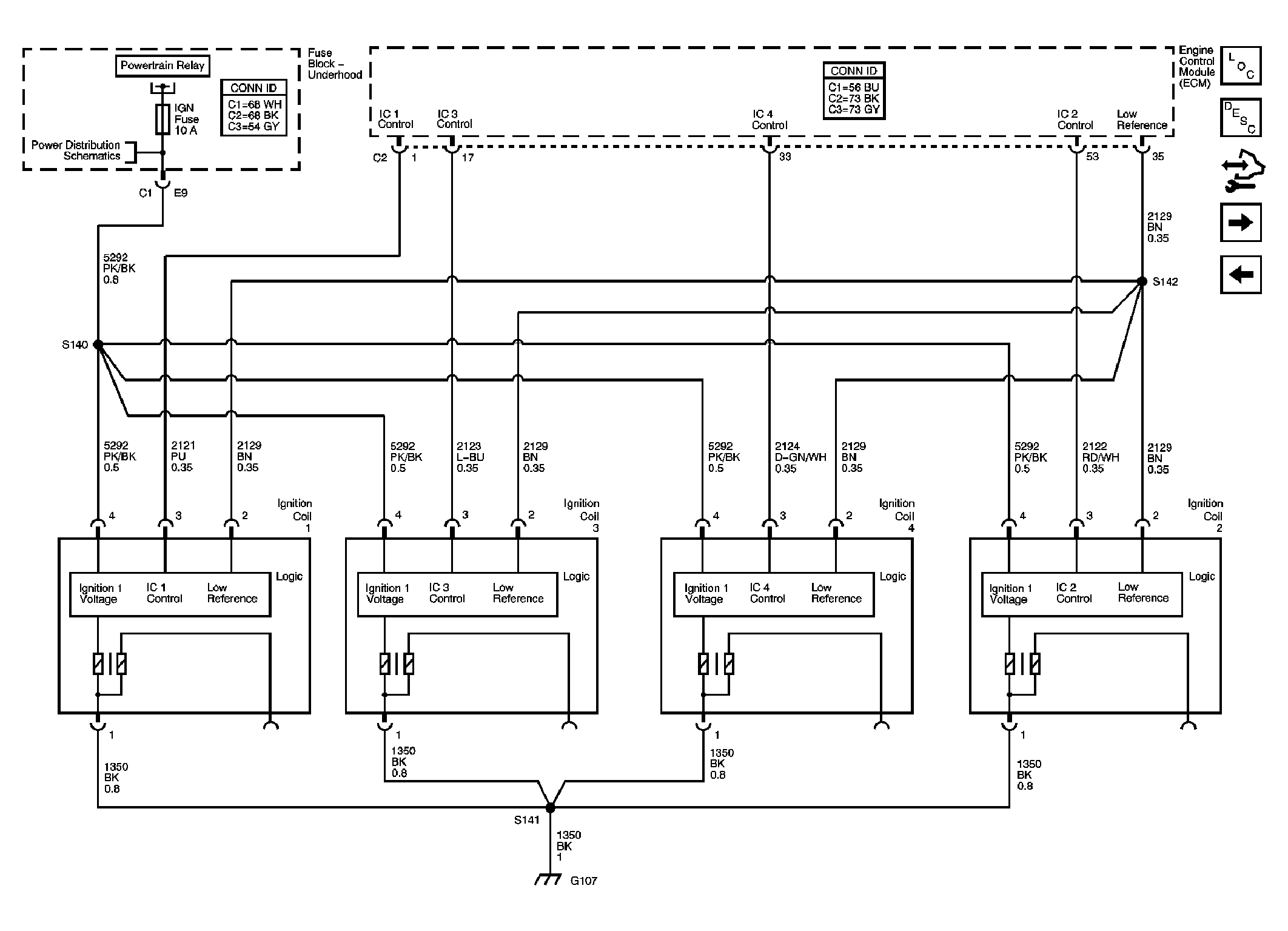

Fig 6: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

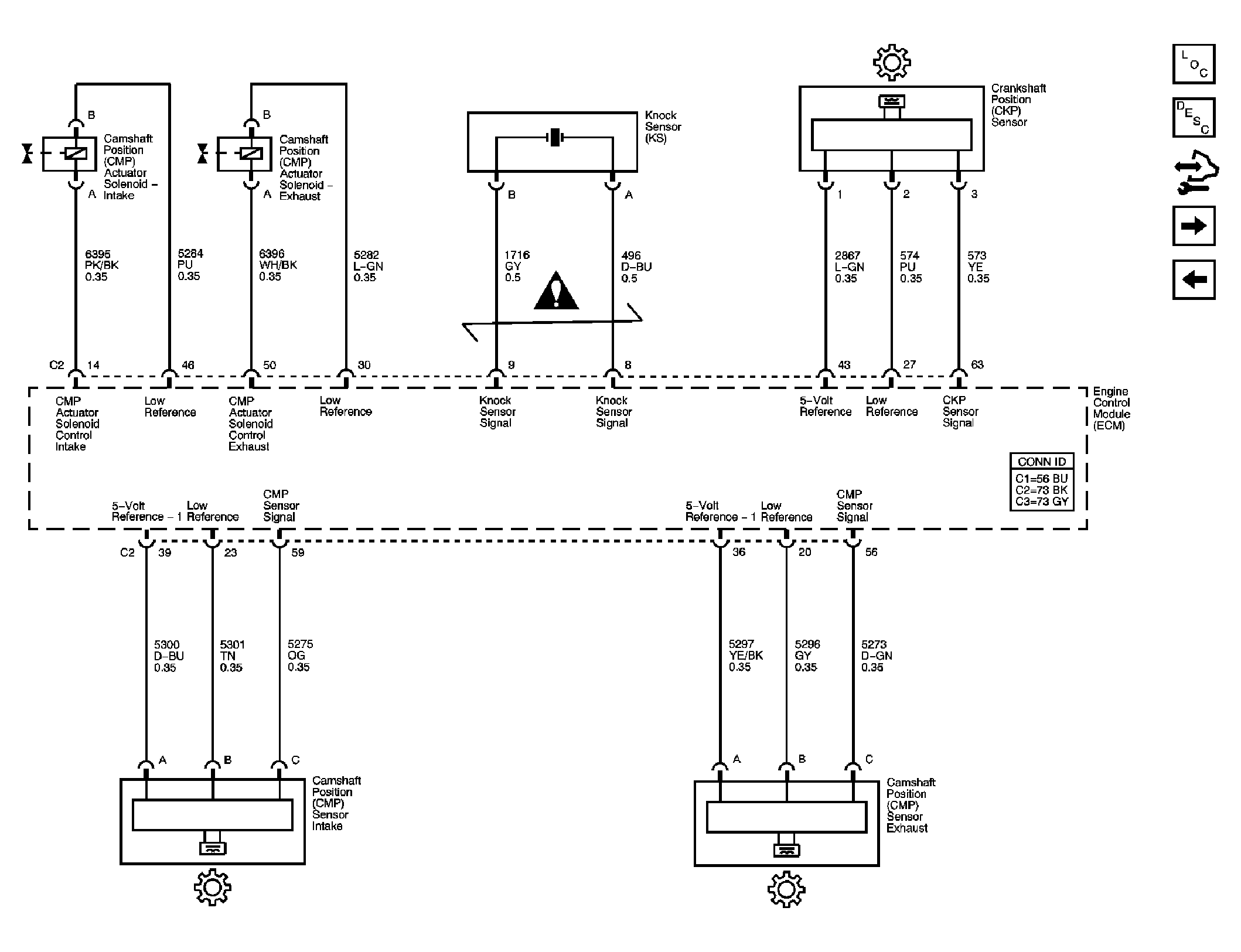

Fig 7: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

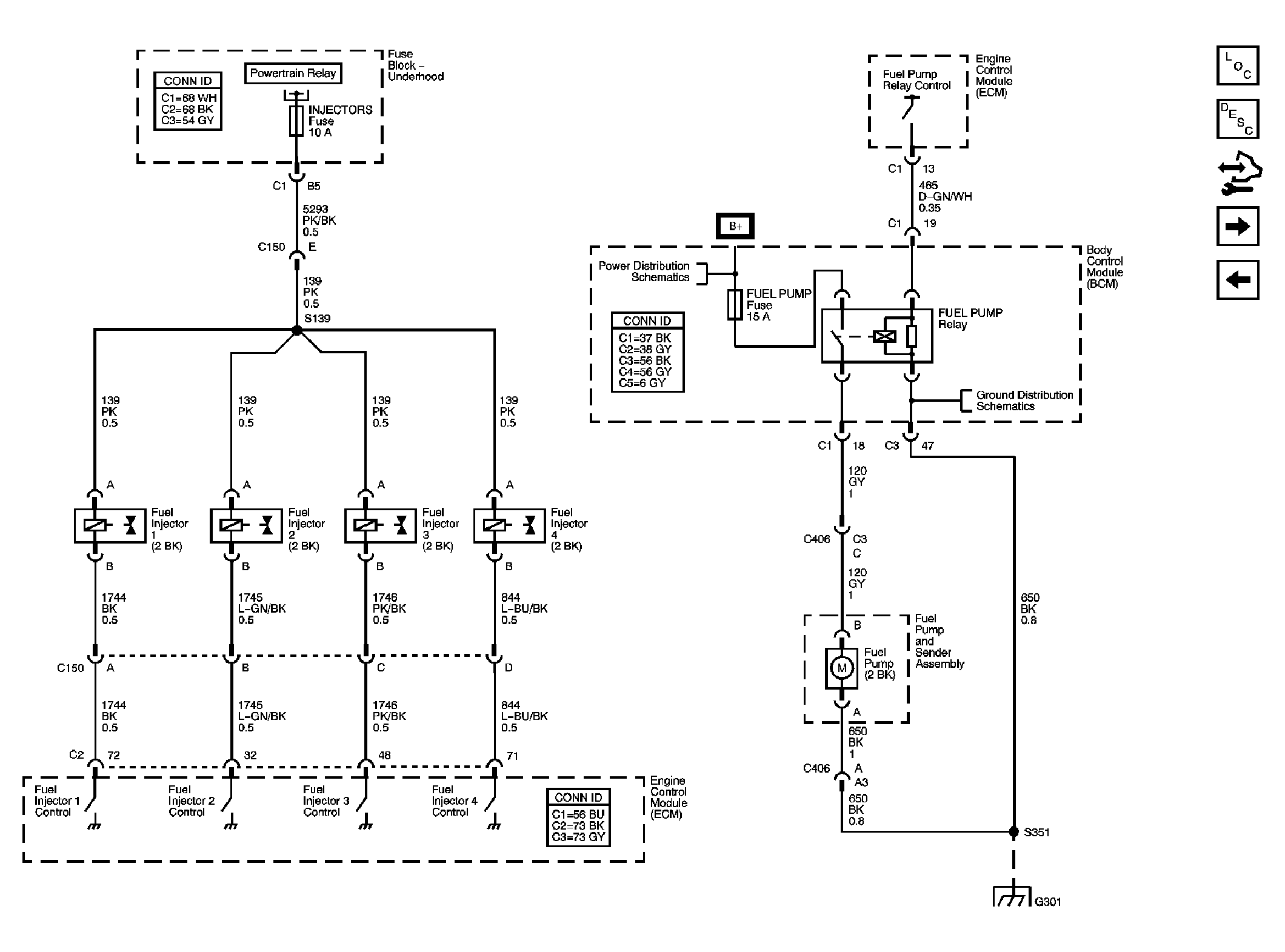

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

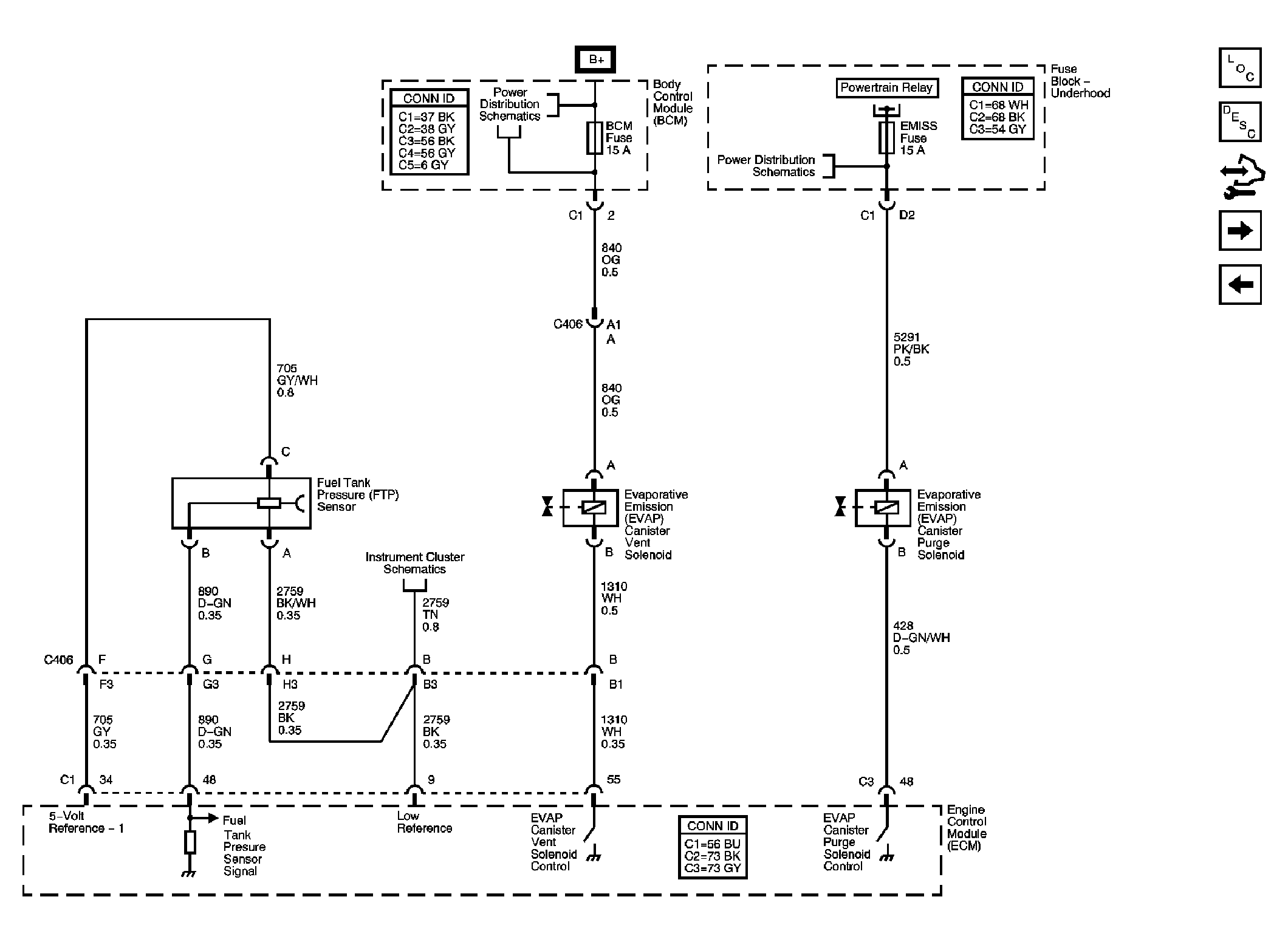

Fig 9: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

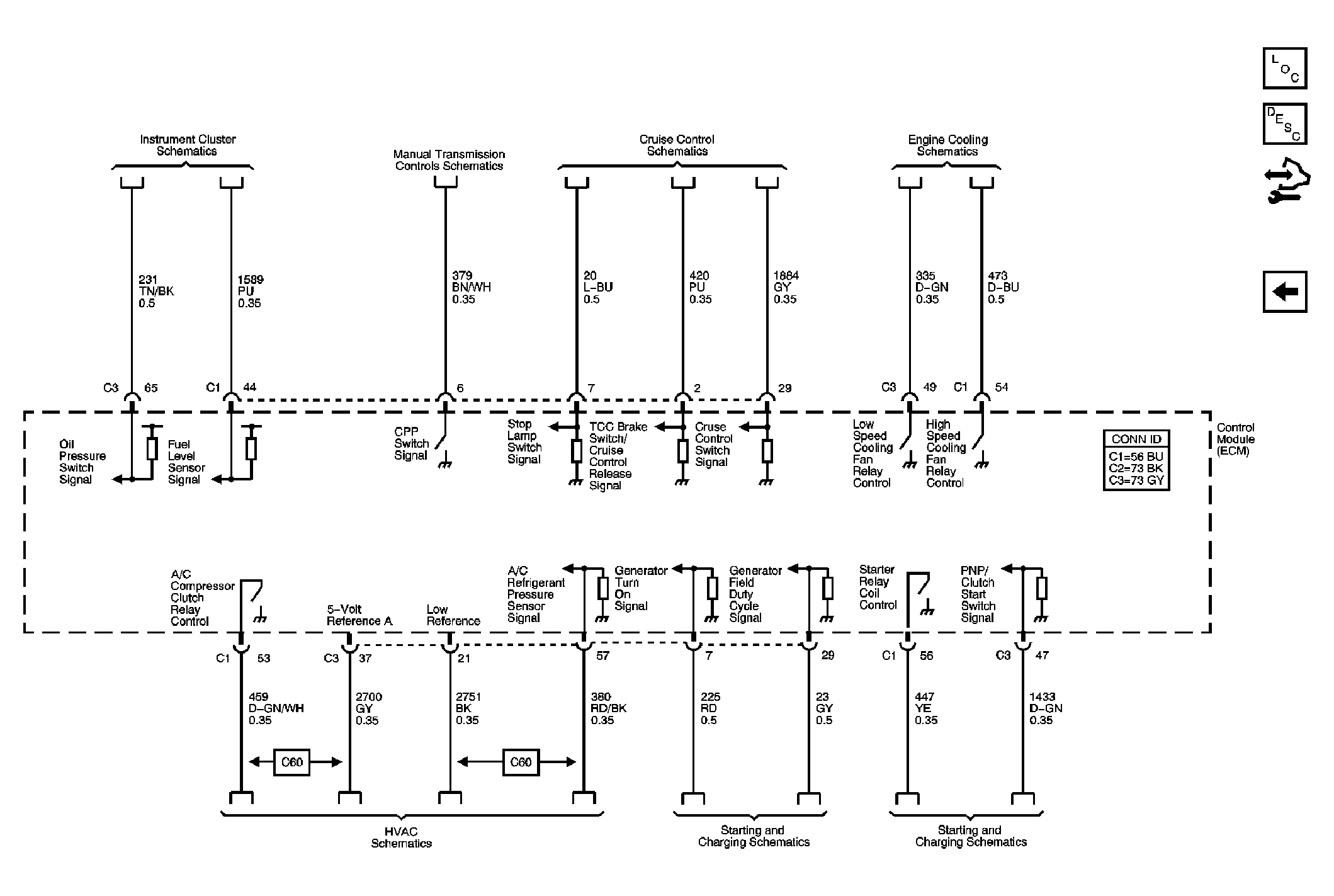

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
