Removal Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the push-in retainers from the energy absorber.
  3. Remove the energy absorber from the impact bar.

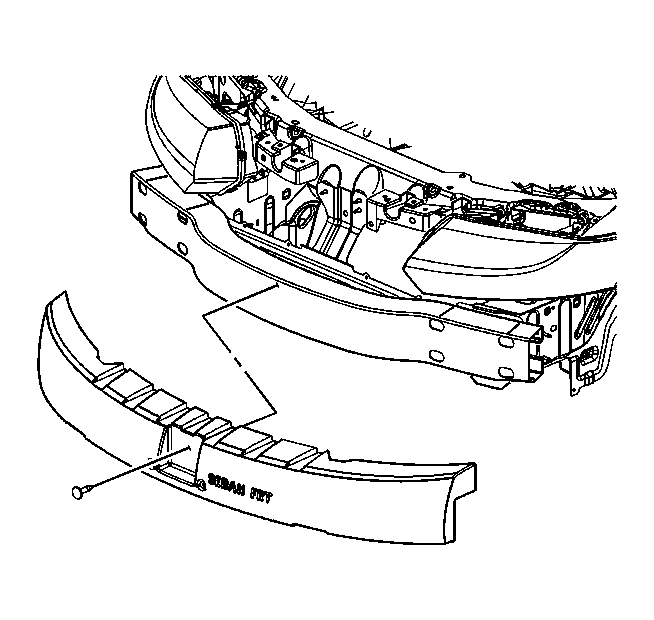

    4. Fig 1: View Of Front Energy Absorber
    GM864050Courtesy of GENERAL MOTORS CORP.
