Sunroof Component Views

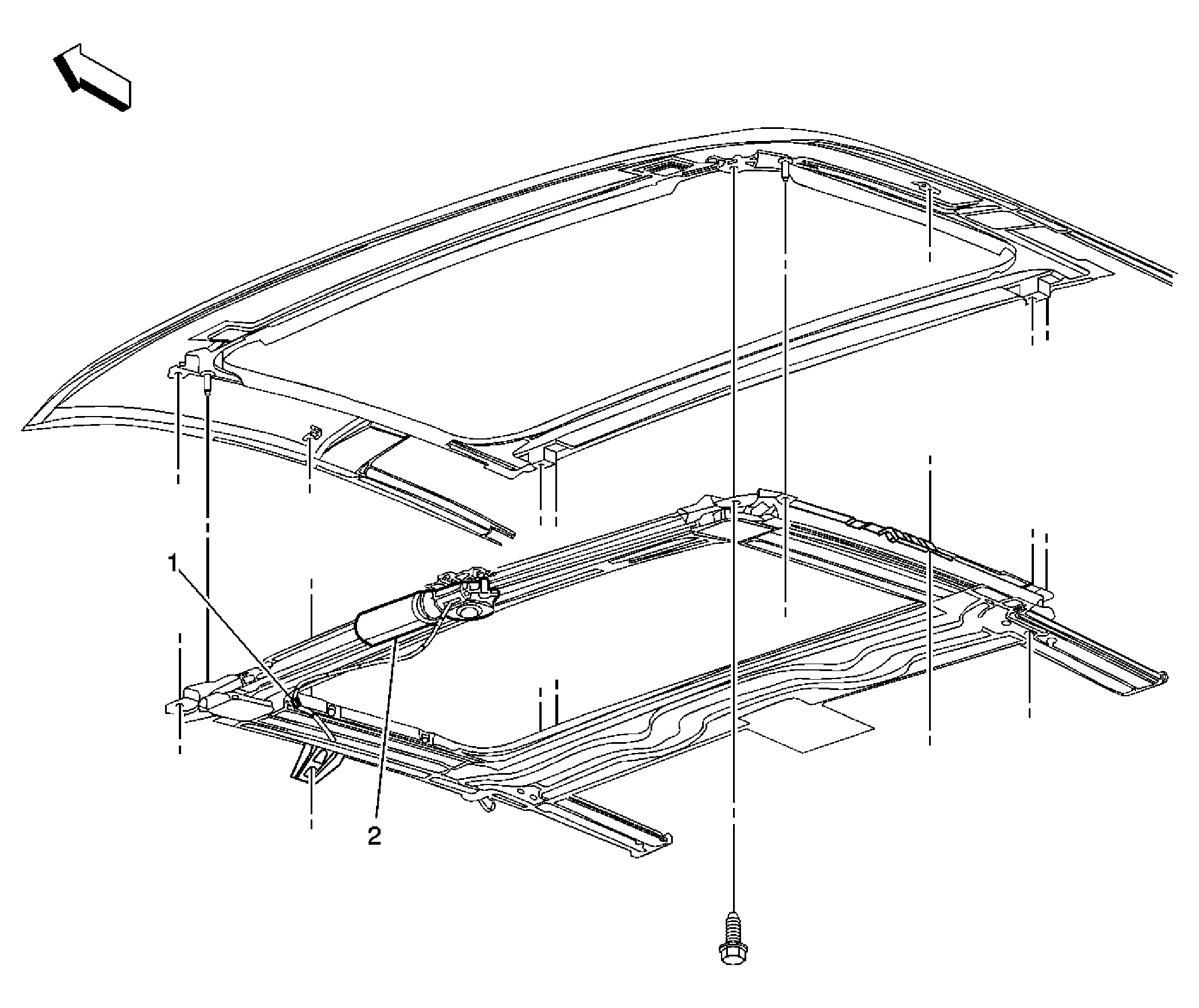

Fig 1: Sunroof Assembly
GM1696933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C302
2 Sunroof Motor

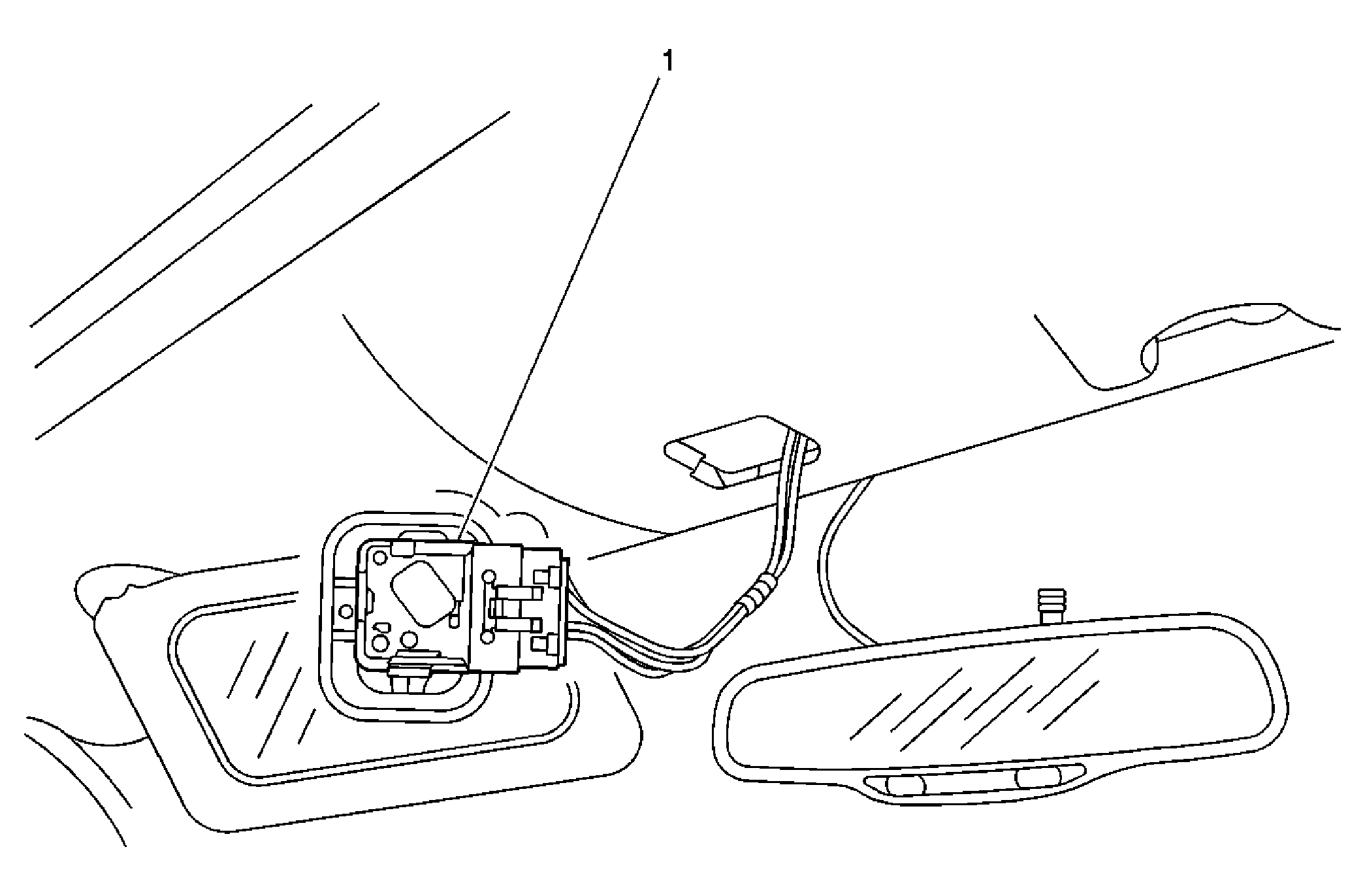

Fig 2: Roof/Headliner (CF5 w/o C74) Component View
GM898040Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Switch
Fig 3: Headliner Component View
GM1538477Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Courtesy/Reading Lamp (C74)
2 Sunroof Switch (CF5)
3 Sunroof (CF5)
4 Dome Lamp
