Power Distribution Schematics

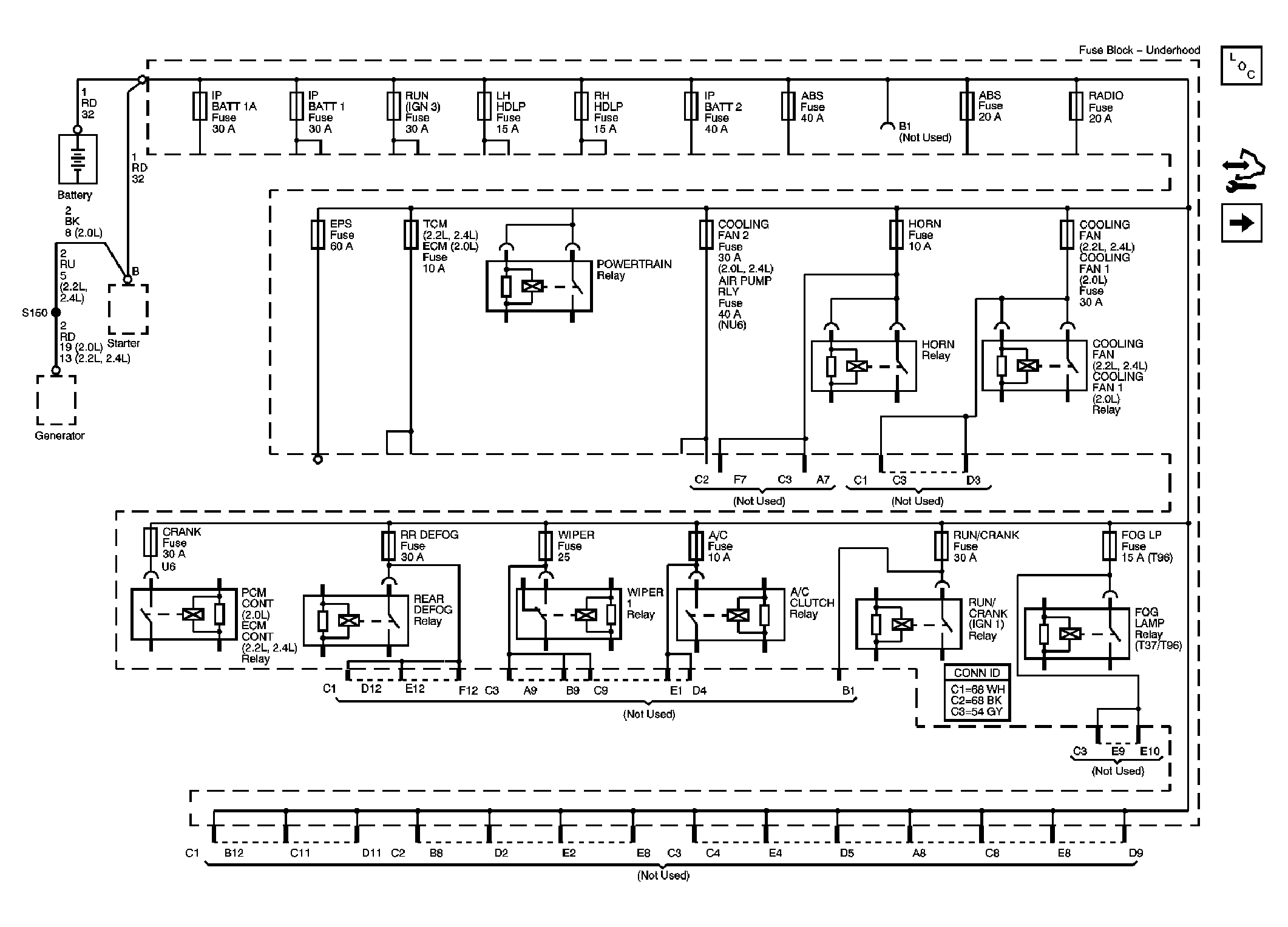

Fig 1: B+ Bus
GM1769378Courtesy of GENERAL MOTORS CORP.

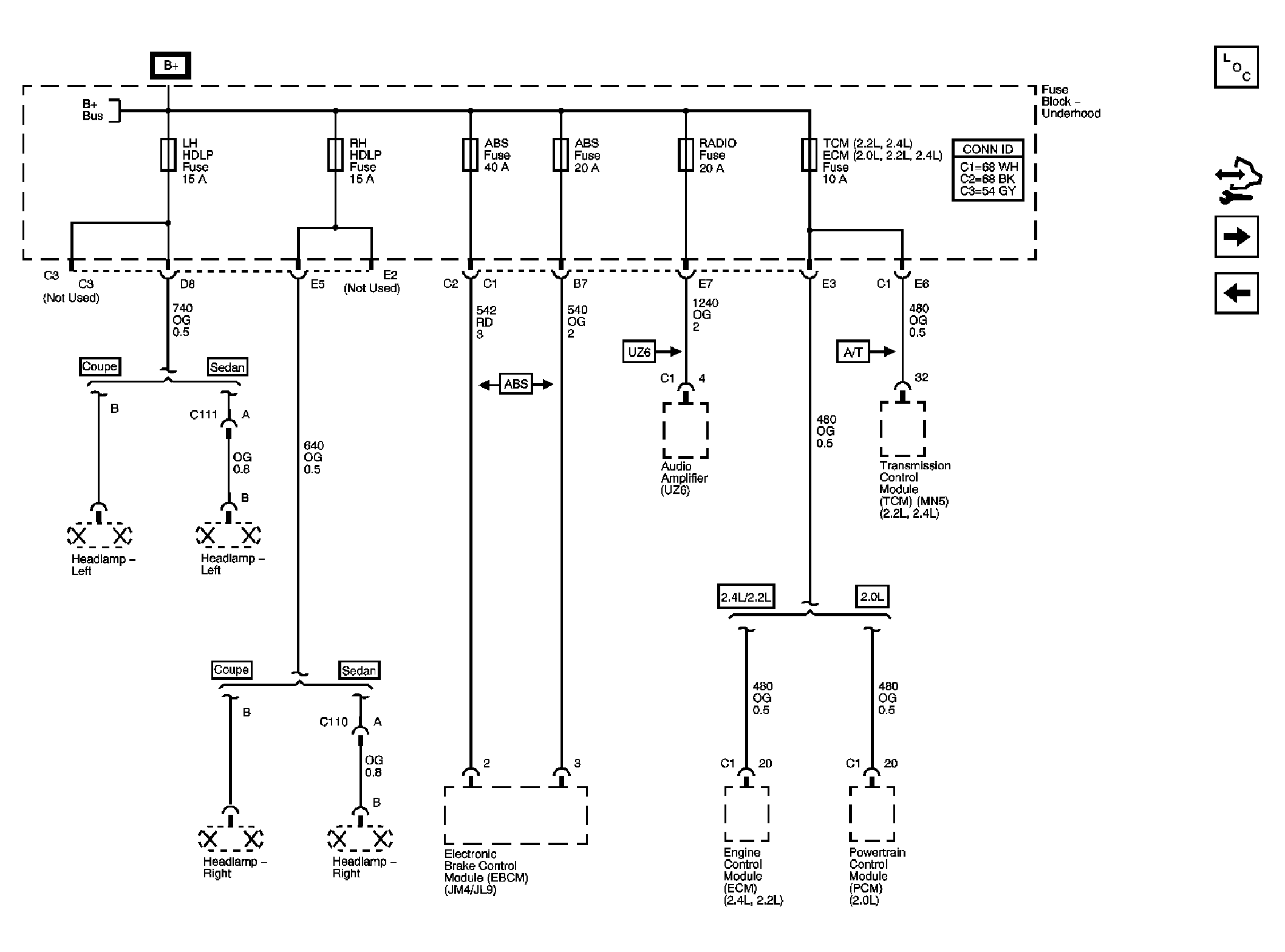

Fig 2: ABS (40A), ABS (20A), ECM, LH HDLP, Radio, RH HDLP, and TCM Fuses
GM1769379Courtesy of GENERAL MOTORS CORP.

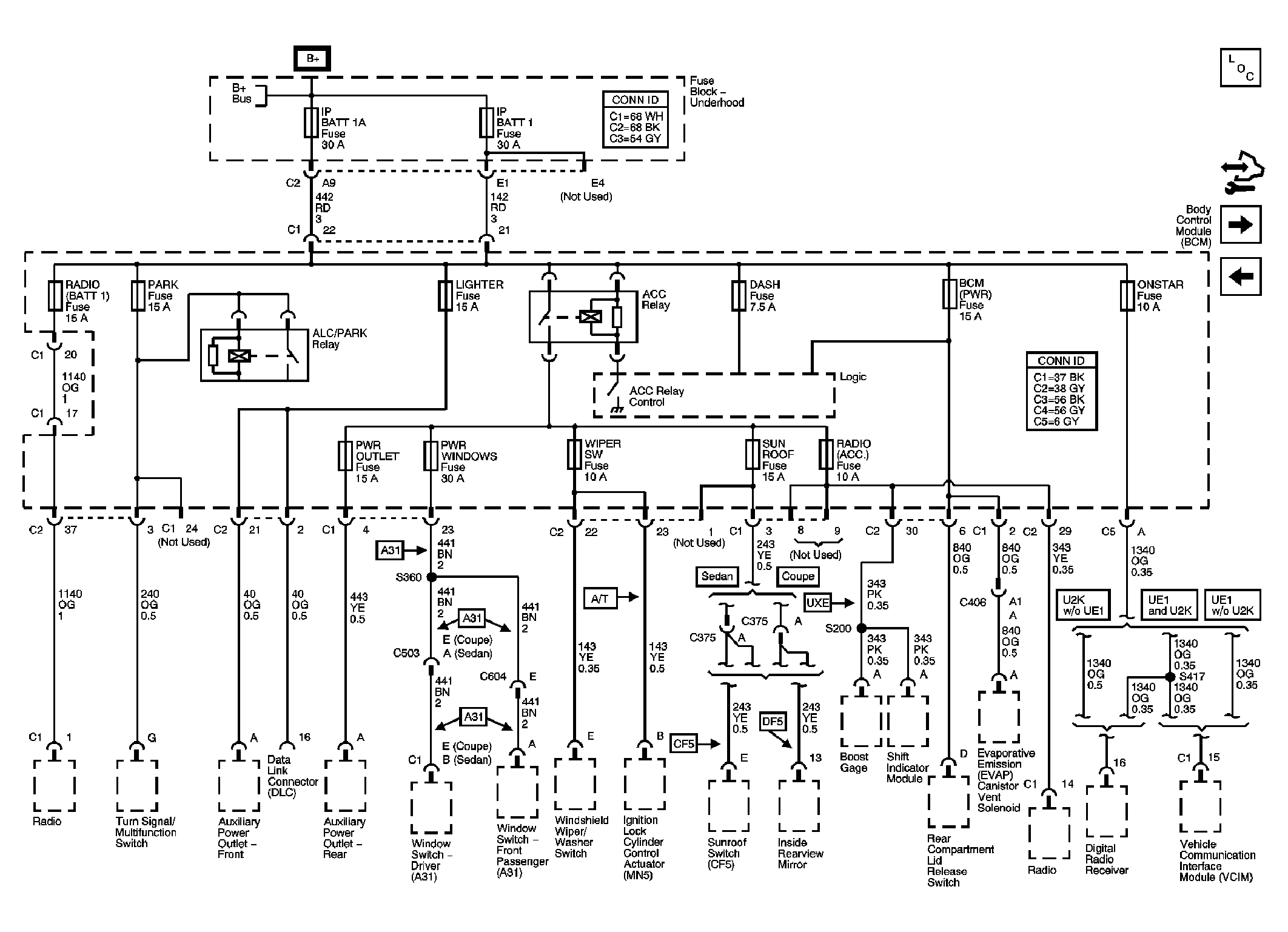

Fig 3: BCM (PWR), DASH, IP BATT 1, IP BATT 1A, LIGHTER, ONSTAR, PARK, PWR OUTLET, PWR WINDOWS, RADIO (BATT 1), RADIO (ACCY), SUN ROOF, and WIPER SW Fuses
GM1769383Courtesy of GENERAL MOTORS CORP.

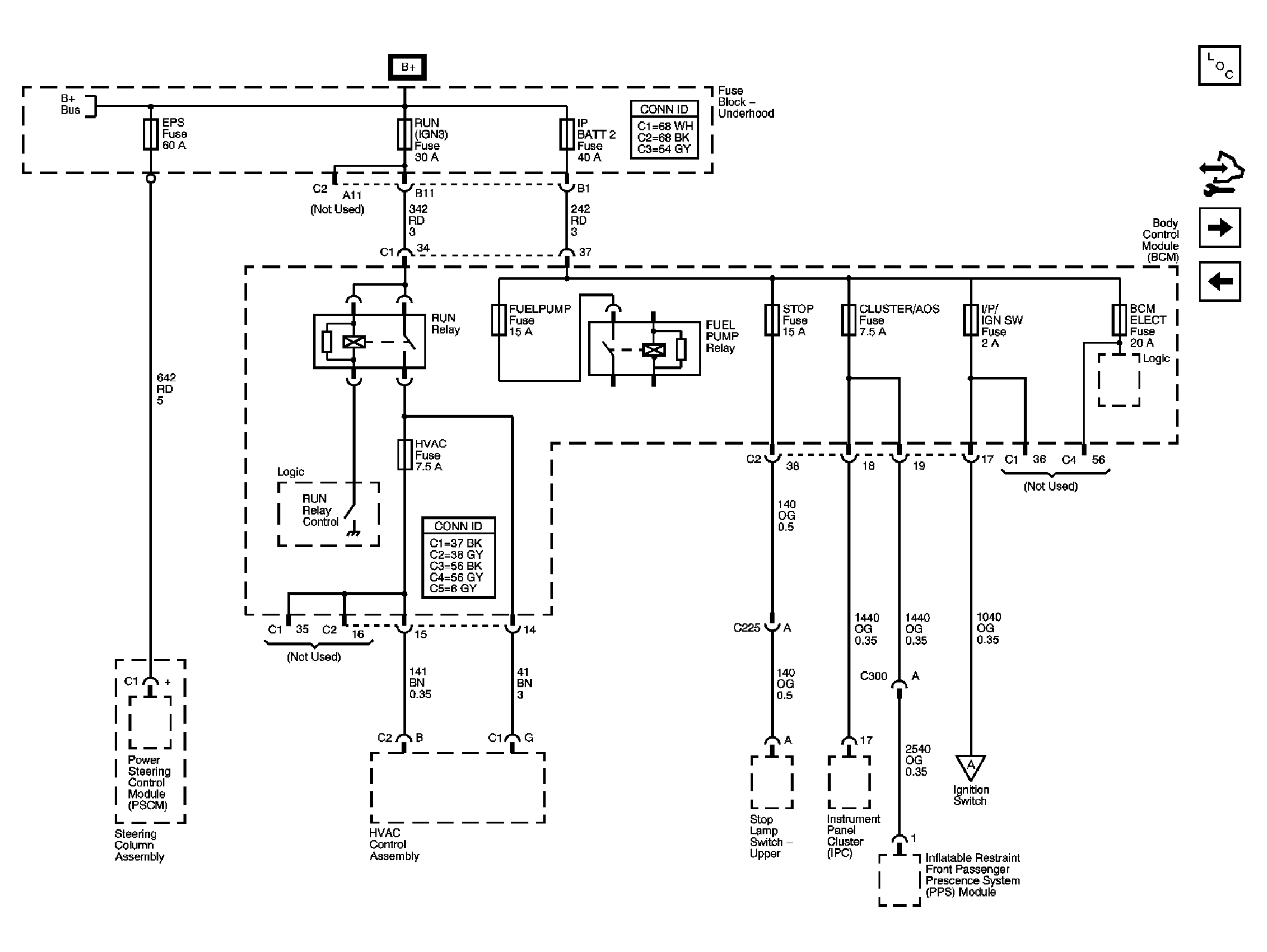

Fig 4: BCM, ELECT, CLUSTER/AOS, EPS (60A), FUEL PUMP, HVAC, IGN SW, IP BATT 2, RUN (IGN 3), and STOP Fuses, RUN and Fuel Pump Relays
GM1769391Courtesy of GENERAL MOTORS CORP.

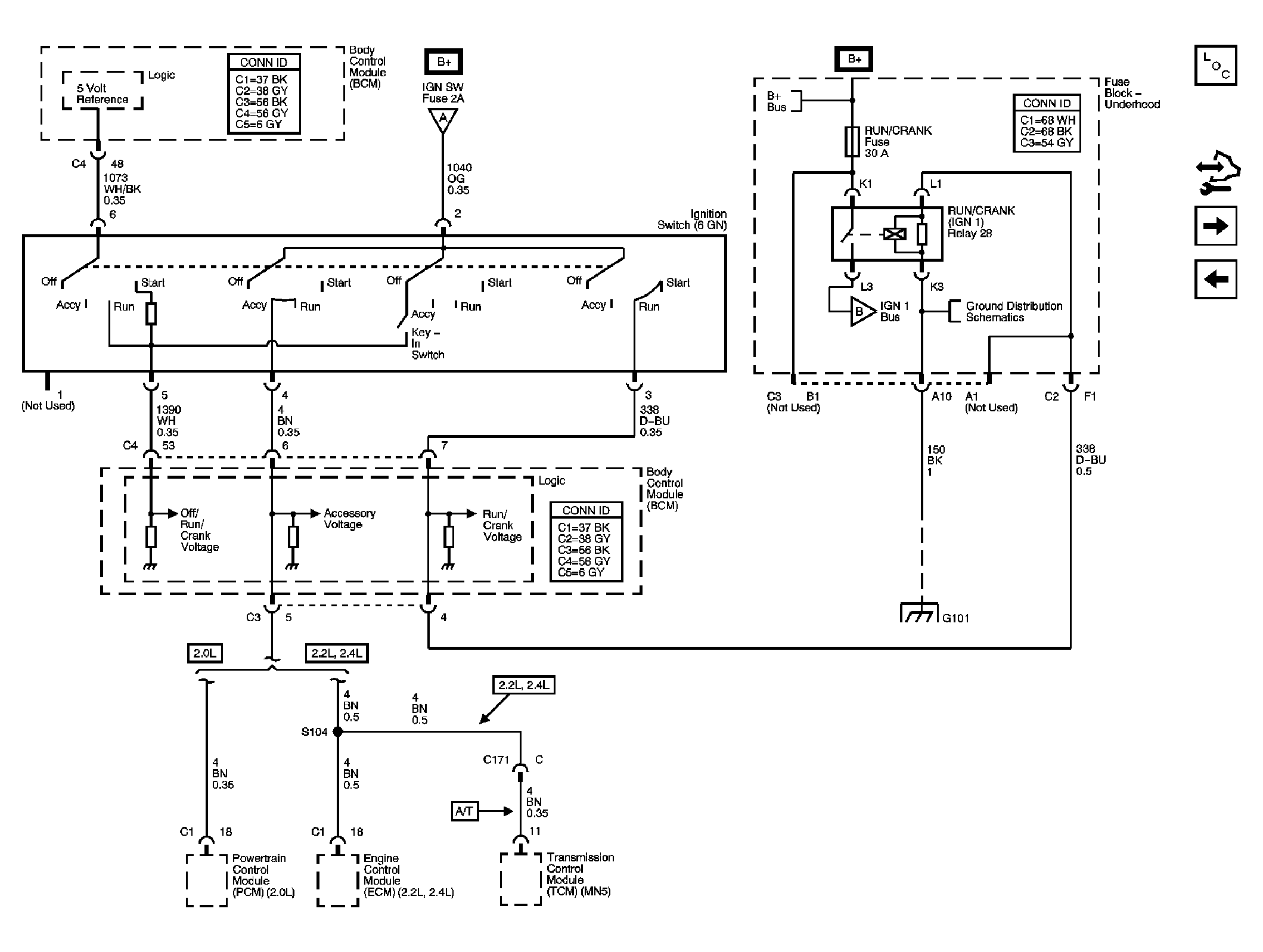

Fig 5: Ignition Switch, RUN/CRANK Fuse, RUN/CRANK (IGN1) Relay
GM1769395Courtesy of GENERAL MOTORS CORP.

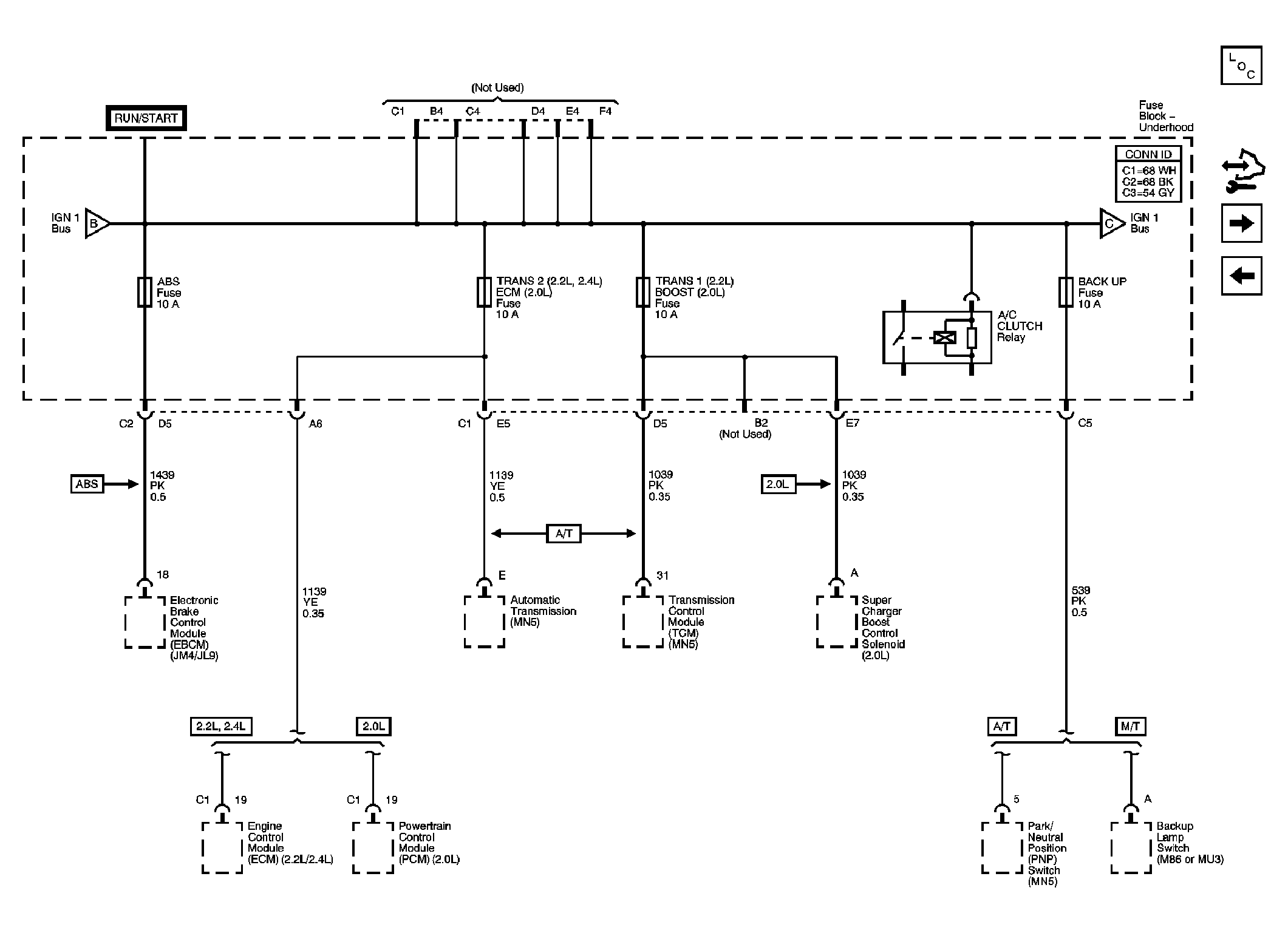

Fig 6: ABS (IOA), BACK UP, BOOST, ECM, TRANS 1, and TRANS 2 Fuses
GM1769400Courtesy of GENERAL MOTORS CORP.

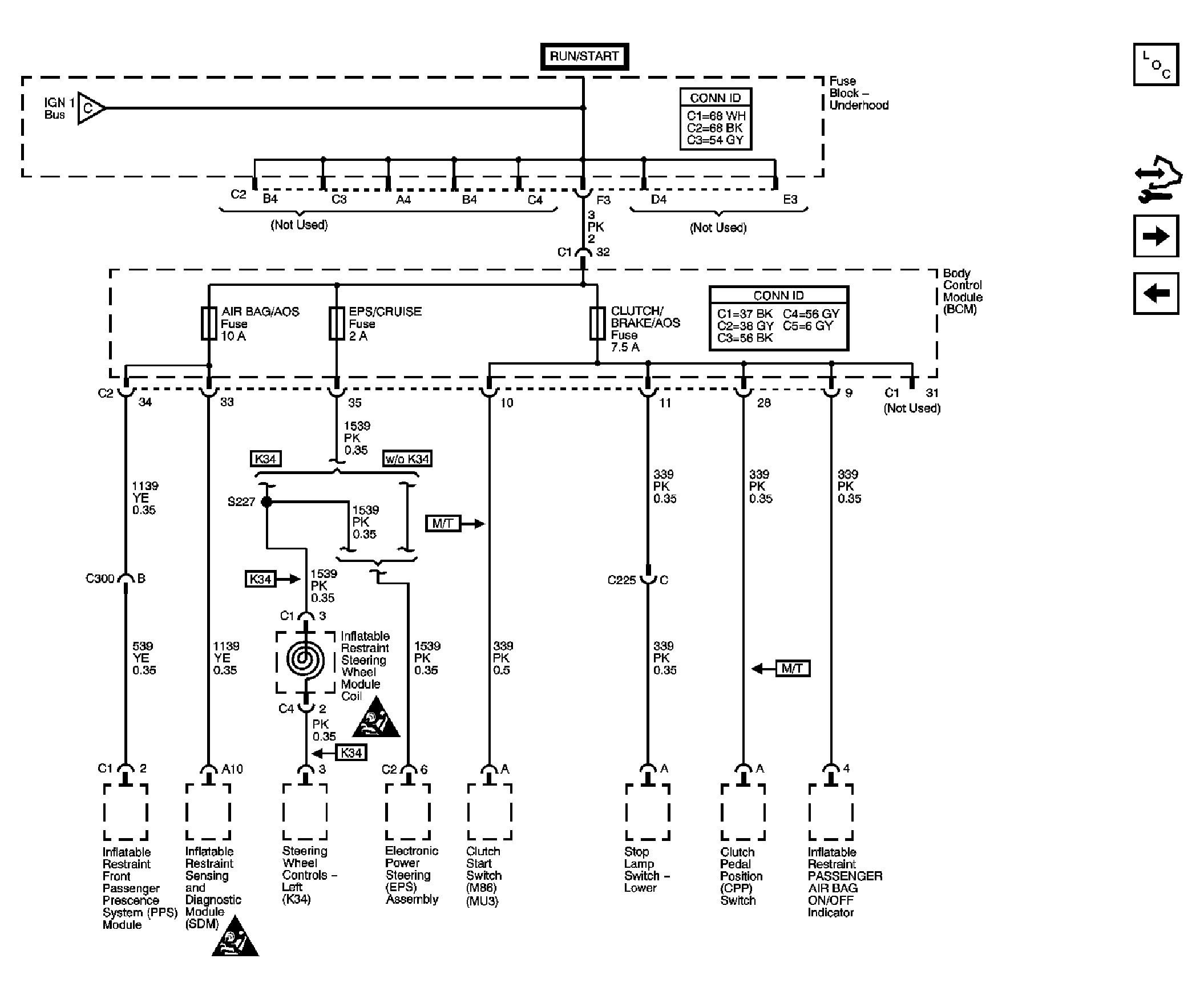

Fig 7: AIR BAG/AOS, CLUTCH/BRAKE/AOS, and EPS/CRUISE Fuses
GM1769402Courtesy of GENERAL MOTORS CORP.

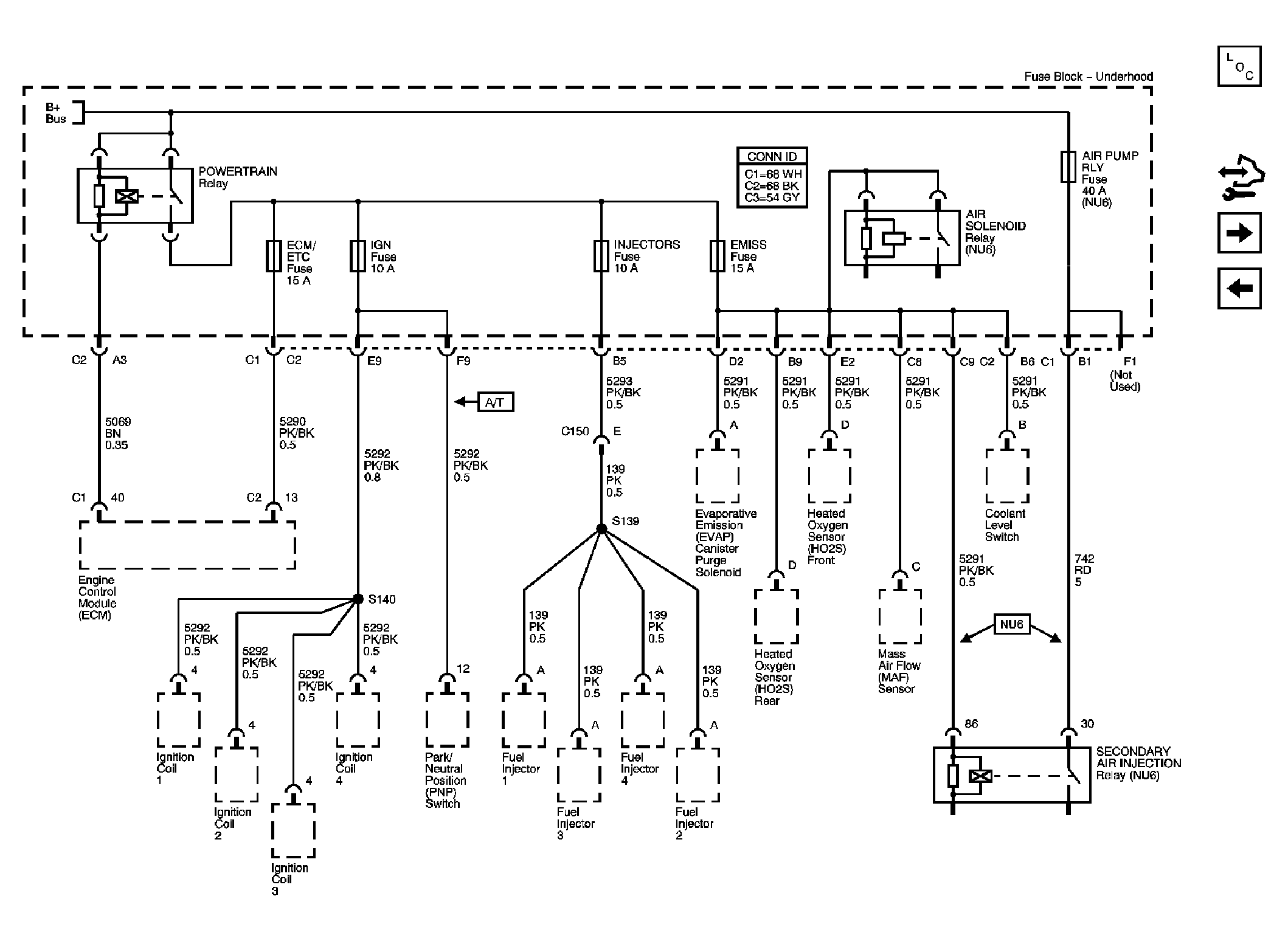

Fig 8: AIR PUMP RLY, ECM/ETC, EMISS, IGN, and INJECTOR Fuse, AIR SOLENOID, POWERTRAIN Relays - 2.2L
GM1769407Courtesy of GENERAL MOTORS CORP.

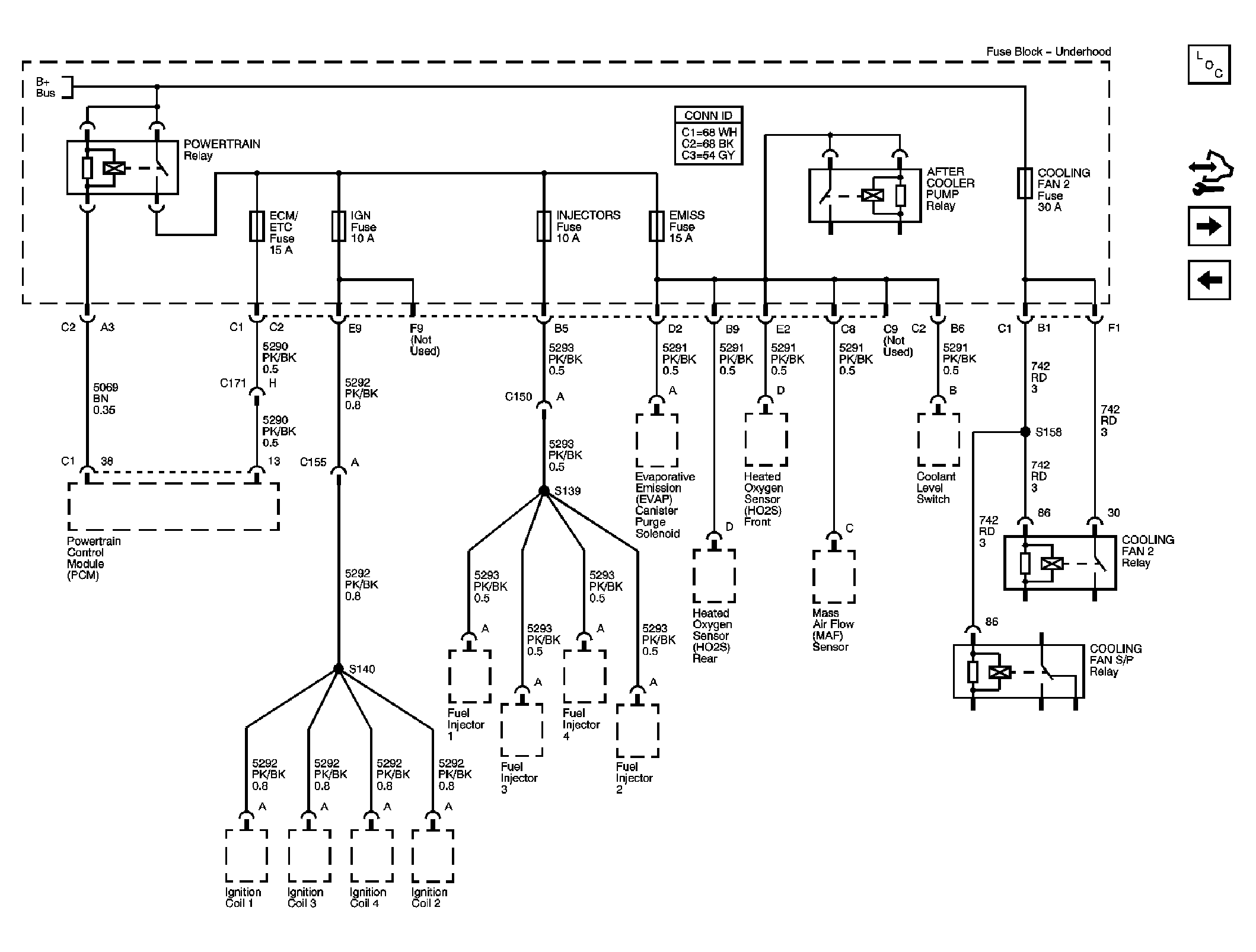

Fig 9: Cooling Fan, ECM/ETC, EMISS, INJECTORS, and IGN Fuses, AFTER COOLER PUMP and POWERTRAIN RELAYS - 2.0L
GM1769414Courtesy of GENERAL MOTORS CORP.

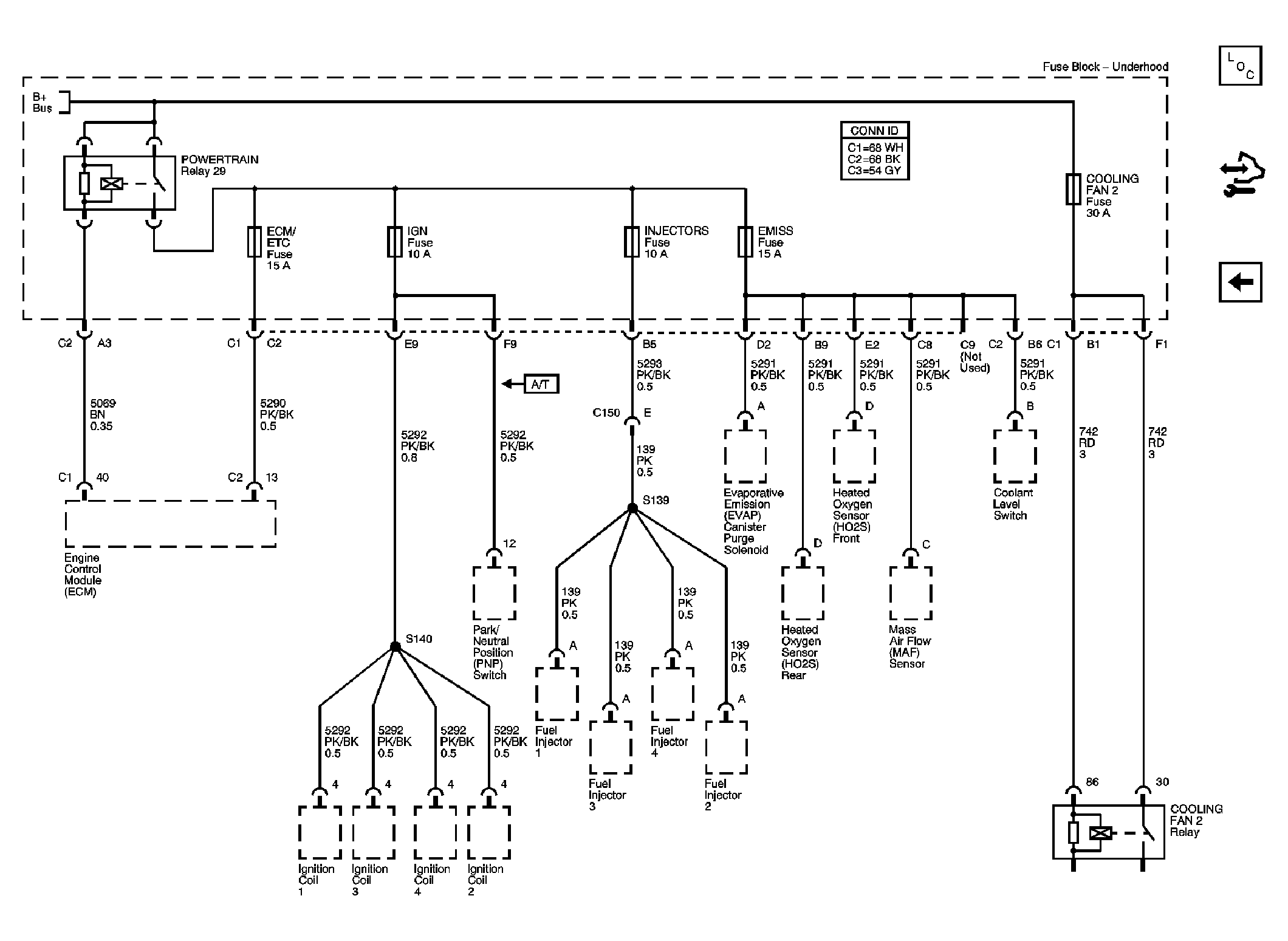

Fig 10: COOLING FAN2, ECM/ETC, EMISS, IGN, and INJECTORS Fuses, POWERTRAIN Relay - 2.4L
GM1769426Courtesy of GENERAL MOTORS CORP.
