Power Window Schematics
Power Window Schematics

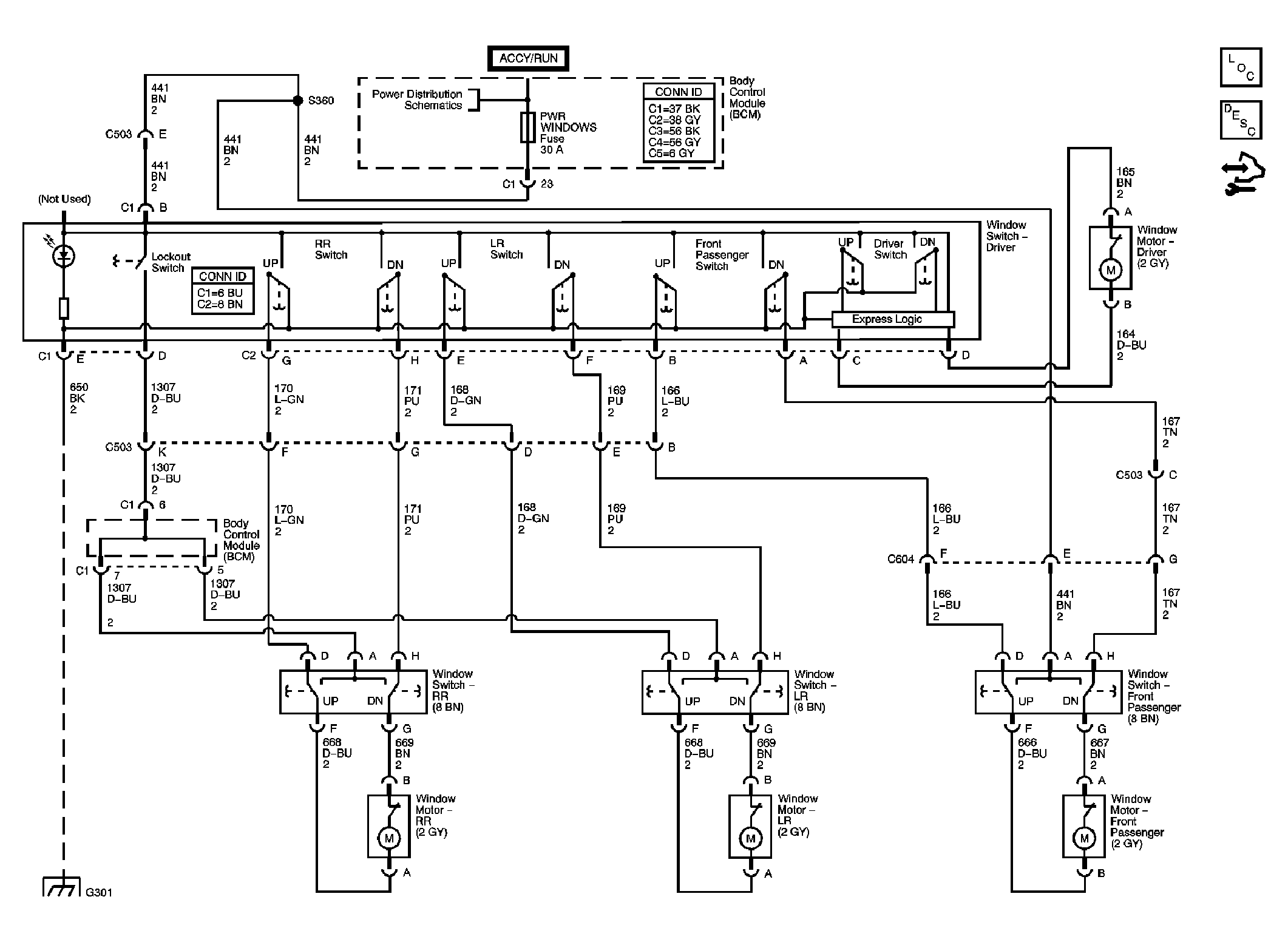

Fig 1: Power Window Schematics - Sedan
Courtesy of GENERAL MOTORS CORP.

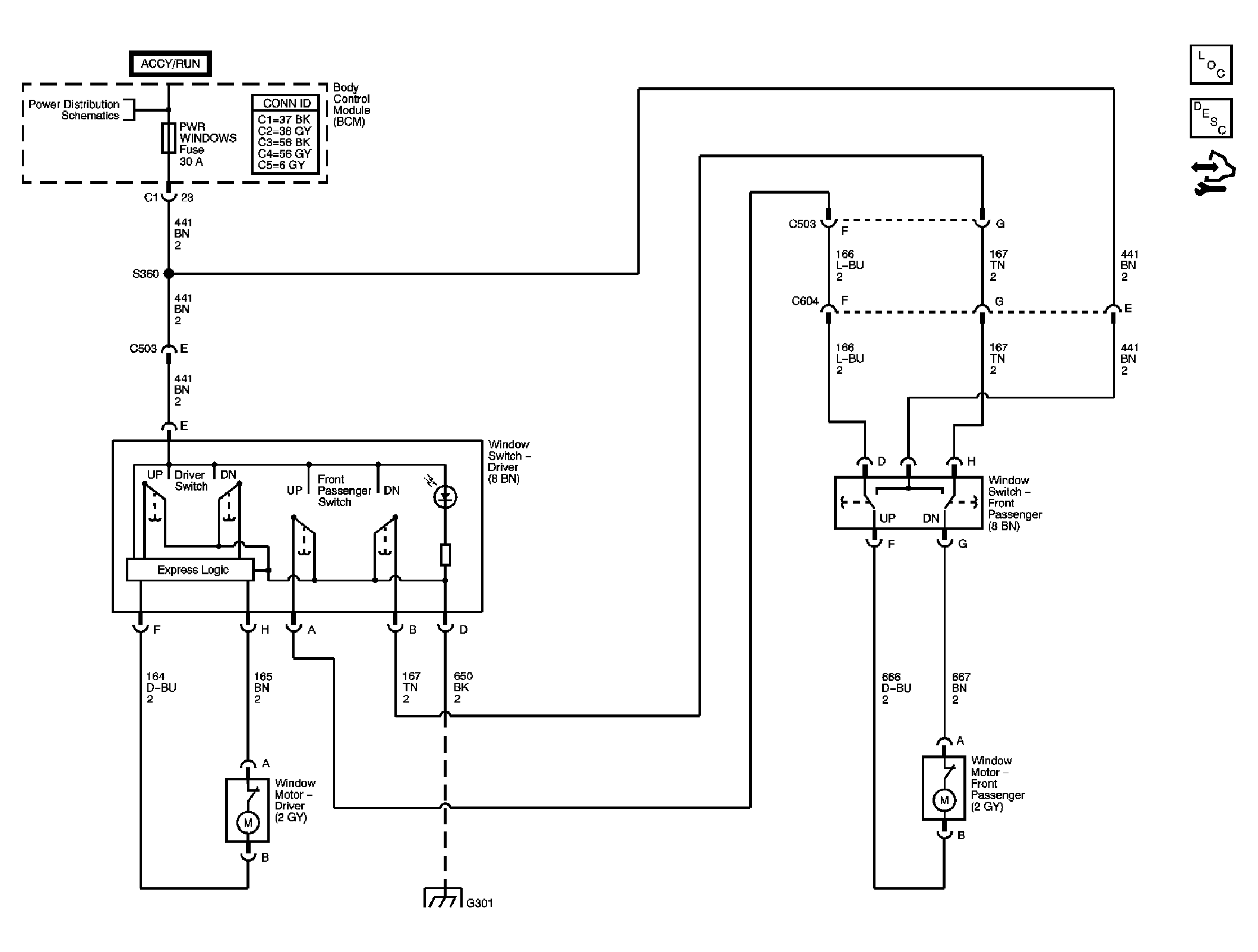

Fig 2: Power Window Schematics - Coupe
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
