Installation Procedure

    Fig 1: View Of Window Regulator & Bolts
    GM875254Courtesy of GENERAL MOTORS CORP.
  1. Loosely install the four forward fasteners (2) into the window regulator.
  2. Position the power window regulator in the door.

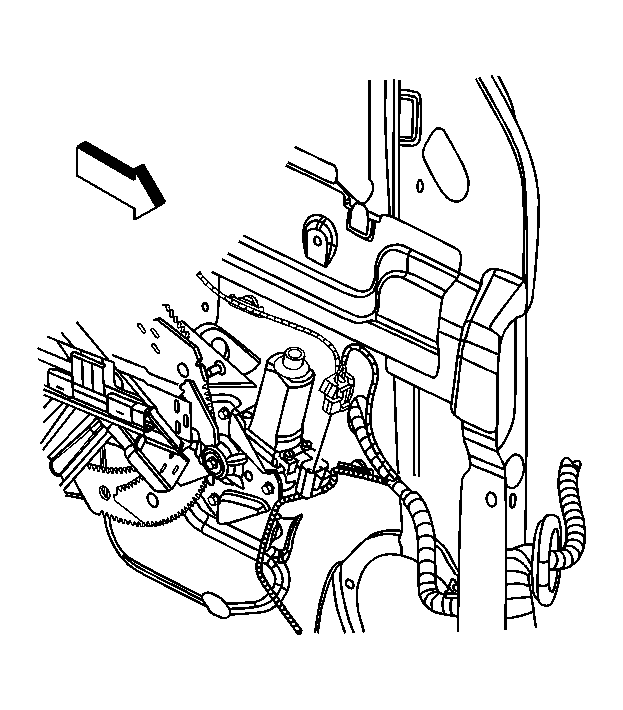

    3. Fig 2: View Of Power Window Regulator Electrical Connector
    GM875249Courtesy of GENERAL MOTORS CORP.
  3. Connect the door window regulator electrical connector.
    4. NOTE: Refer to Fastener Notice .
  4. Install the power window regulator bolts.

    Tighten:  Tighten the regulator bolts to 10 N.m (89 lb in).

    5. Fig 3: Locating Sash Channel & Clips
    GM875246Courtesy of GENERAL MOTORS CORP.
  5. Remove the tape from the window. Push the window down to the regulator sash channel.
  6. Slide the glass sash clips (2) into the window regulator sash channel (1).
  7. Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
  8. Install the radio speaker. Refer to Radio Front Side Door Speaker Replacement .
  9. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
