Installation Procedure

  1. Position the window to the full up position.

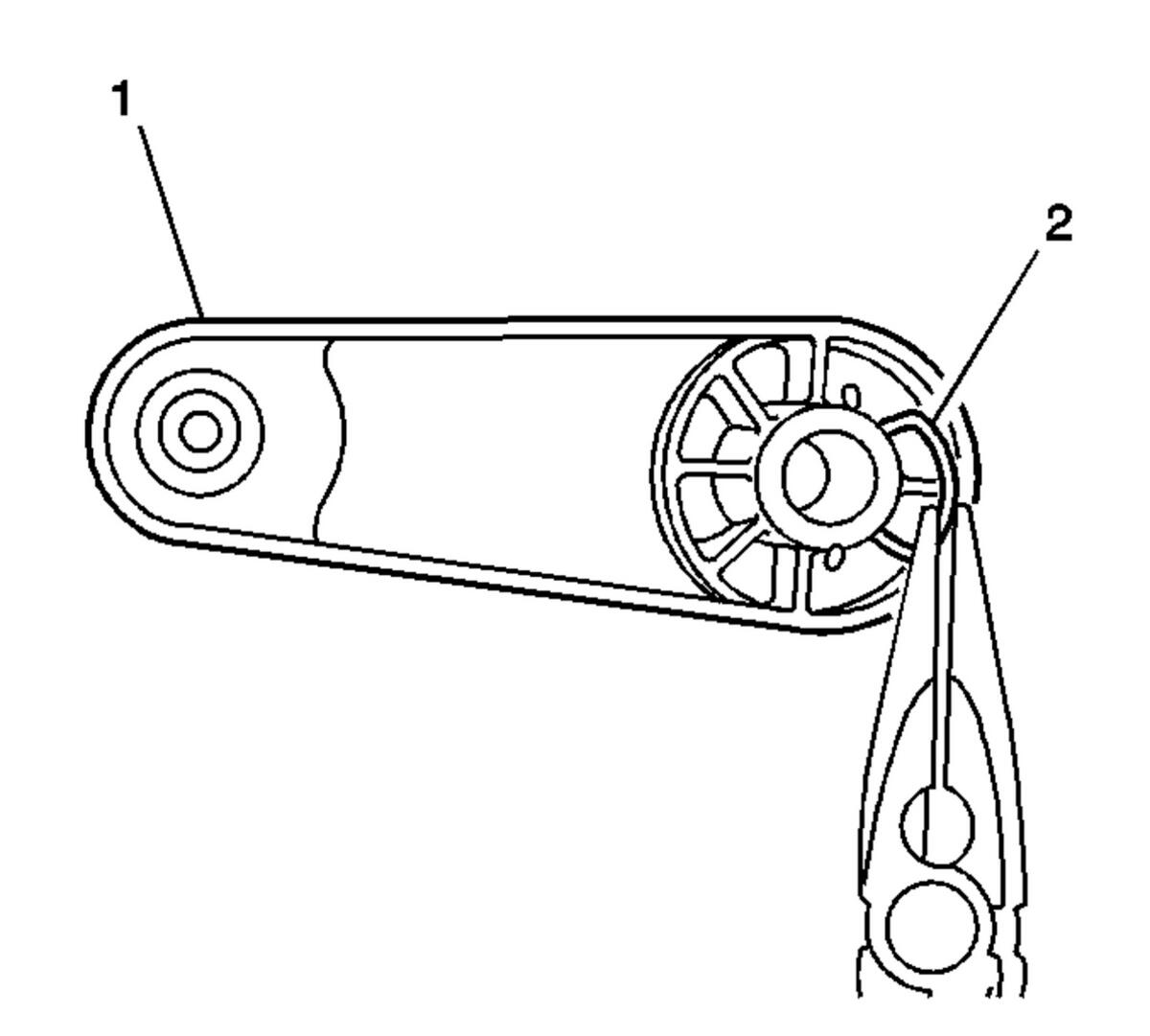

    2. Fig 1: Door Window Regulator Handle & Spring Clip
    GM748354Courtesy of GENERAL MOTORS CORP.
  2. Install the spring clip (2) to the door window regulator handle (1).
  3. Install the door window regulator handle bearing plate.
  4. Position the door window regulator handle to the regulator.
  5. Install the door window regulator handle, press in until fully seated.
