Removal Procedure

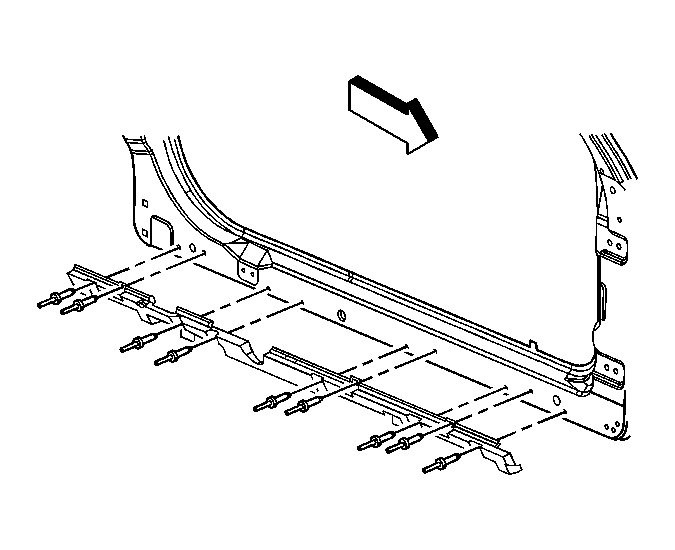

    Fig 1: View Of Rocker Panel Molding Support
    GM863970Courtesy of GENERAL MOTORS CORP.
  1. Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .
  2. Use a 7.5 mm (9/64 in) drill bit to drill out the rivets. Remove the support.
  3. Using a telescoping magnet with a swivel head, remove the remaining rivets from inside the rocker cavity.
