Windshield Wiper Motor Assembly Connector End View

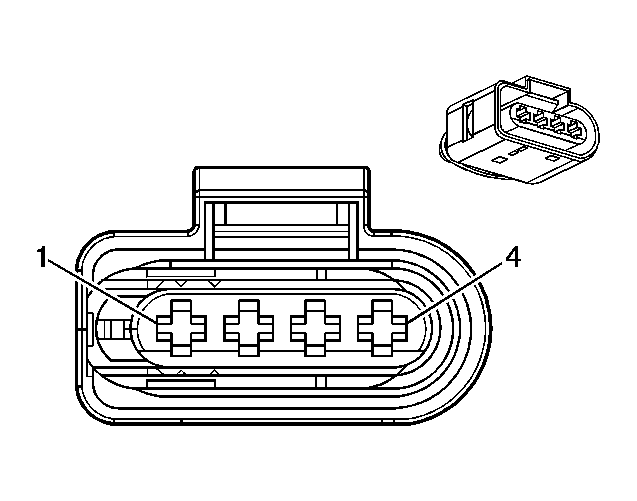

Fig 1: Windshield Wiper Motor Assembly Connector End View
GM878505Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor Assembly Connector & Terminal Parts Information

Connector Part Information
  • OEM: 638245-1
  • Service: 88987987
  • Description: 4-Way F Tyco (BK)
Terminal Part Information
  • Terminal/Tray: 4-964286-1/16
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12093647/J-35616-4A (PU)
Windshield Wiper Motor Assembly Terminal Identification

Pin Wire Color Circuit No. Function
1 PU 92 Windshield Wiper Motor High Speed
2 D-GN 95 Windshield Wiper Motor Low Speed
3 YE 196 Windshield Wiper Motor Park Switch Signal
4 BK 150 Ground
