Power and Grounding Component Views

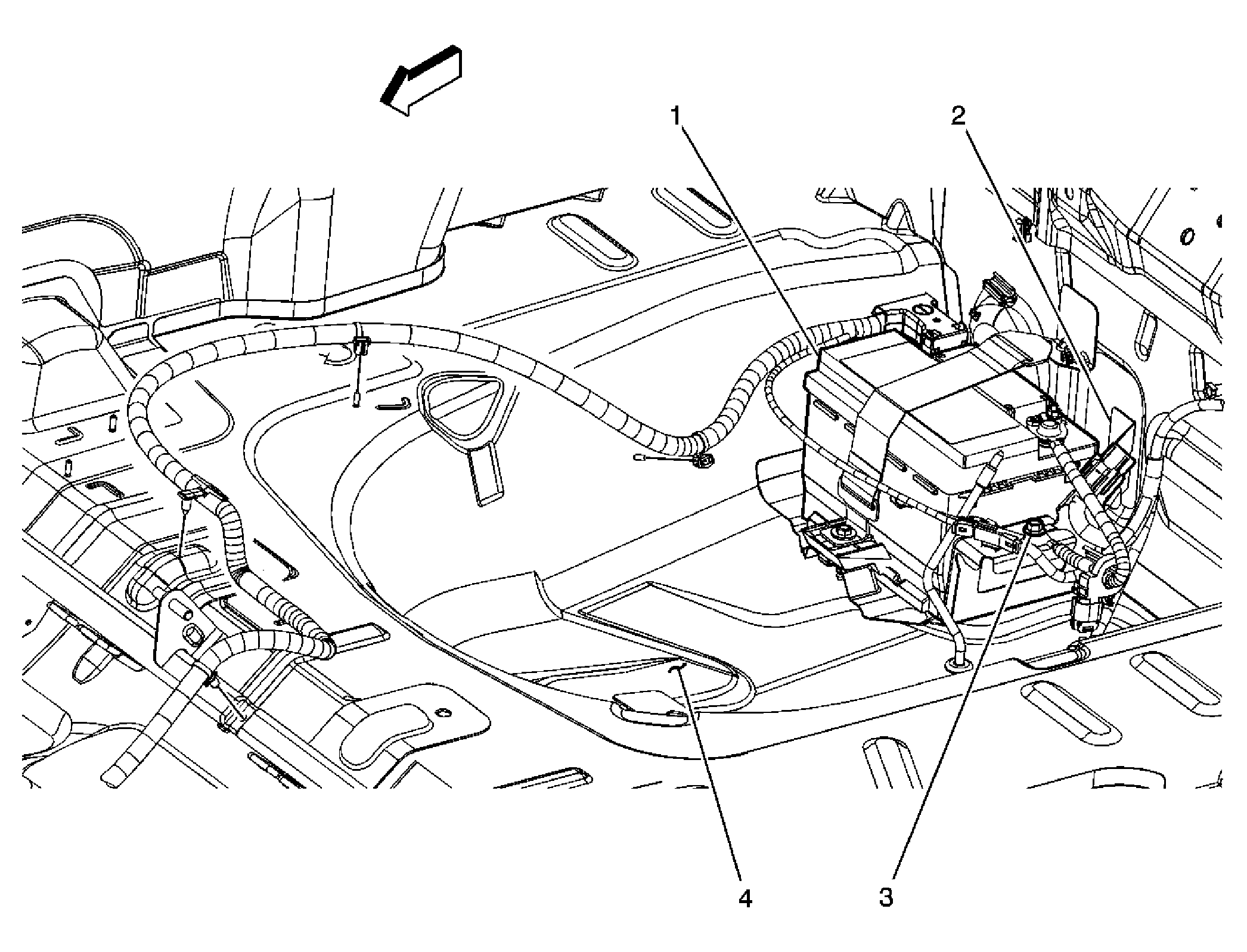

Fig 1: Body Rear End Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery

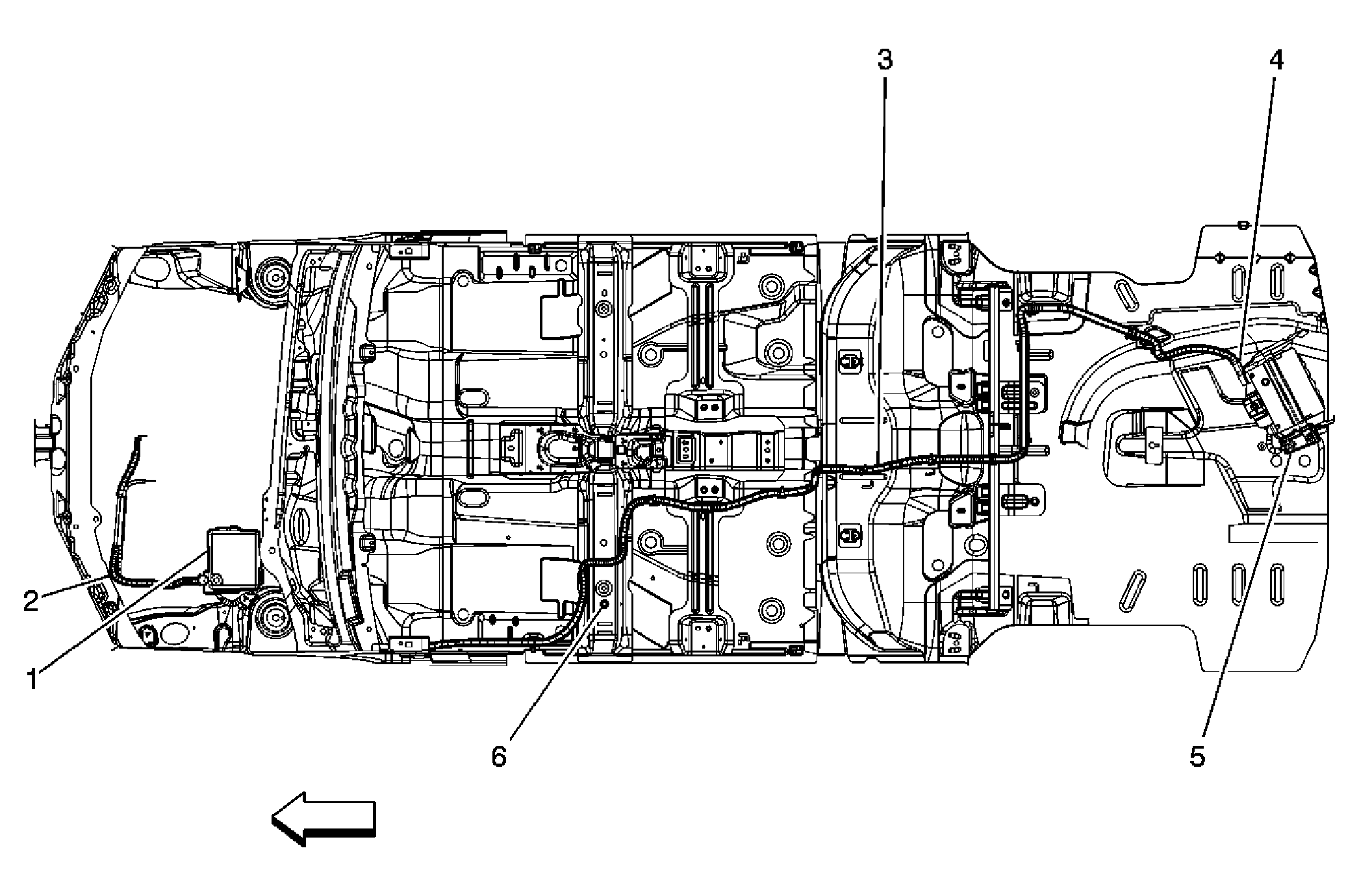

Fig 2: Battery Cable Routing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Center Console Of Vehicle (M43 or M75) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Ignition Lock Cylinder Control Switch
3	A/T Shift Indicator Lamp
4	C351

Fig 4: Rear Floor Pan Components and G502

Courtesy of GENERAL MOTORS CORP.

Fig 5: Lower Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)

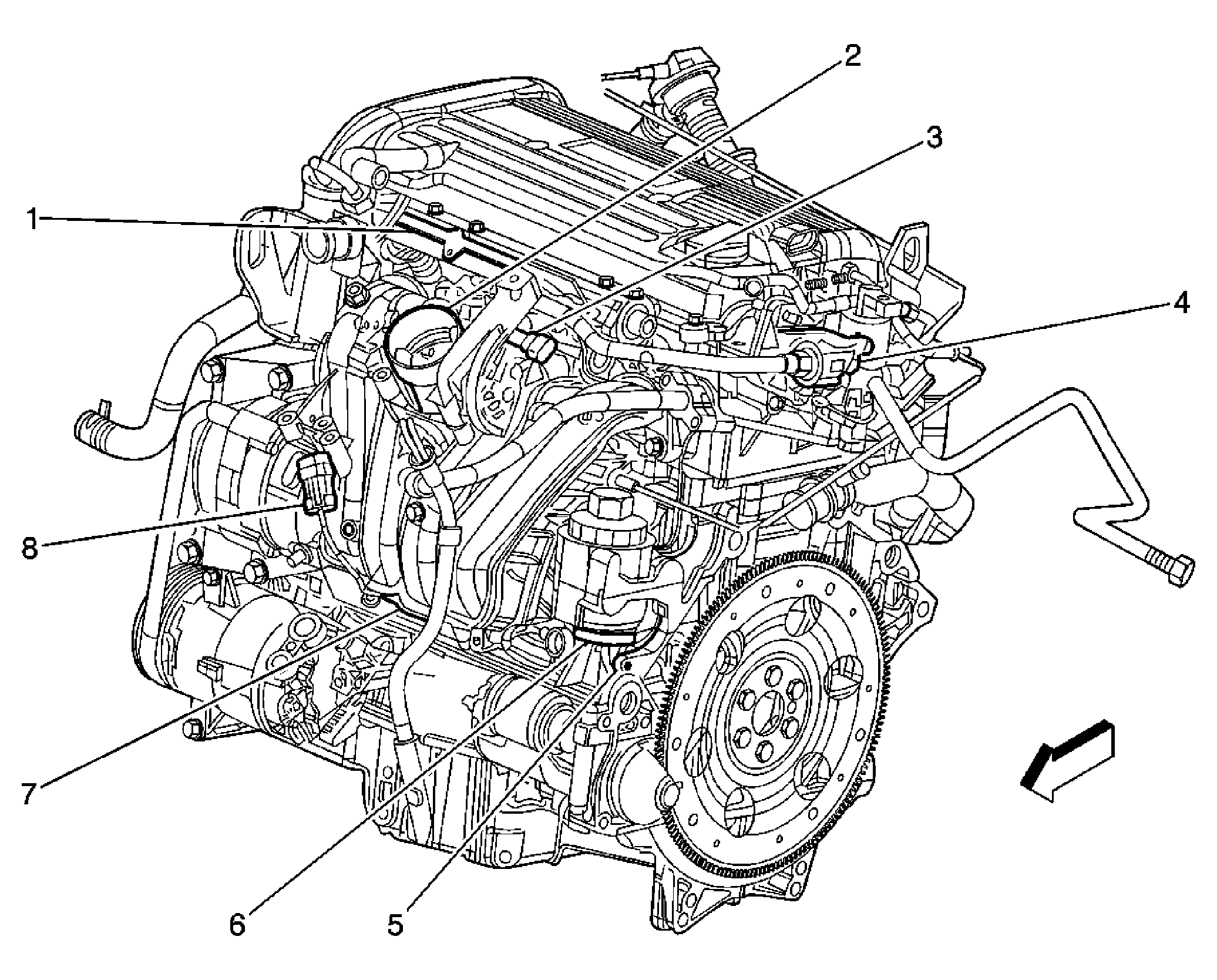

Fig 6: Front Left Side of the Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injectors Rail
2	Throttle Body
3	Manifold Absolute Pressure (MAP) Sensor
4	Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
5	G105 (2.0L Similar)
6	Crankshaft Position (CKP) Sensor
7	Knock Sensor (KS)
8	C150

Fig 7: Rear Shelf Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Fig 8: Left Side Of Engine Compartment Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C121 (DF5)
2	G101
3	Electronic Brake Control Module (EBCM) (JM4/JL9)
4	Engine Control Module (ECM) (2.2L)

Fig 9: Left Side Of Engine Compartment (JM4/JL9) Routing View

Courtesy of GENERAL MOTORS CORP.

Fig 10: Behind Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Fig 11: Under Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Lock Cylinder Control Actuator (MN5)
3	Power Steering Control Module (PSCM)
4	Ignition Switch

Fig 12: Rear View of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)
2	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3	C171 Engine Harness to Body Harness
4	Ignition Coil 4 (2.0L,2.4L)
5	Ignition Coil 3 (2.0L,2.4L)
6	Ignition Coil 2 (2.0L,2.4L)
7	Camshaft Position (CMP) Actuator Solenoid - Intake (2.4L)
8	Camshaft Position (CMP) Actuator Solenoid - Exhaust (2.4L)
9	Ignition Coil 1 (2.0L,2.4L)
10	Vehicle Speed Sensor (VSS) - Automatic Transmission
11	Heated Oxygen Sensor (HO2S) 2
12	Heated Oxygen Sensor (HO2S) 2 Connector
13	Heated Oxygen Sensor (HO2S) 1
14	Park/Neutral Position (PNP) Switch (MN5)
15	Engine Coolant Temperature (ECT) Sensor (2.2L, 2.4L)
16	Camshaft Position (CMP) Actuator Solenoid - Exhaust (2.4L)
17	G107 (2.4L)
18	Fuse Block - Underhood C1
