Cooling System Component Views

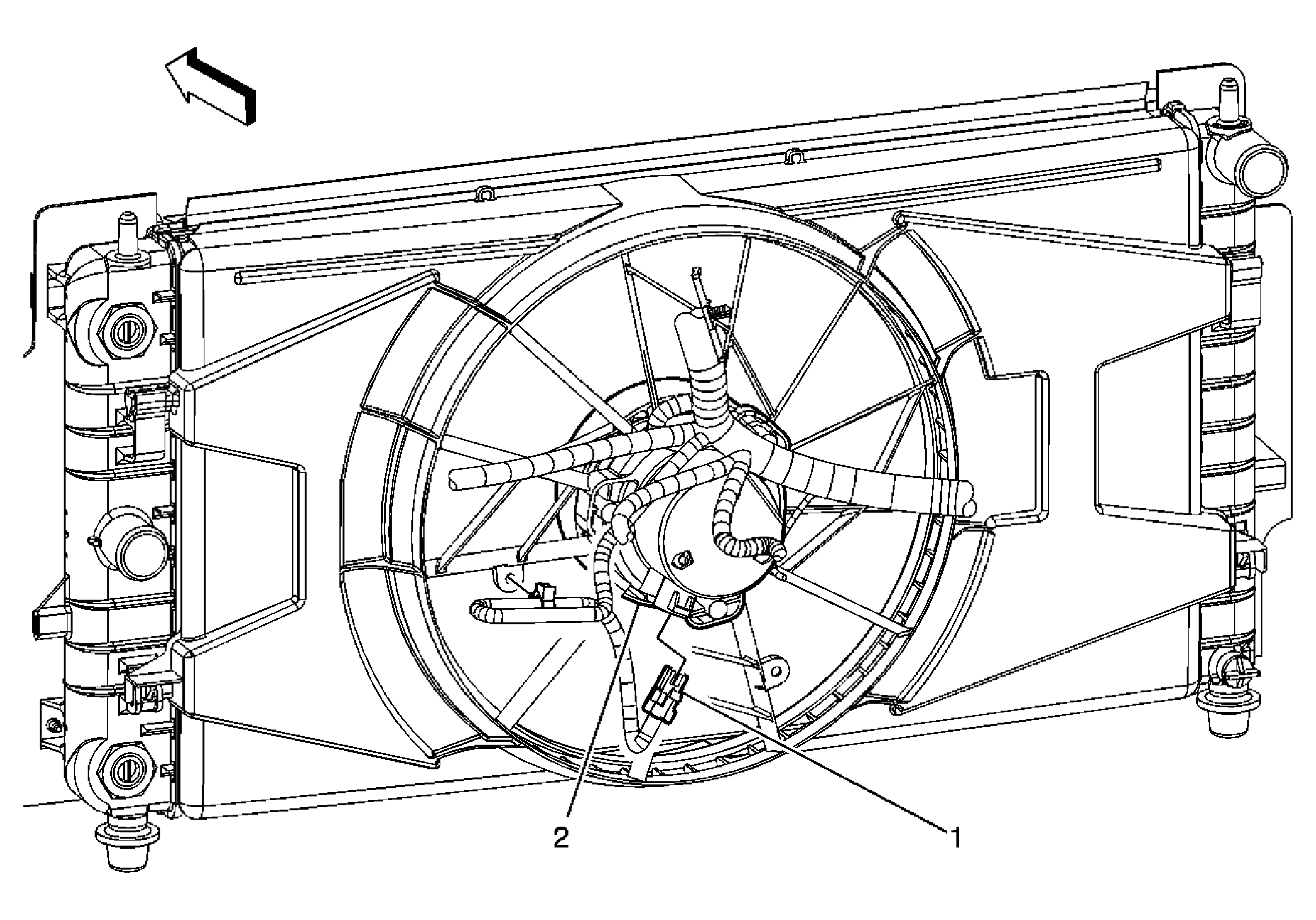

Fig 1: Front Of Engine Compartment Component View (2.2L)
GM1402788Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan Connector
2 Cooling Fan

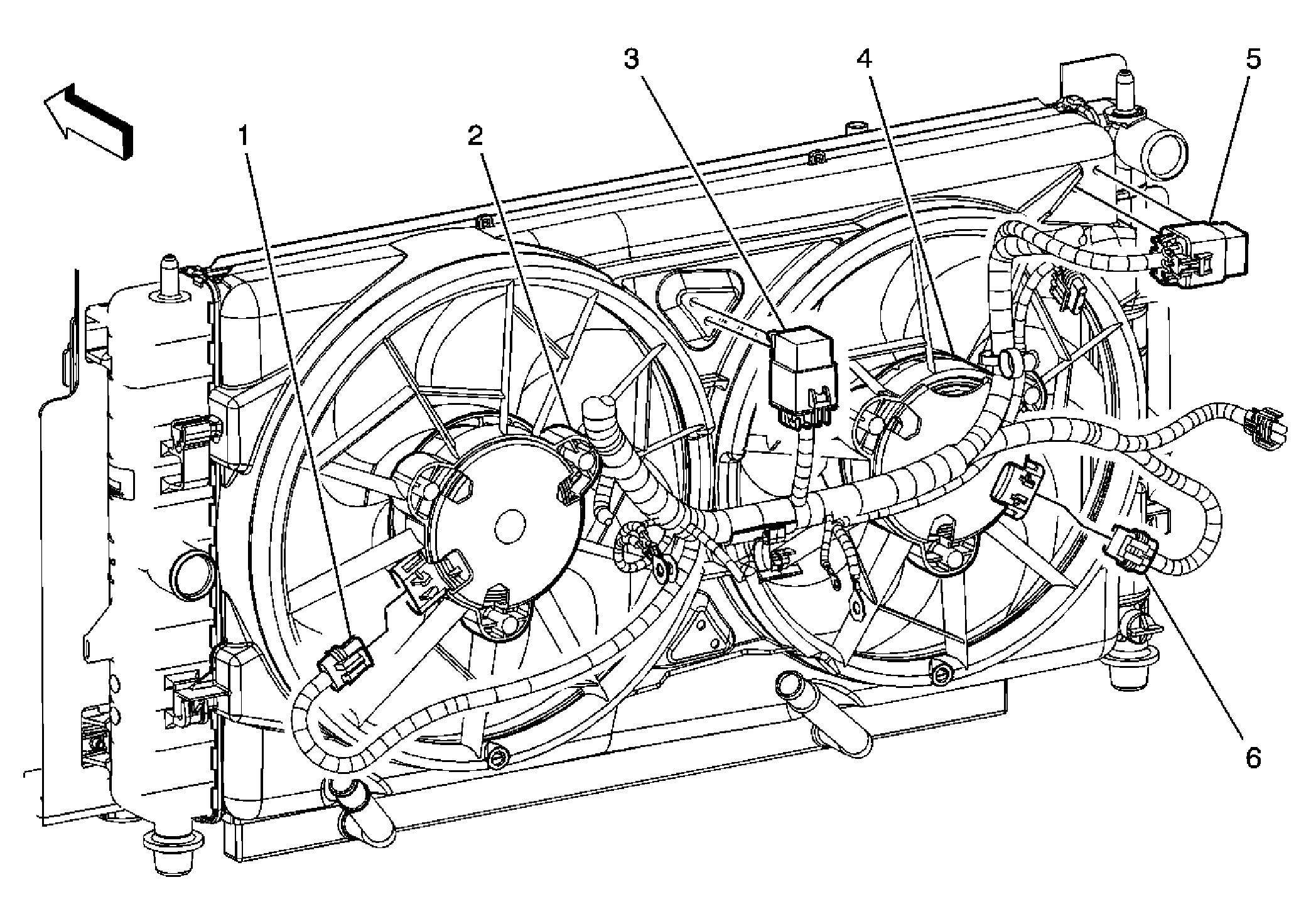

Fig 2: Front Of Engine Compartment Component View (2.0L)
GM1402791Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan 1 Connector
2 Cooling Fan 1
3 Cooling Fan S/P Relay
4 Cooling Fan 2
5 Cooling Fan 2 Relay
6 Cooling Fan 2 Connector

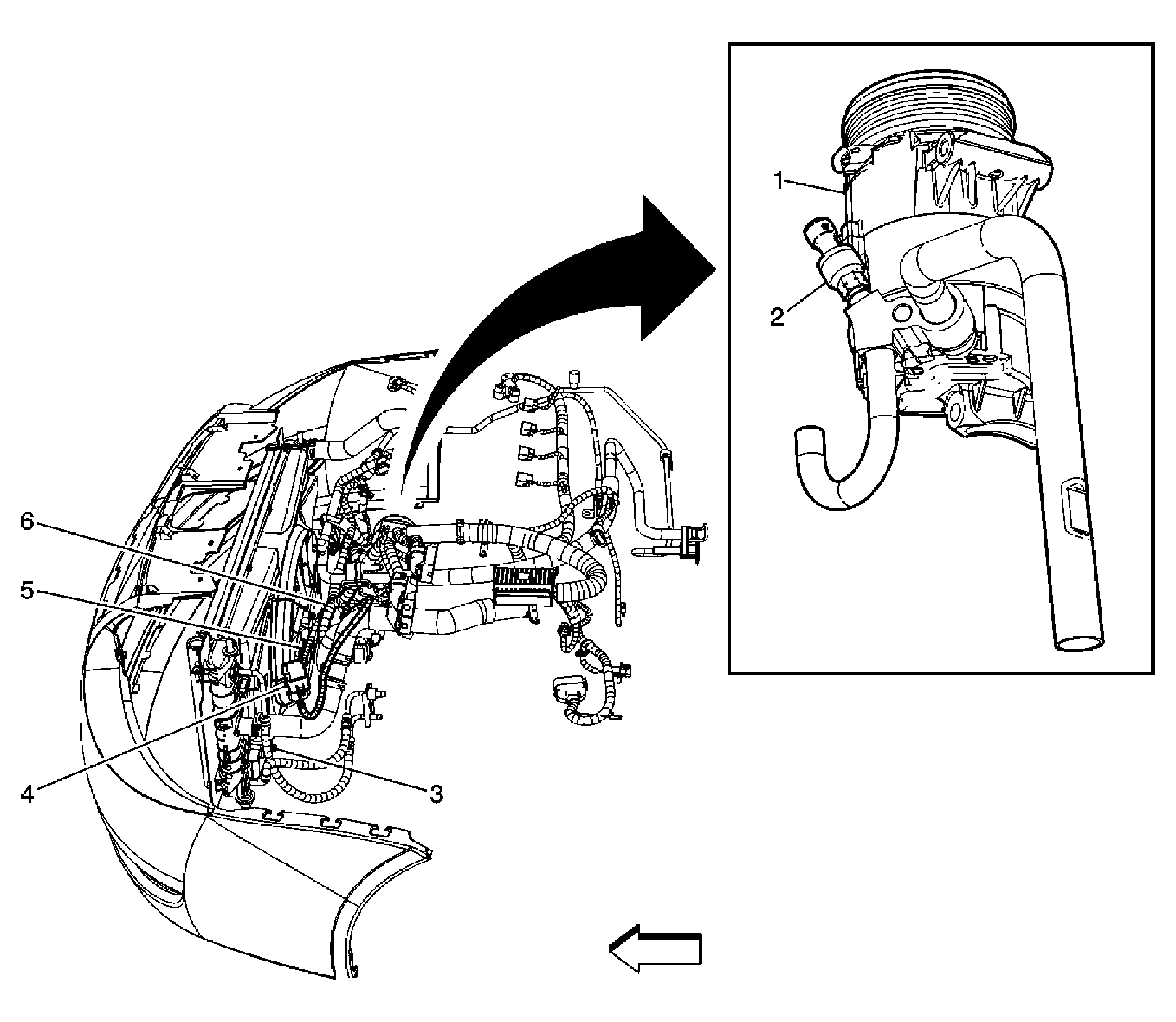

Fig 3: Front of Engine Compartment View
GM1614946Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor
2 A/C Refrigerant Pressure Sensor
3 Cooling Fan Resistor
4 Cooling Fan 2 Relay
5 Cooling Fan Connector
6 Engine Harness

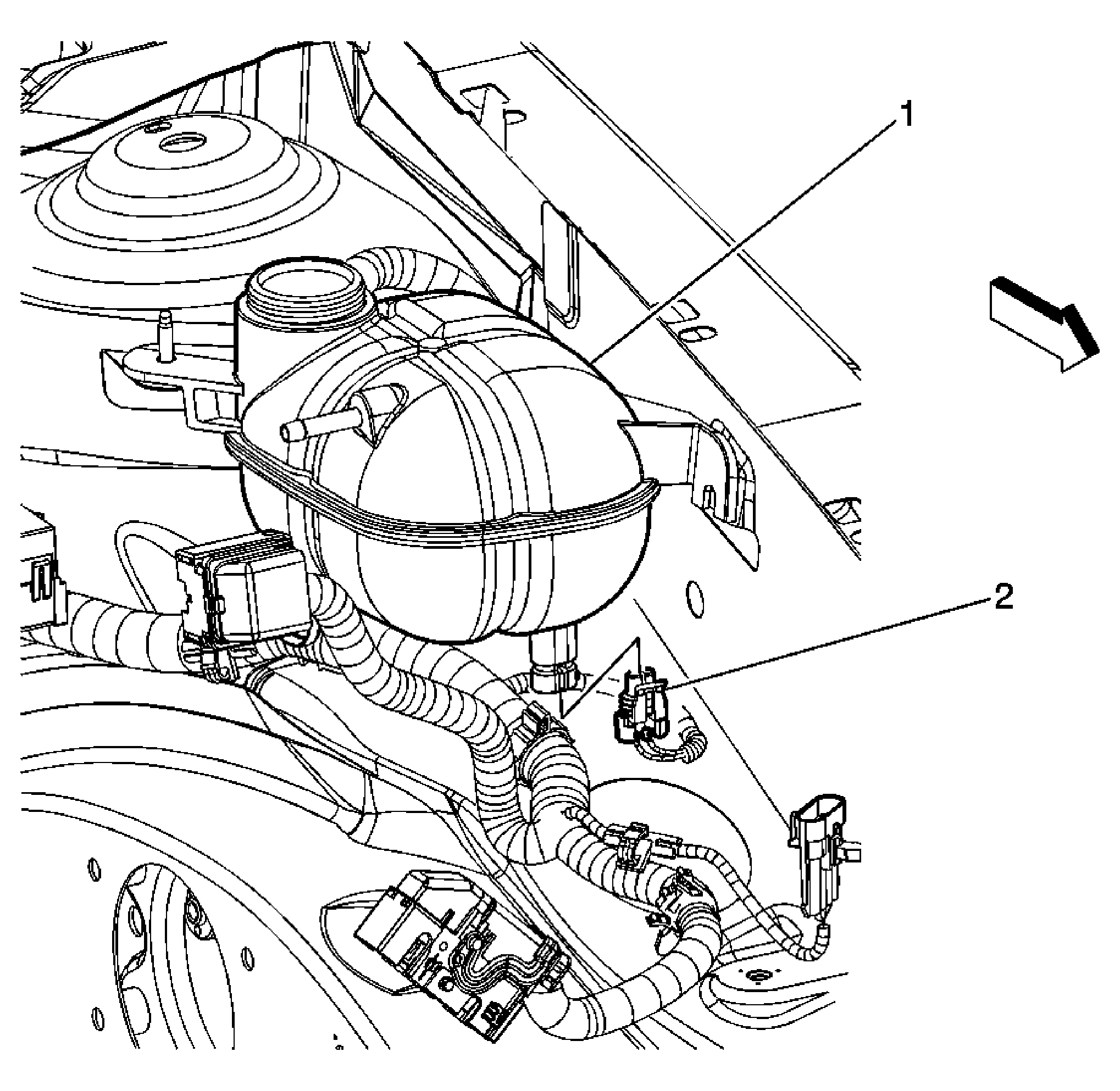

Fig 4: LR Of Engine Compartment Component View
GM1402792Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radiator Surge Tank
2 Coolant Level Switch Connector
