Installation Procedure

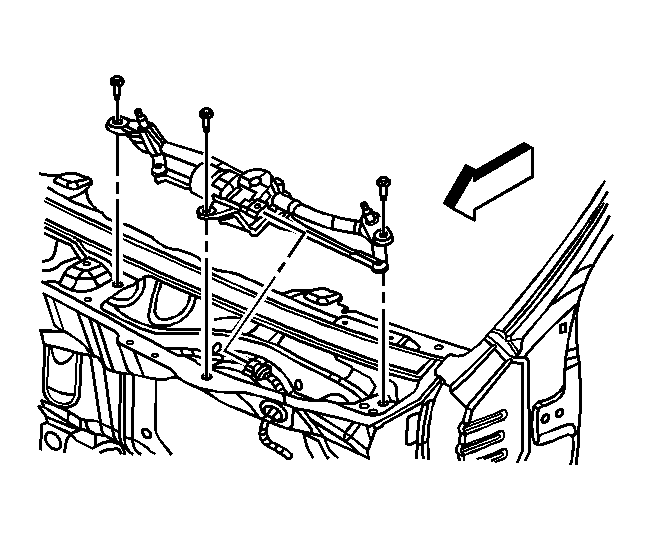

    Fig 1: View Of Wiper Module Assembly
    GM869668Courtesy of GENERAL MOTORS CORP.
  1. Install the wiper module assembly into the plenum.
    2. NOTE: Refer to Fastener Notice .
  2. Install the fasteners attaching the wiper module assembly to the plenum.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in)

  3. Connect the wiring connector to the wiper motor.
  4. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  5. Install the wiper arms. Refer to Wiper Arm Replacement .
