Disassembly Procedure

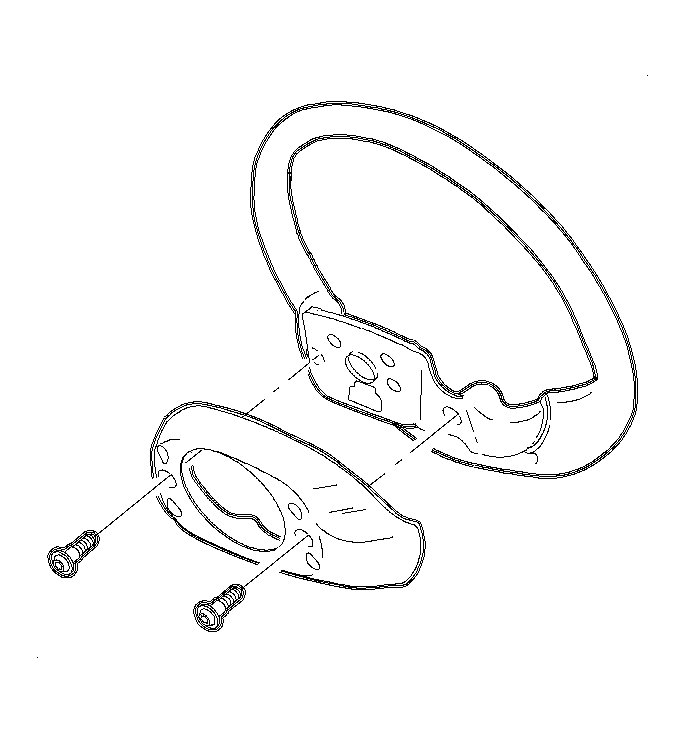

    Fig 1: View Of Steering Wheel Shroud
    GM896729Courtesy of GENERAL MOTORS CORP.
  1. Remove the screws from the steering wheel shroud.
    2. NOTE: Cruise control switches must be removed from the rear. Do not attempt to pry them out from front as damage to steering wheel may occur.
  2. If the vehicle is equipped with cruise control, push the switches out from the rear of the steering wheel.
