Lighting Systems Component Views

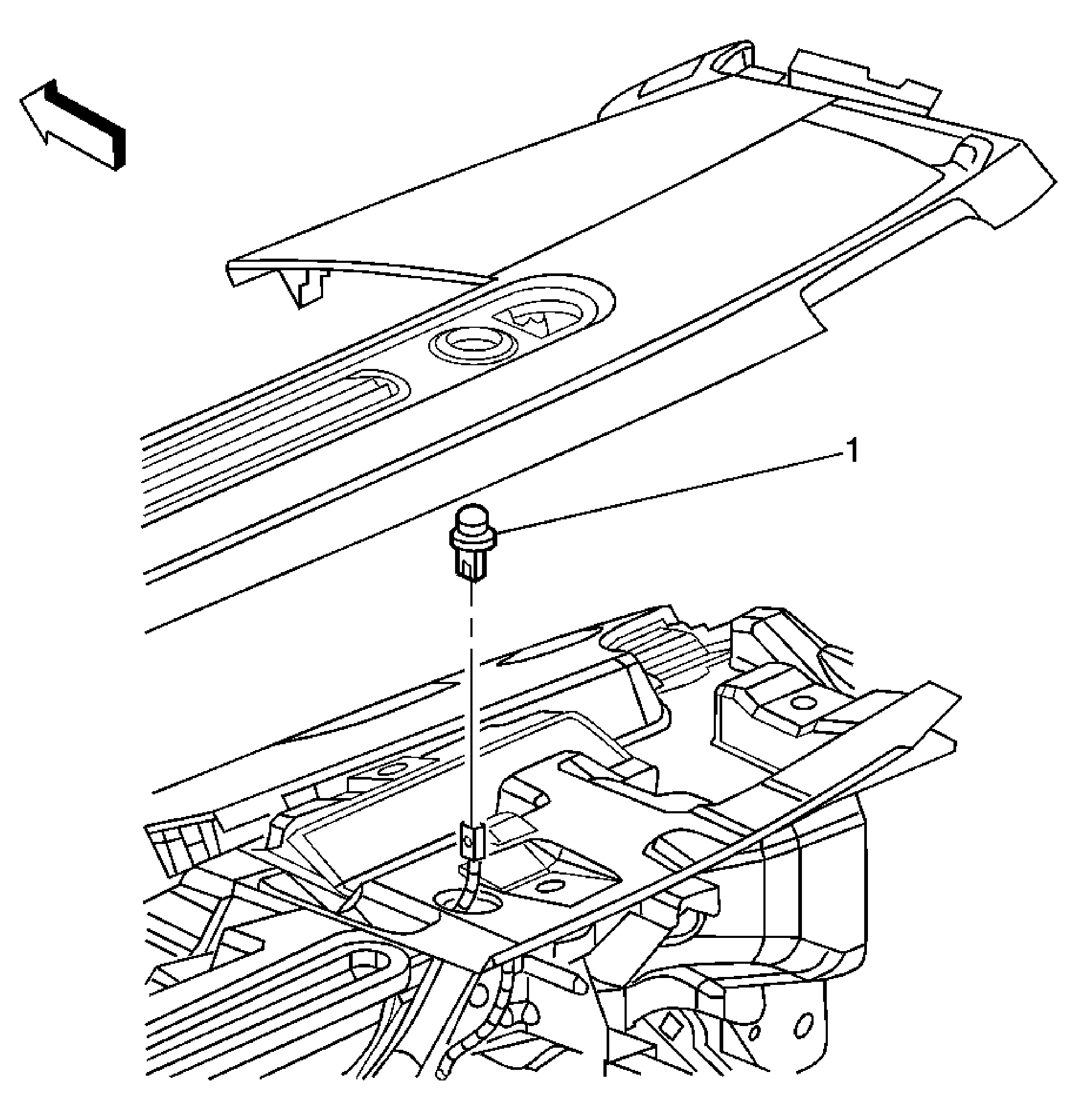

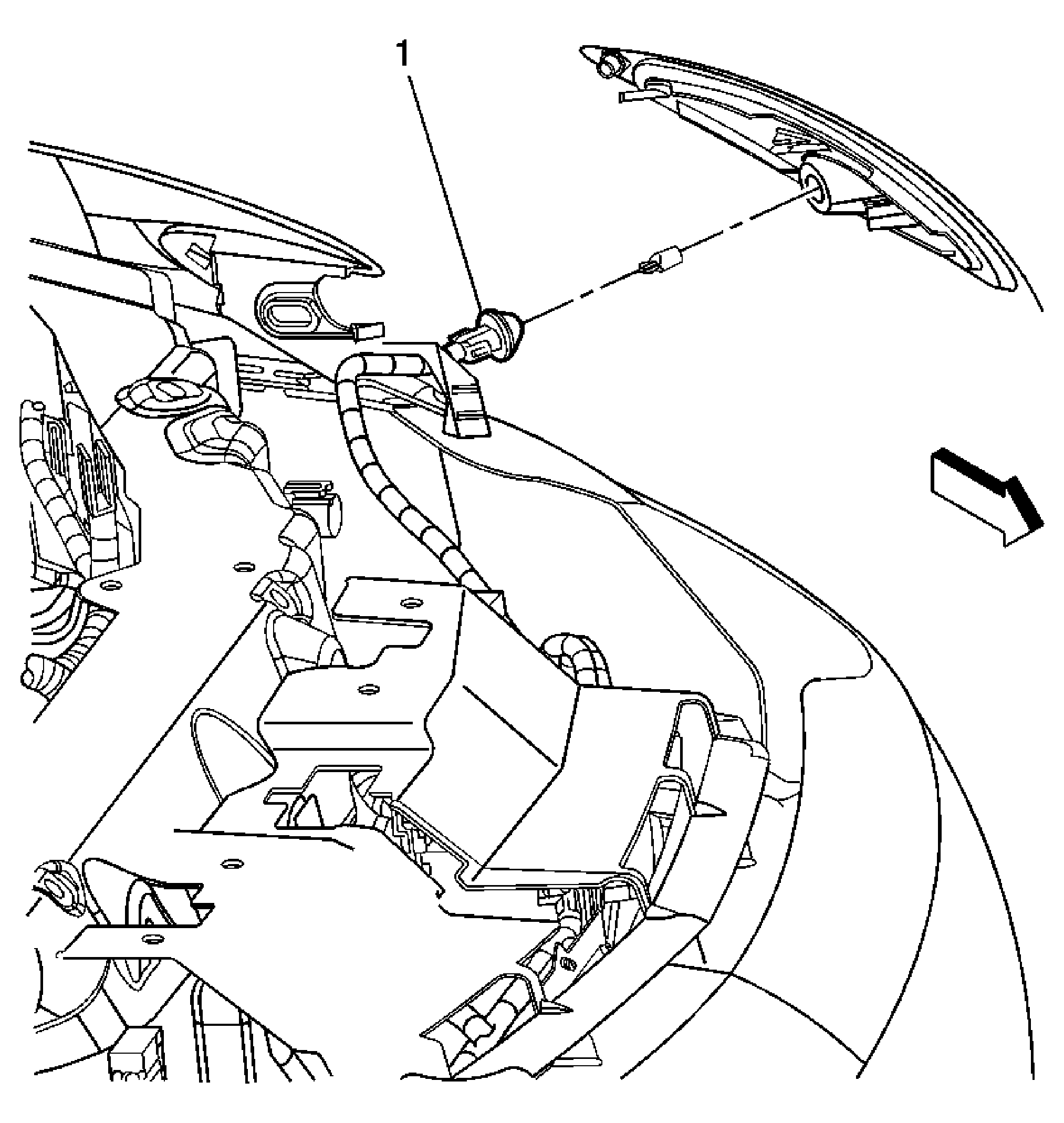

Fig 1: Top Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor (T82)

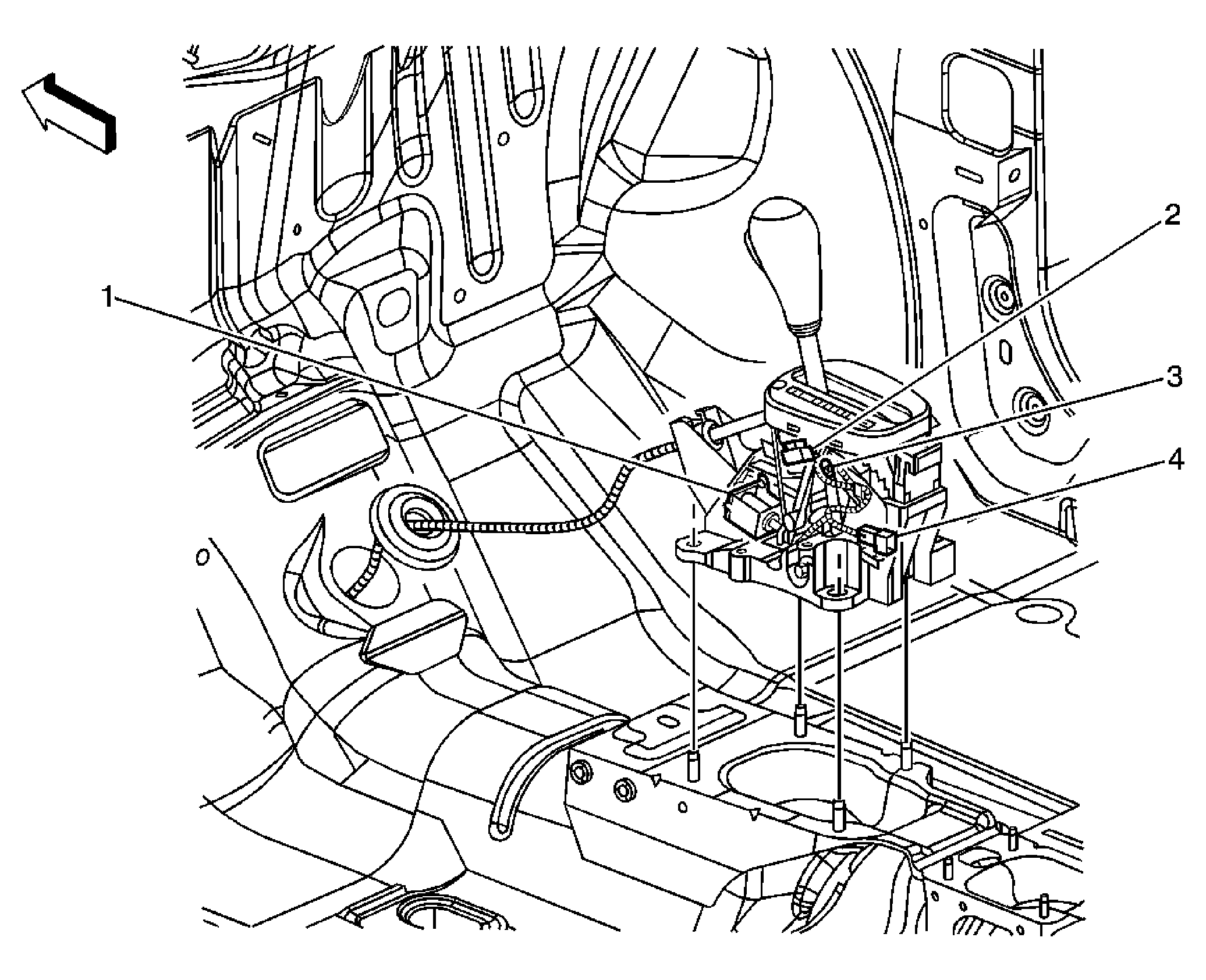

Fig 2: Center Console Of Vehicle (M43 or M75) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Ignition Lock Cylinder Control Switch
3	A/T Shift Indicator Lamp
4	C351

Fig 3: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Outside Rearview Mirror
2	LF Door Tweeter Speaker (UZ6)
3	Driver Door Jamb Switch
4	Instrument Panel (I/P) Dimmer Switch
5	Fog Lamp Switch (T37)
6	Rear Compartment Lid Release Switch
7	LF Door Speaker
8	Outside Rearview Mirror Switch (DG7)
9	Window Switch - Driver (A31)
10	Door Lock Switch - Driver (AU3)

Fig 4: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Passenger Door Jamb Switch
3	RF Door Tweeter Speaker (UZ6)
4	Radio Antenna
5	Passenger Outside Rearview Mirror
6	Front Passenger Door Lock Switch (AU3)
7	Front Passenger Window Switch (A31)
8	RF Door Speaker

Fig 5: Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Speaker
2	Audio Amplifier (UZ6)
3	Rear Compartment Courtesy Lamp
4	RR Speaker

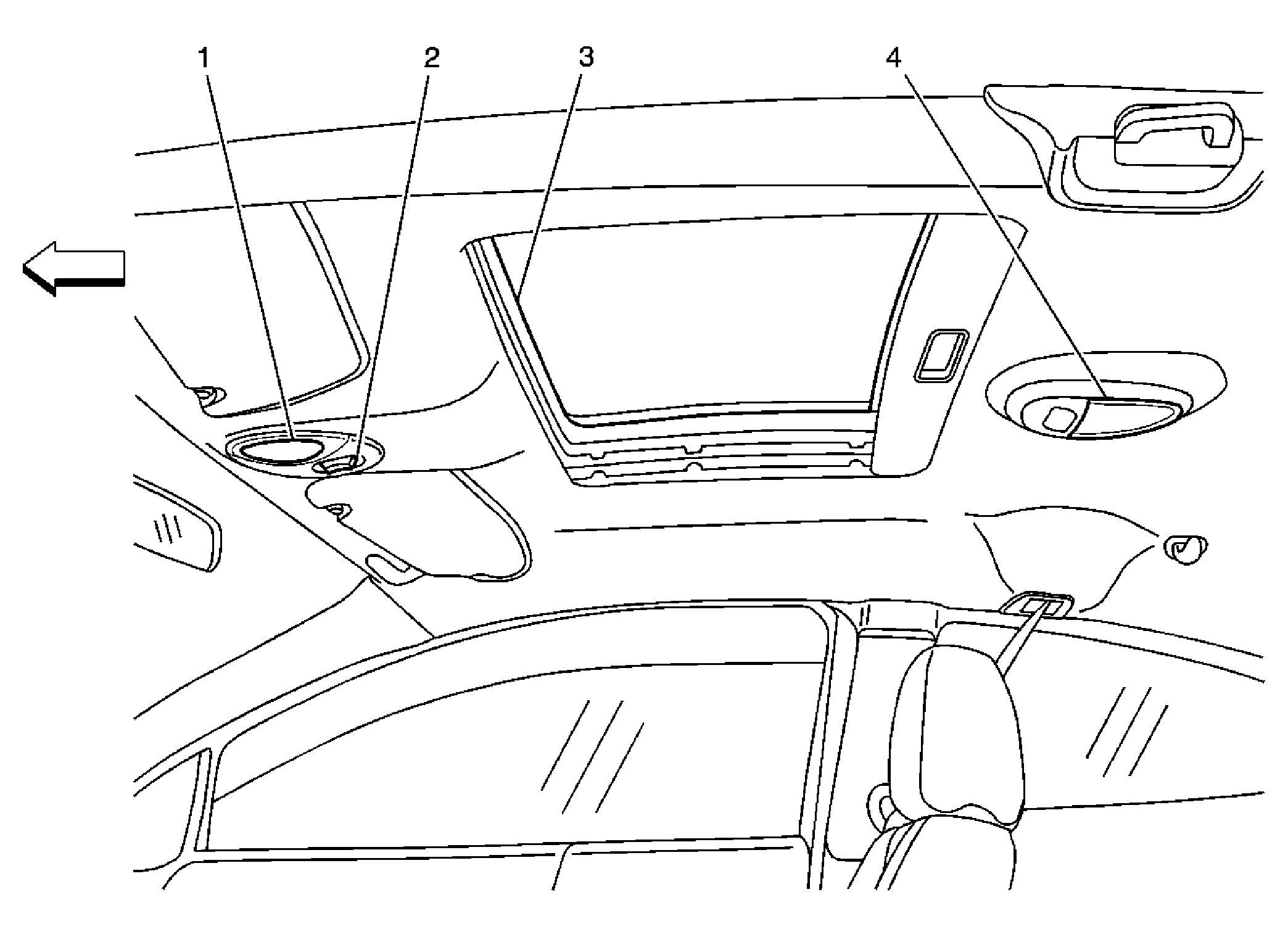

Fig 6: Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp (C74)
2	Sunroof Switch (CF5)
3	Sunroof (CF5)
4	Dome Lamp

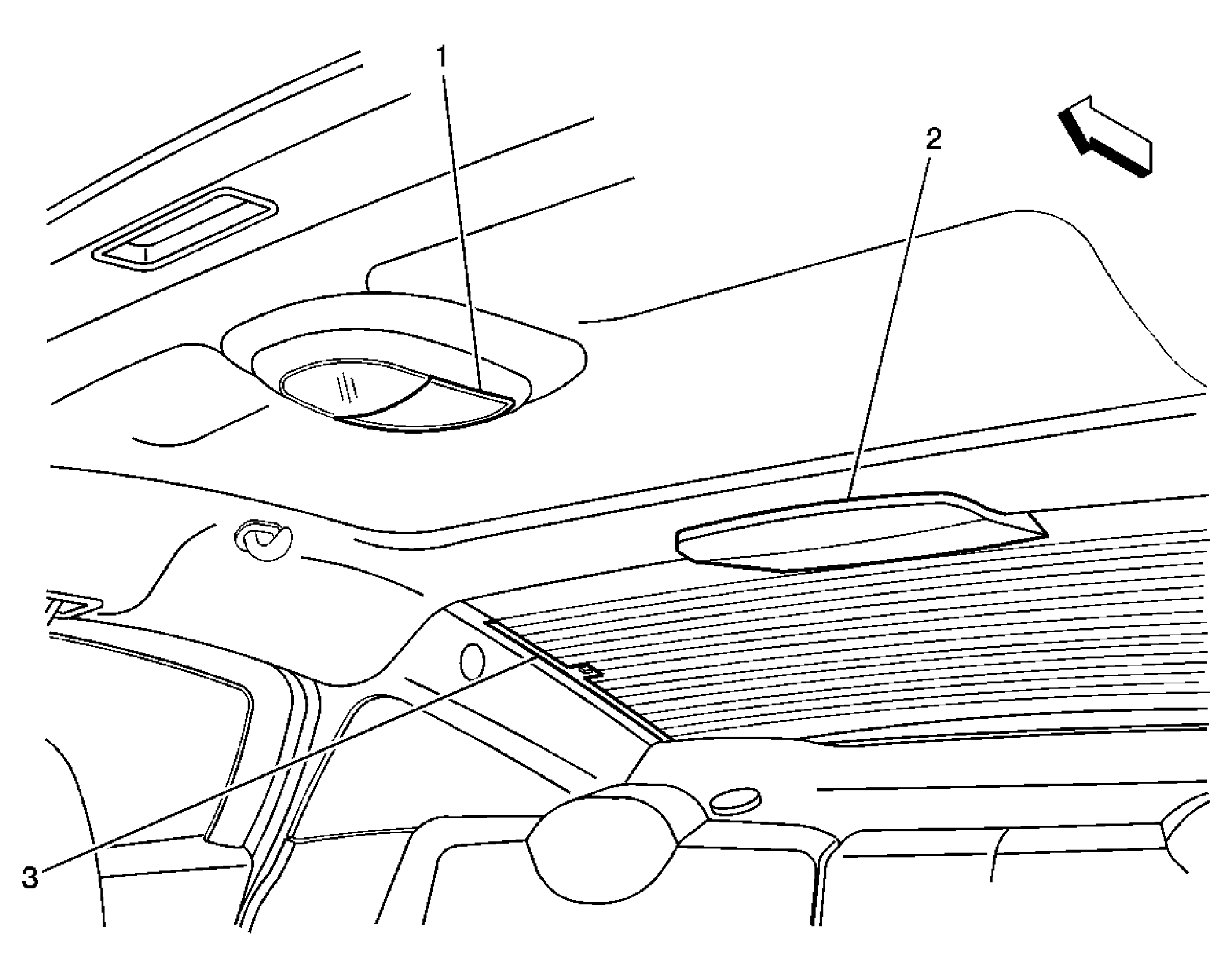

Fig 7: Rear Of Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid

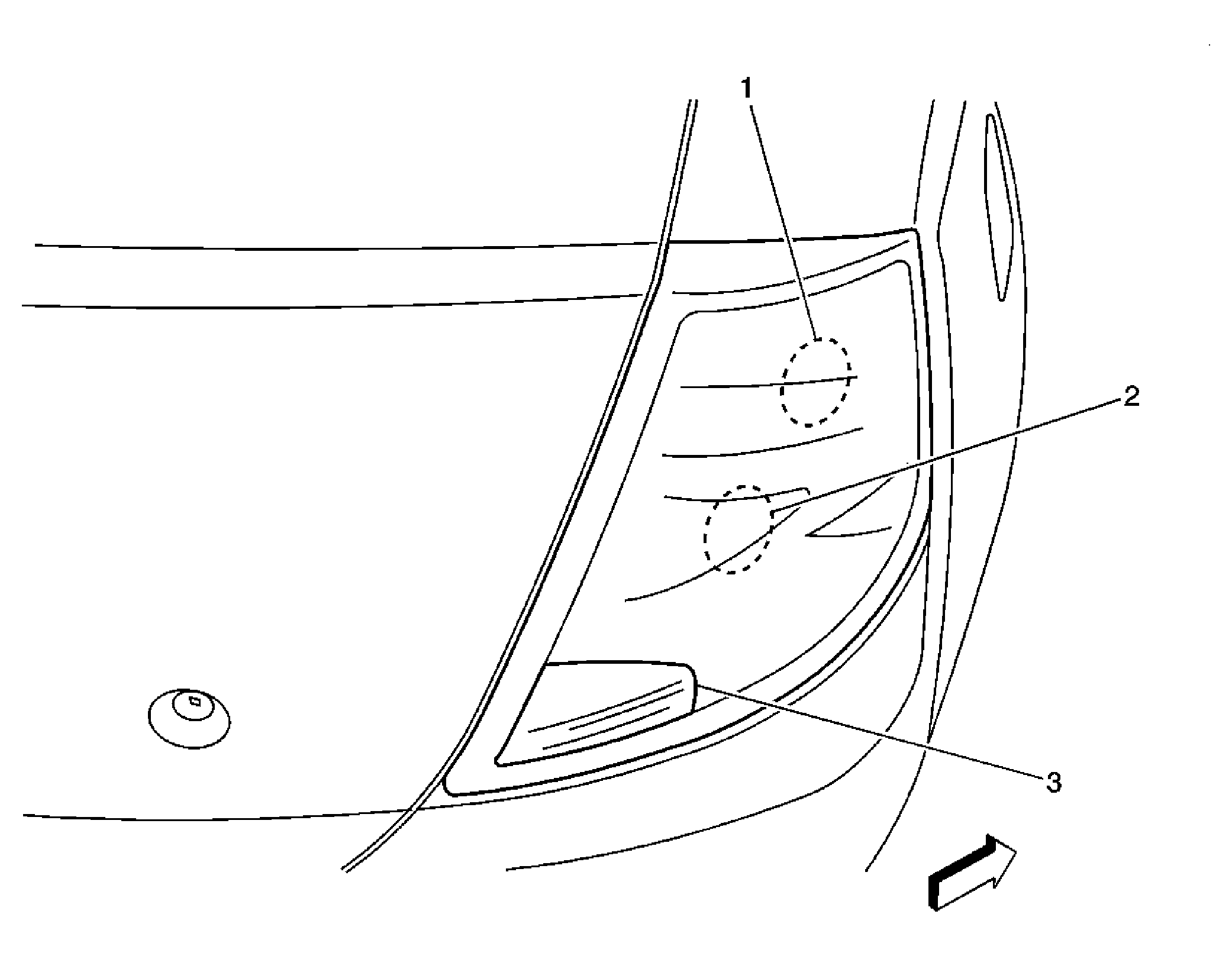

Fig 8: Left Rear End Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Turn Signal Lamp - Left
2	Tail/Stop Lamp - Left
3	Backup Lamp - Left

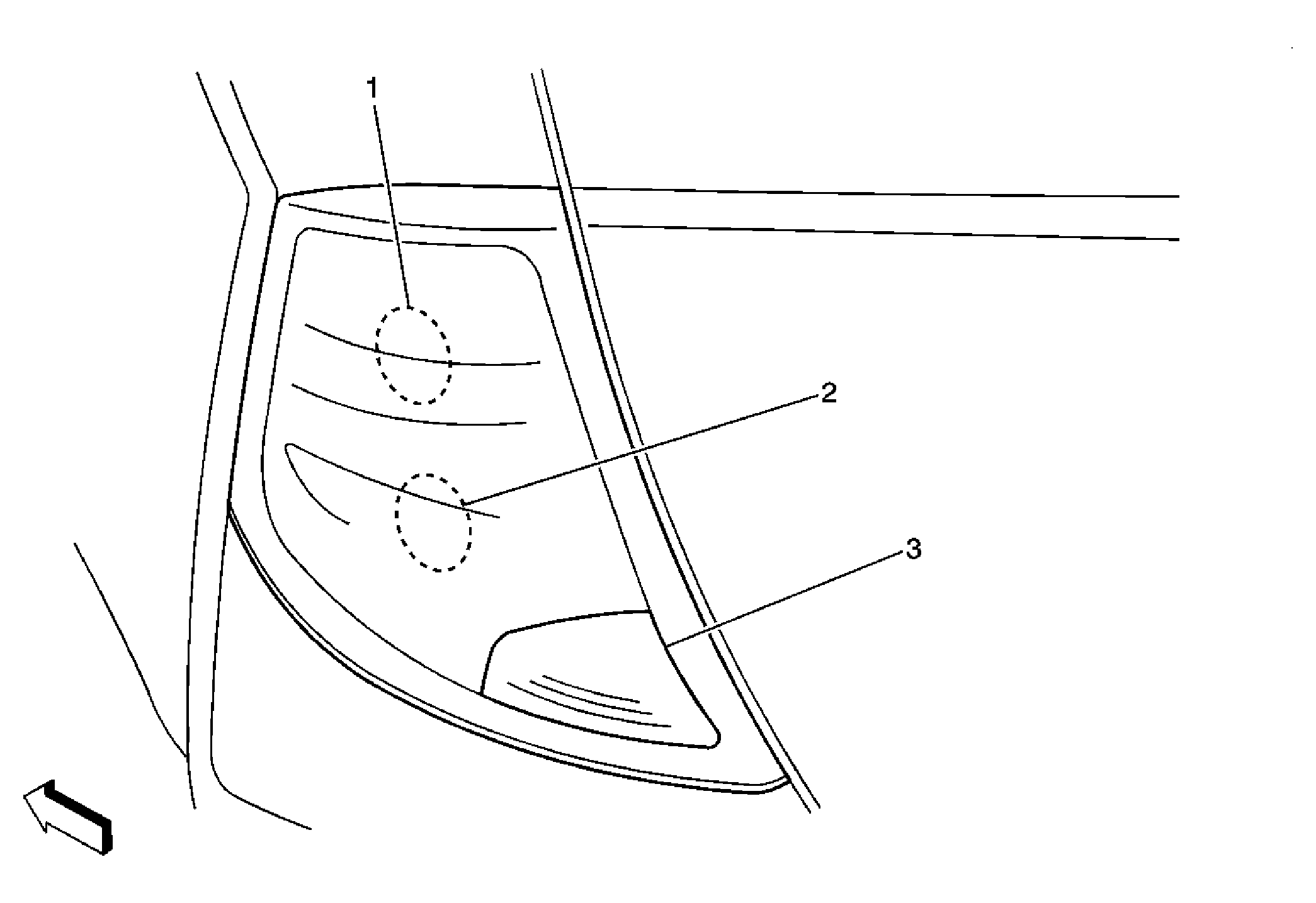

Fig 9: Right Rear End Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Turn Signal Lamp - Right
2	Tail/Stop Lamp - Right
3	Backup Lamp - Right

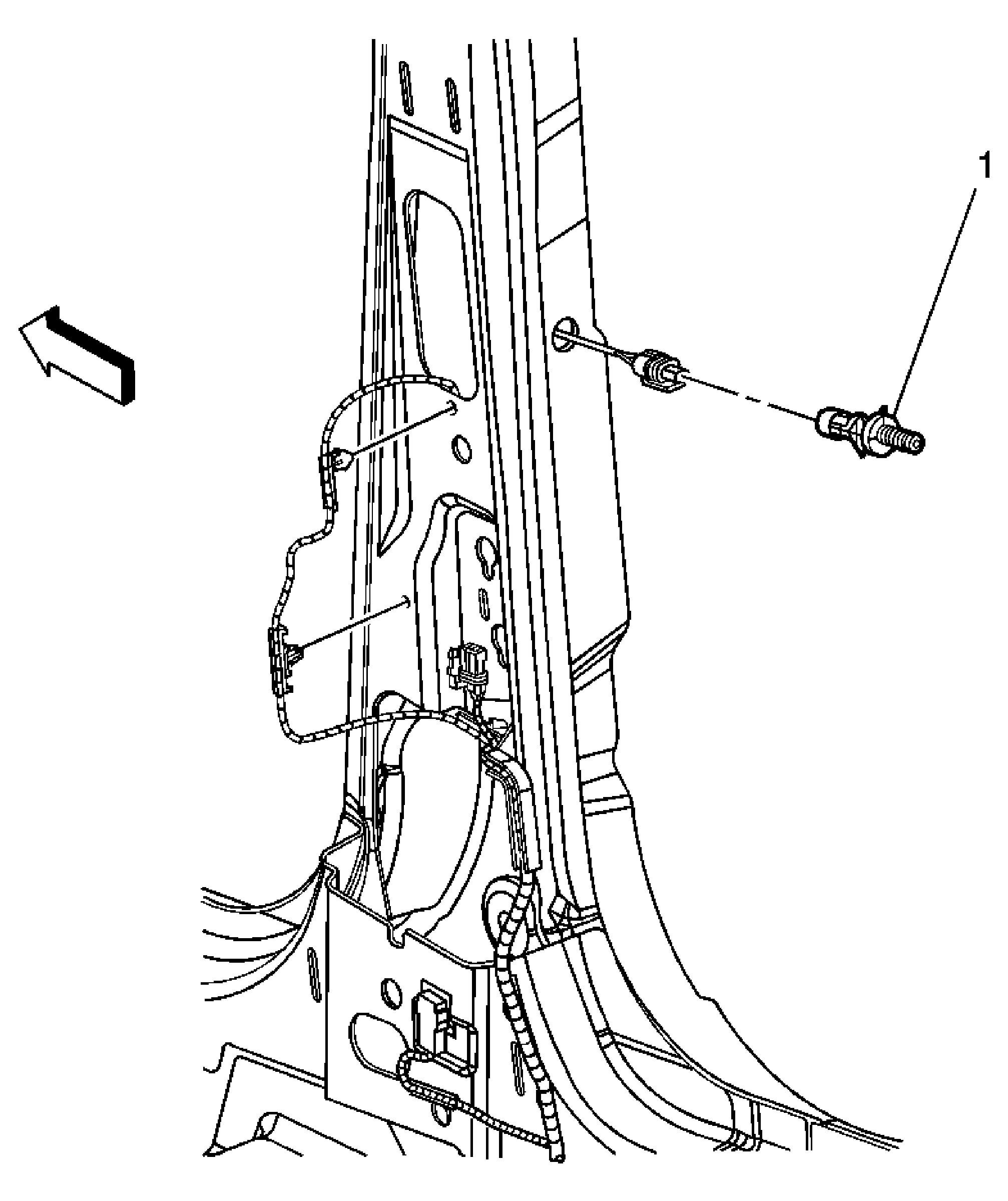

Fig 10: Right Rear Door Jamb Switch In B-Pillar Component View - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - RR, LR Similar

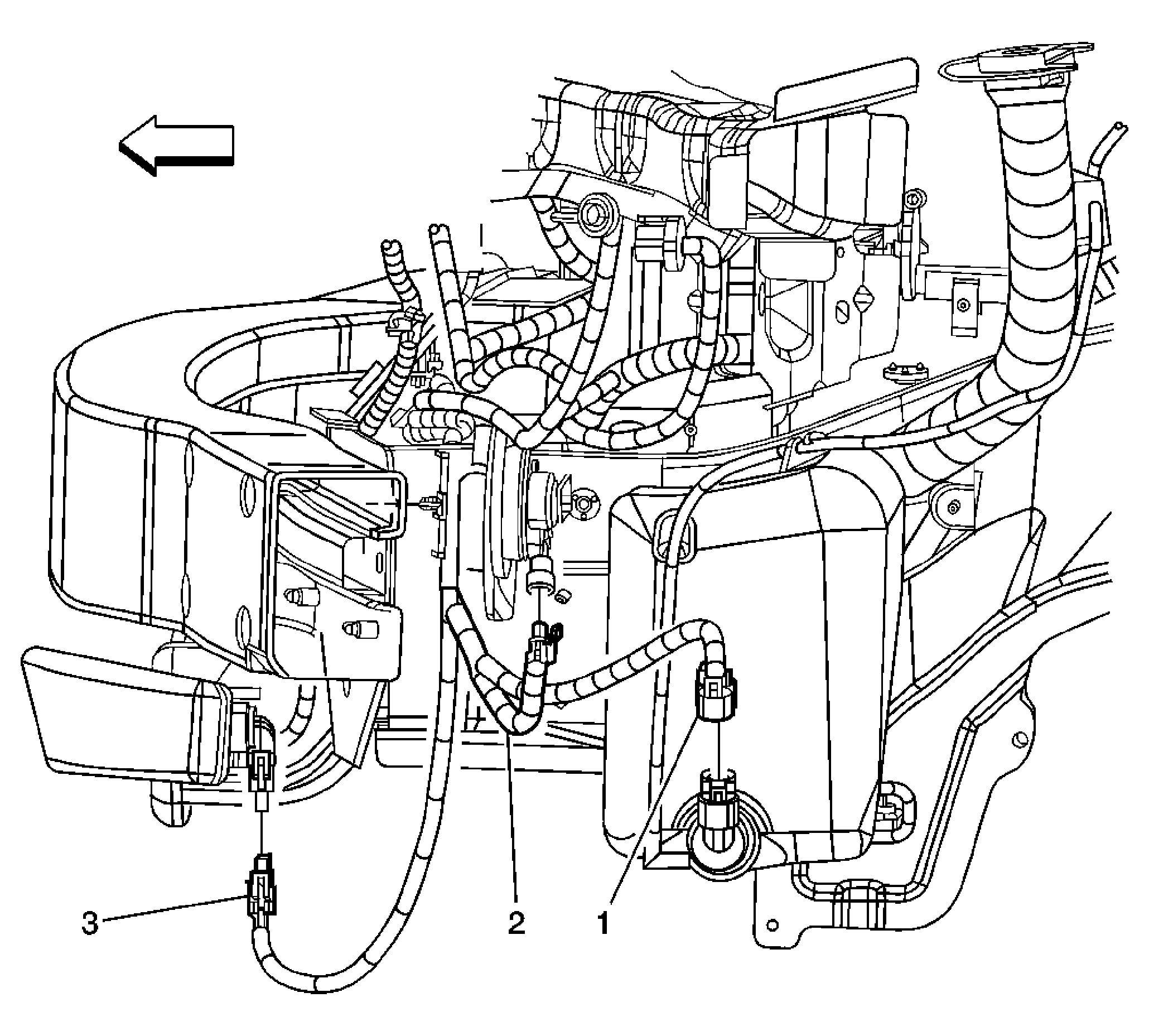

Fig 11: Left Front Side Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Horn
3	Fog Lamp - LF

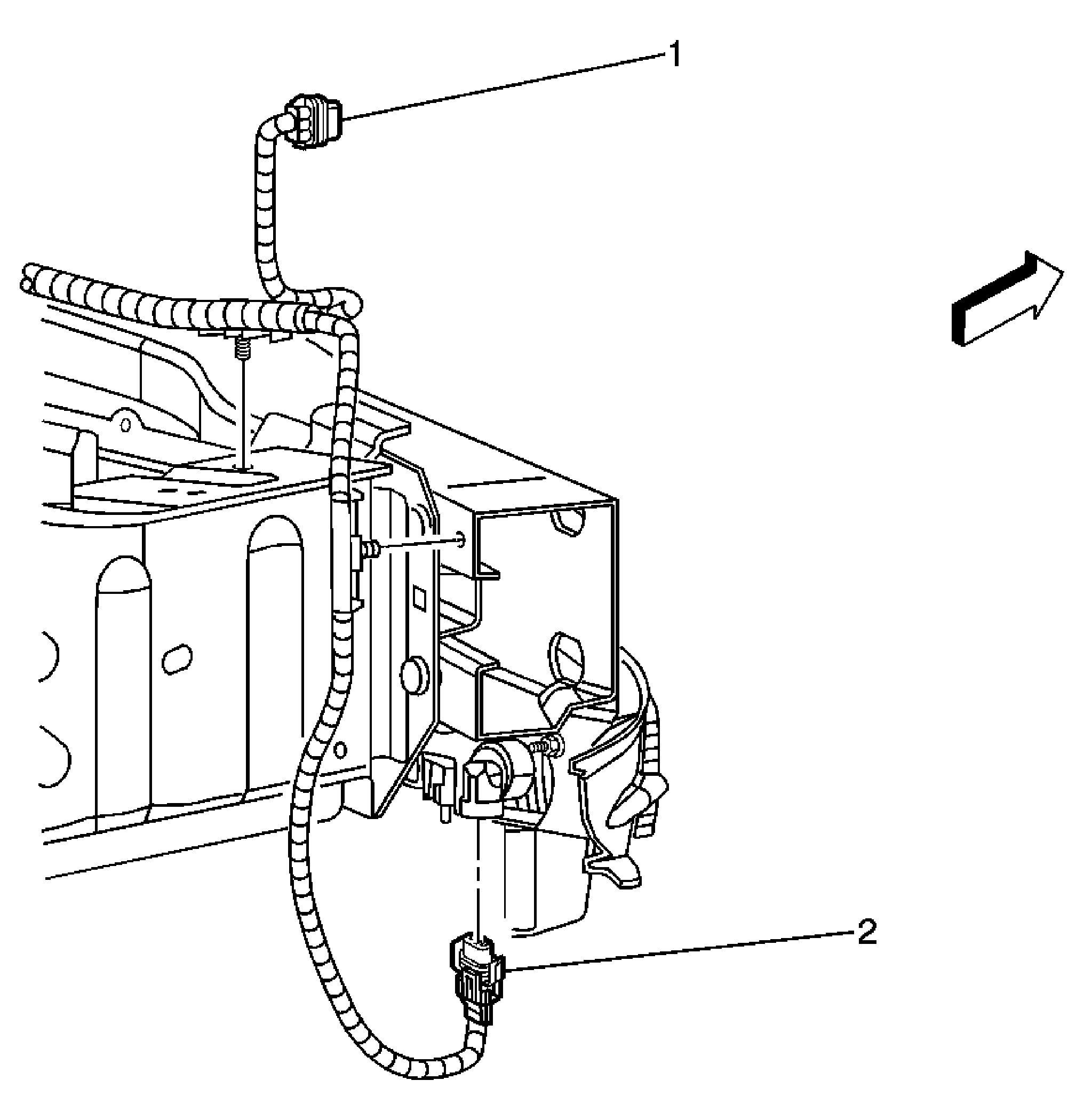

Fig 12: Right Front Of Vehicle (T37) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C110
2	Fog Lamp RF

Fig 13: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (MN5)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch

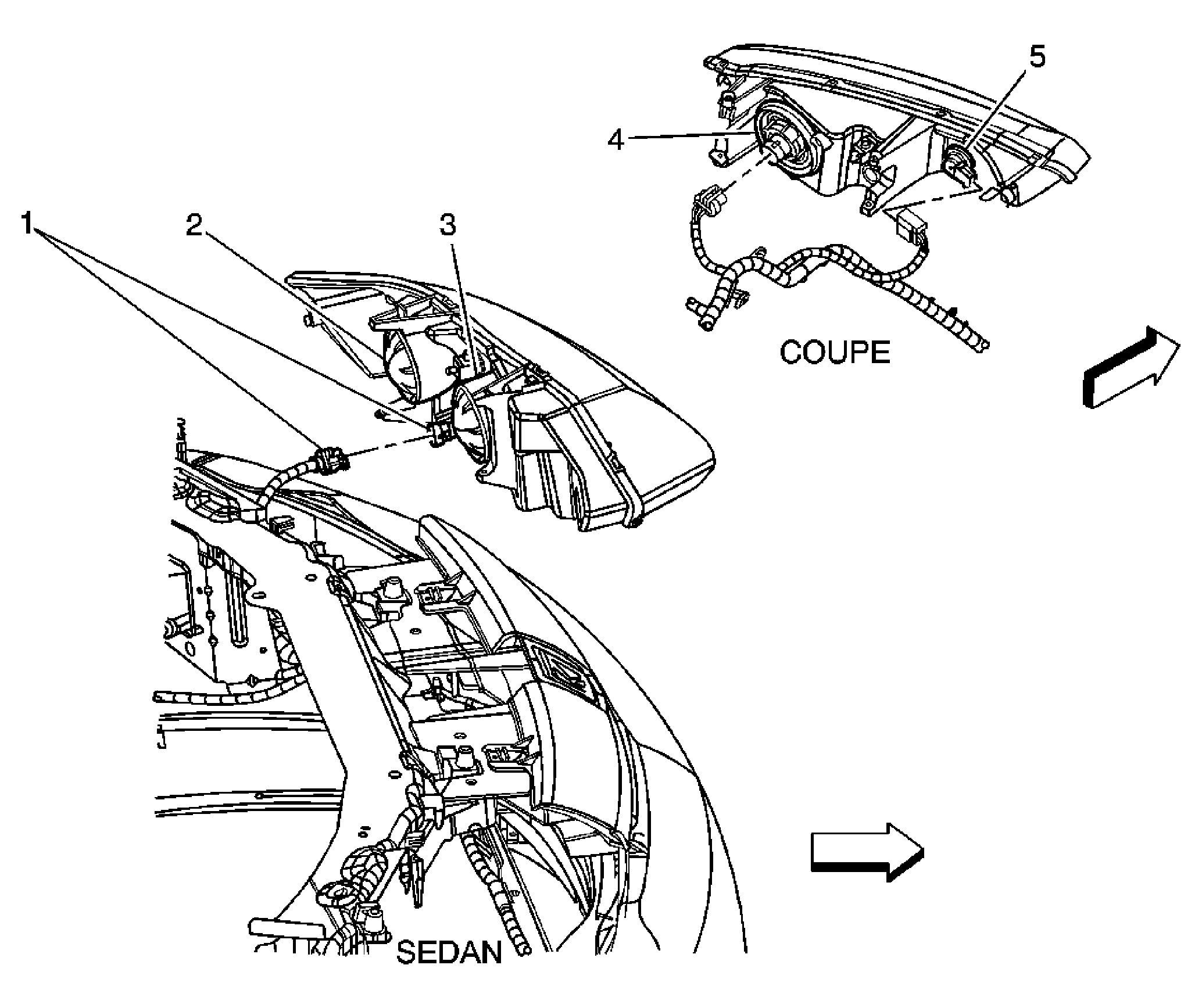

Fig 14: Left Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111 (Sedan), C110 Similar on Right
2	Park/Turn Signal Lamp - LF (Sedan), RF Similar
3	Headlamp - Left (Sedan), Right Similar
4	Headlamp - Left (Coupe), Right Similar
5	Park/Turn Signal Lamp - LF (Coupe), RF Similar

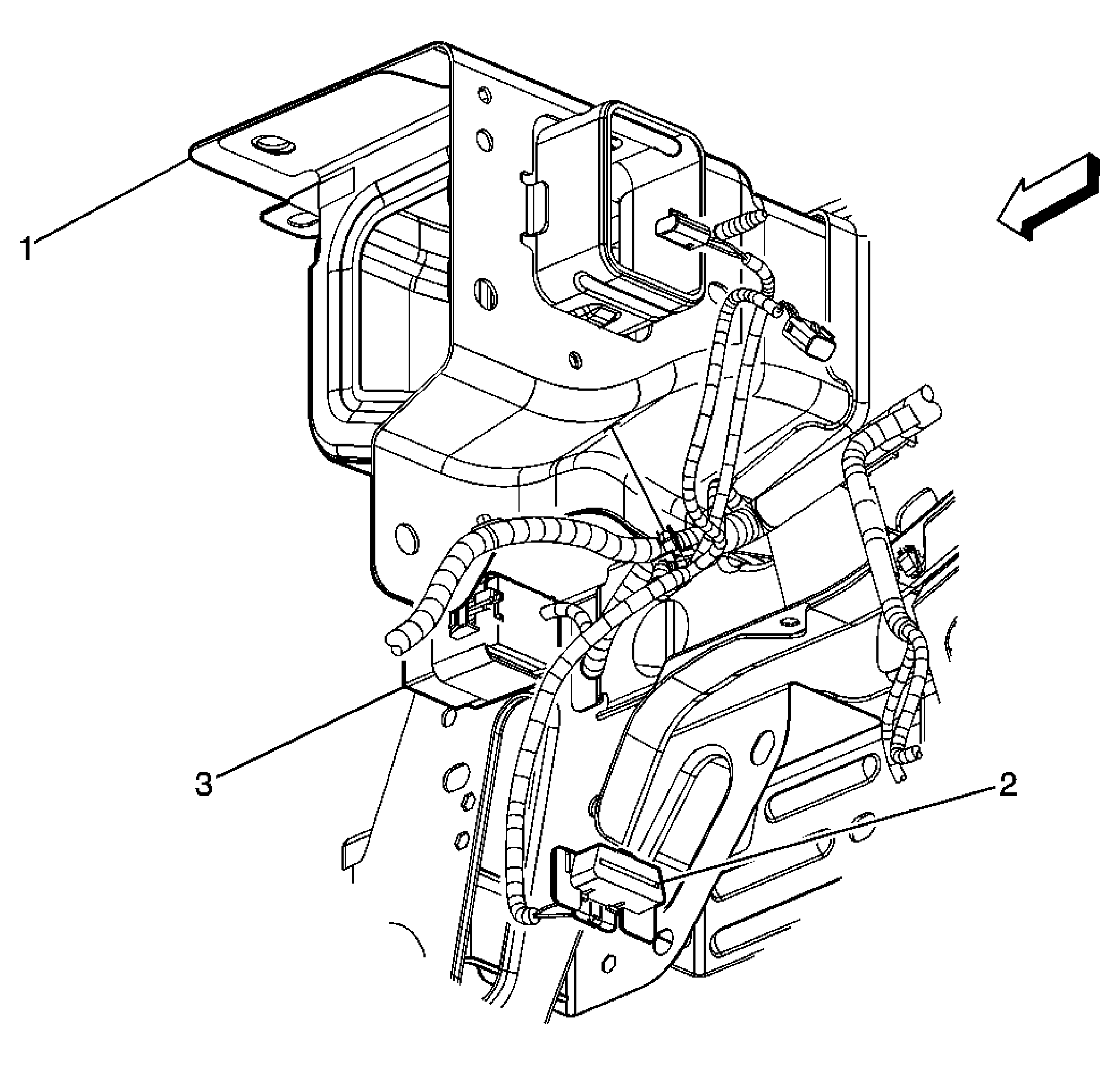

Fig 15: Left Side Of I/P, Under Tie Bar (T82) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Tie Bar
2	Data Link Connector (DLC)
3	Headlamp Relay

Fig 16: Vehicle Rear Gate Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Component Lid Latch
2	License Lamp
3	C401

Fig 17: Left Front Side Of Vehicle Component View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF, RF Similar

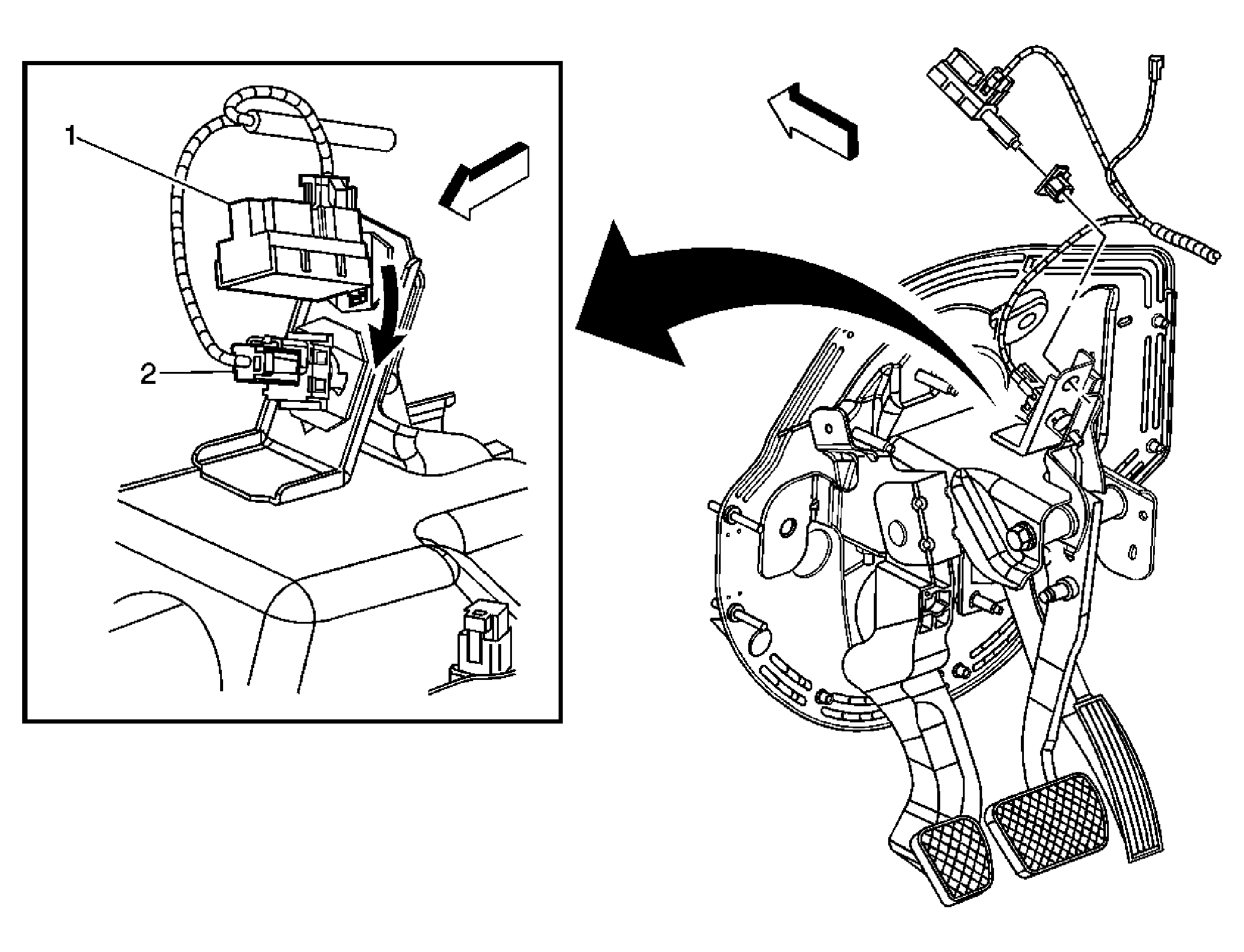

Fig 18: Lower Left Front Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch - Upper
2	Stop Lamp Switch - Lower

Fig 19: Rear Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Engine Coolant Tempareture Sensor (ECT)
3	Heated Oxygen Sensor (HO2S)1
4	Heated Oxygen Sensor (HO2S)2 Connector

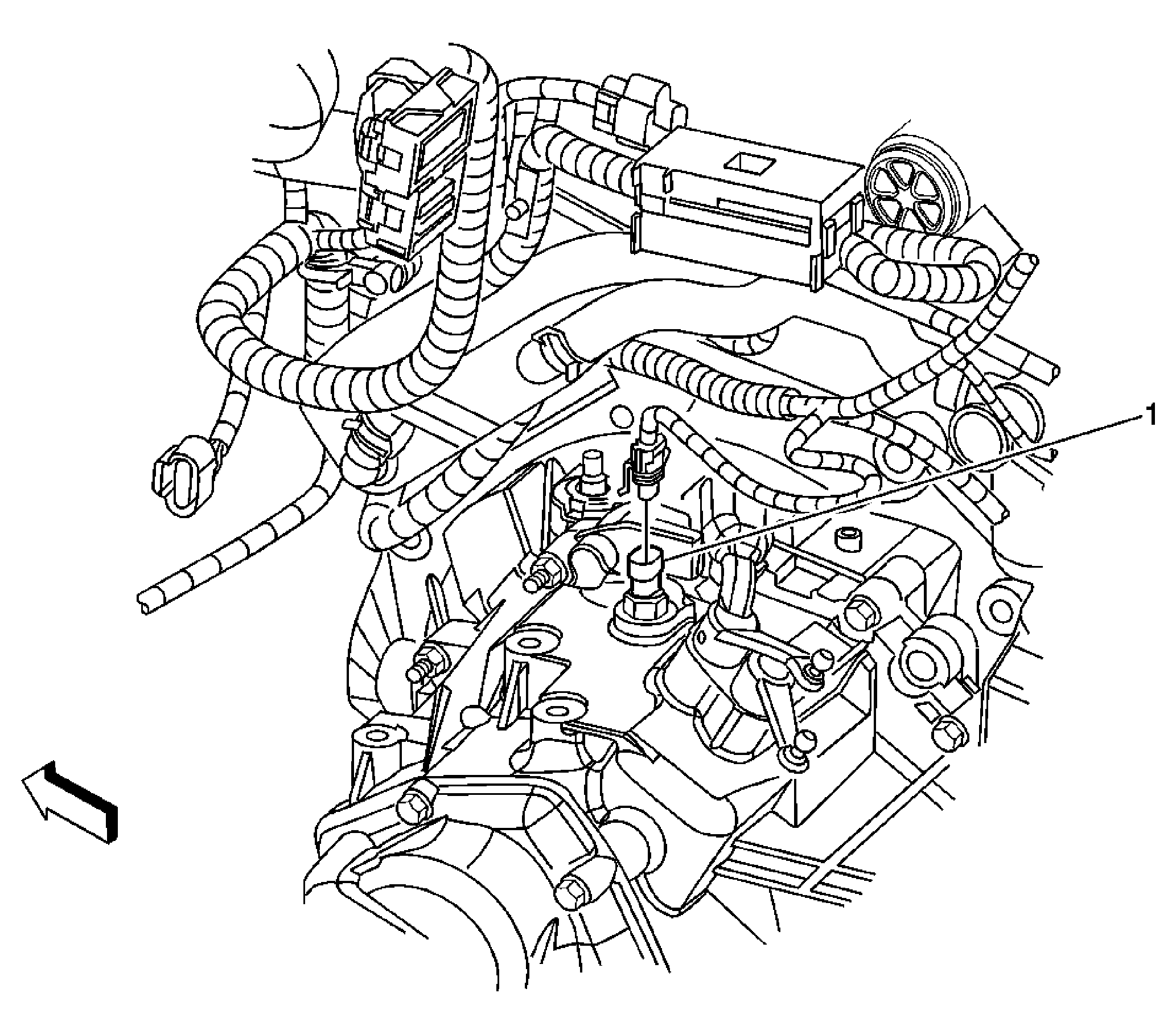

Fig 20: Top Of Transmission (MU3) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch
