Installation Procedure

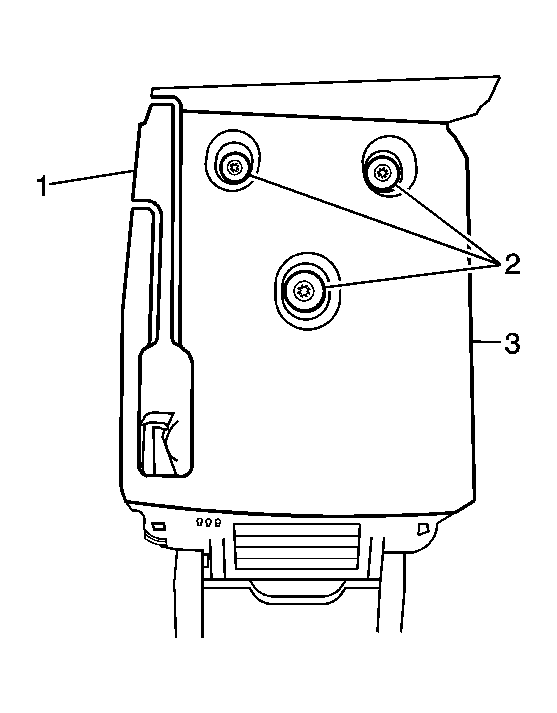

    Fig 1: Identifying Lower Trim Cover Screws & Lower Trim Cover
    GM1230476Courtesy of GENERAL MOTORS CORP.
  1. Maneuver and install the lower steering column trim cover (3) to the steering column.
    2. NOTE: Refer to Fastener Notice .
  2. Install the lower steering column trim cover screws (2).

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

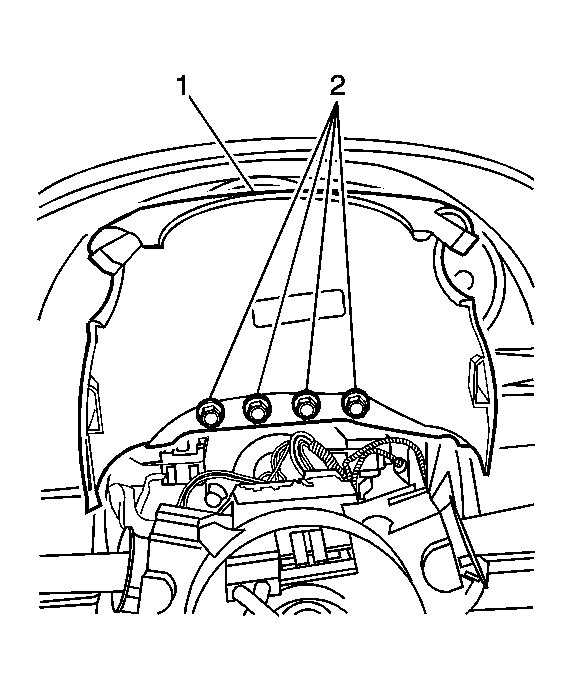

    3. Fig 2: View Of Trim Cover & Lock Rings
    GM1230480Courtesy of GENERAL MOTORS CORP.
  3. Place the upper steering column trim cover (1) to the top of the steering column and install the instrument panel seal retaining nuts (2).
  4. Snap the upper steering column trim cover into place.
