Installation Procedure

    Fig 1: View Of Intermediate Steering Shaft Assembly
    GM854913Courtesy of GENERAL MOTORS CORP.
  1. Install the intermediate steering shaft from inside the vehicle.
    2. IMPORTANT: Do NOT twist or squeeze the seal during installation and position it in its original position. Ensure the it is properly seated and inspect the 4 lock tabs from the engine side for any damage. If the intermediate steering shaft seal lock tabs are damaged then replace the seal.
  2. Seat the intermediate steering shaft seal by pushing it forward from the inside of the vehicle until all four lock tabs are fully seated.
  3. Connect the intermediate steering shaft to the steering column.

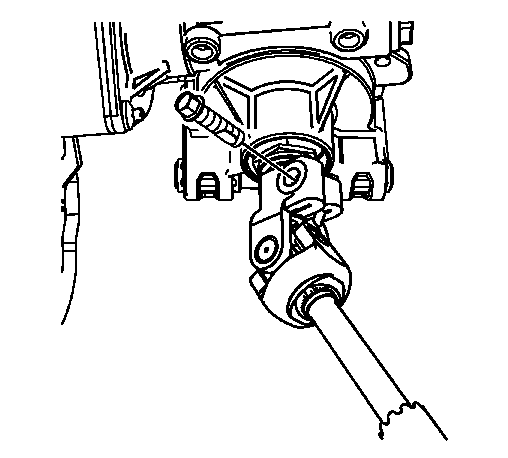

    4. Fig 2: View Of Intermediate Steering Shaft Bolt At Steering Column
    GM1236963Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Install the new intermediate steering shaft bolt.

    Tighten:

    • For electronic power steering, tighten the bolt to 49 N.m (36 lb ft).
    • For hydraulic power steering, tighten the bolt to 62 N.m (46 lb ft).

  5. Install the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
  6. Connect the intermediate steering shaft to the steering gear.
    7. Fig 3: View Of Intermediate Shaft-To-Steering Gear Pinch Bolt
    GM851655Courtesy of GENERAL MOTORS CORP.
  7. Install the new intermediate steering shaft lower bolt.

    Tighten:  Tighten the bolt to 49 N.m (36 lb ft).

  8. Install the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
