Power Steering Component Views

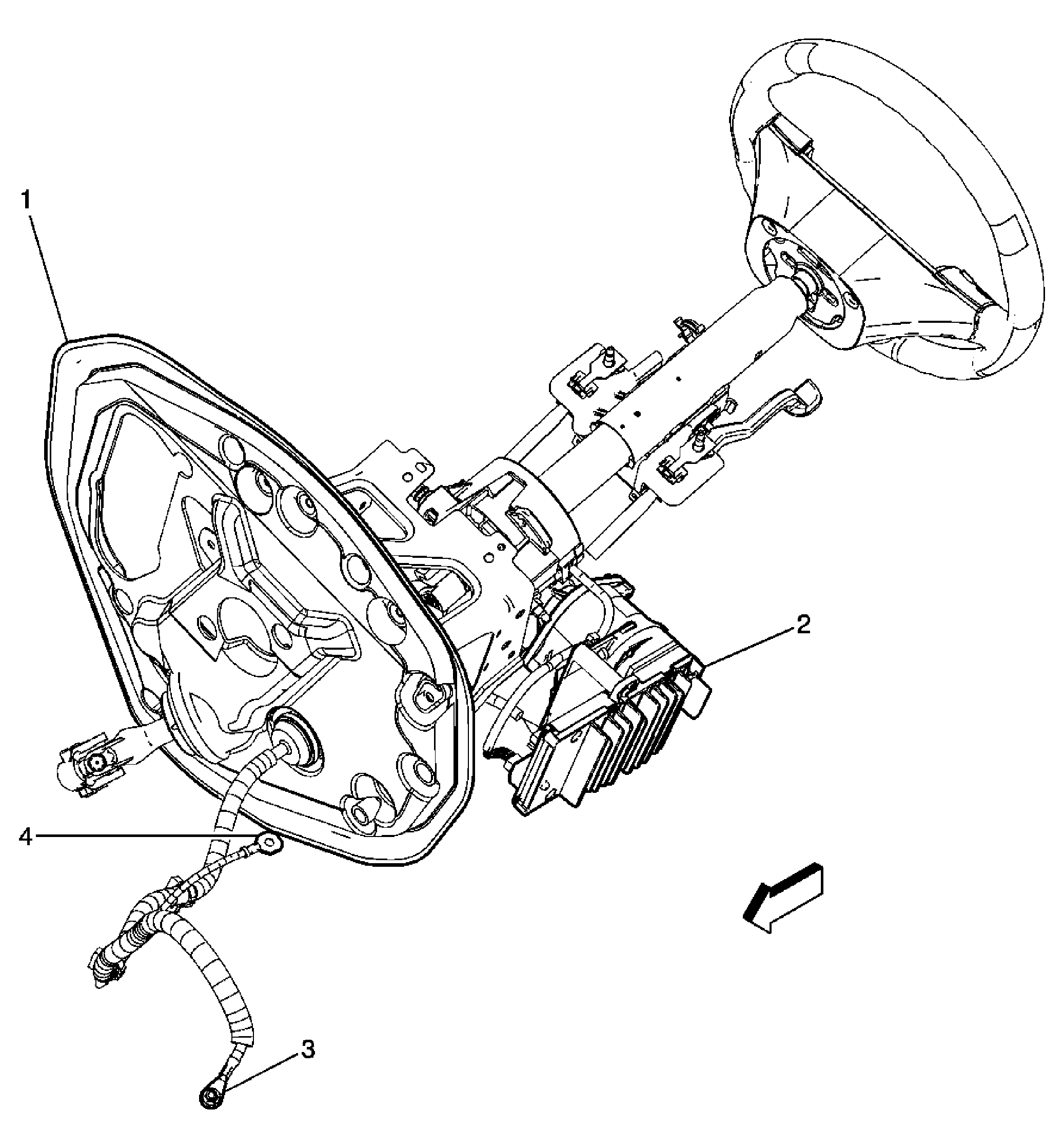

Fig 1: View Of Power Steering Harness - NV7
GM1776001Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Booster Bracket
2 Power Steering Control Module
3 G103
4 Fuse Block - Underhood Terminal
