Child Restraint Tether Anchor Replacement
Child Restraint Tether Anchor Replacement

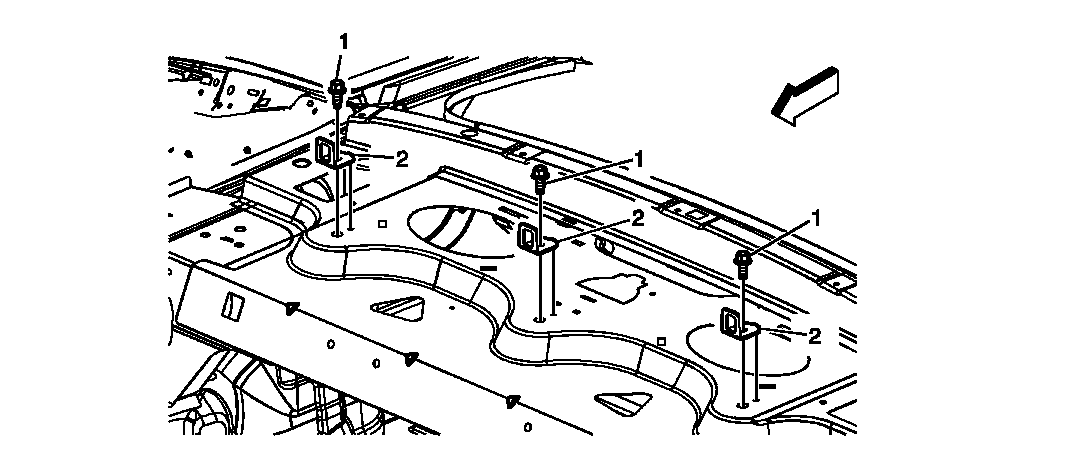

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear window upper shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement . |
|
| 1 | Child Seat Top Strap Bracket Bolt (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 45 N.m (33 lb ft) |
| 2 | Child Seat Top Strap Bracket (Qty: 3) |
