Seat Belt Component Views

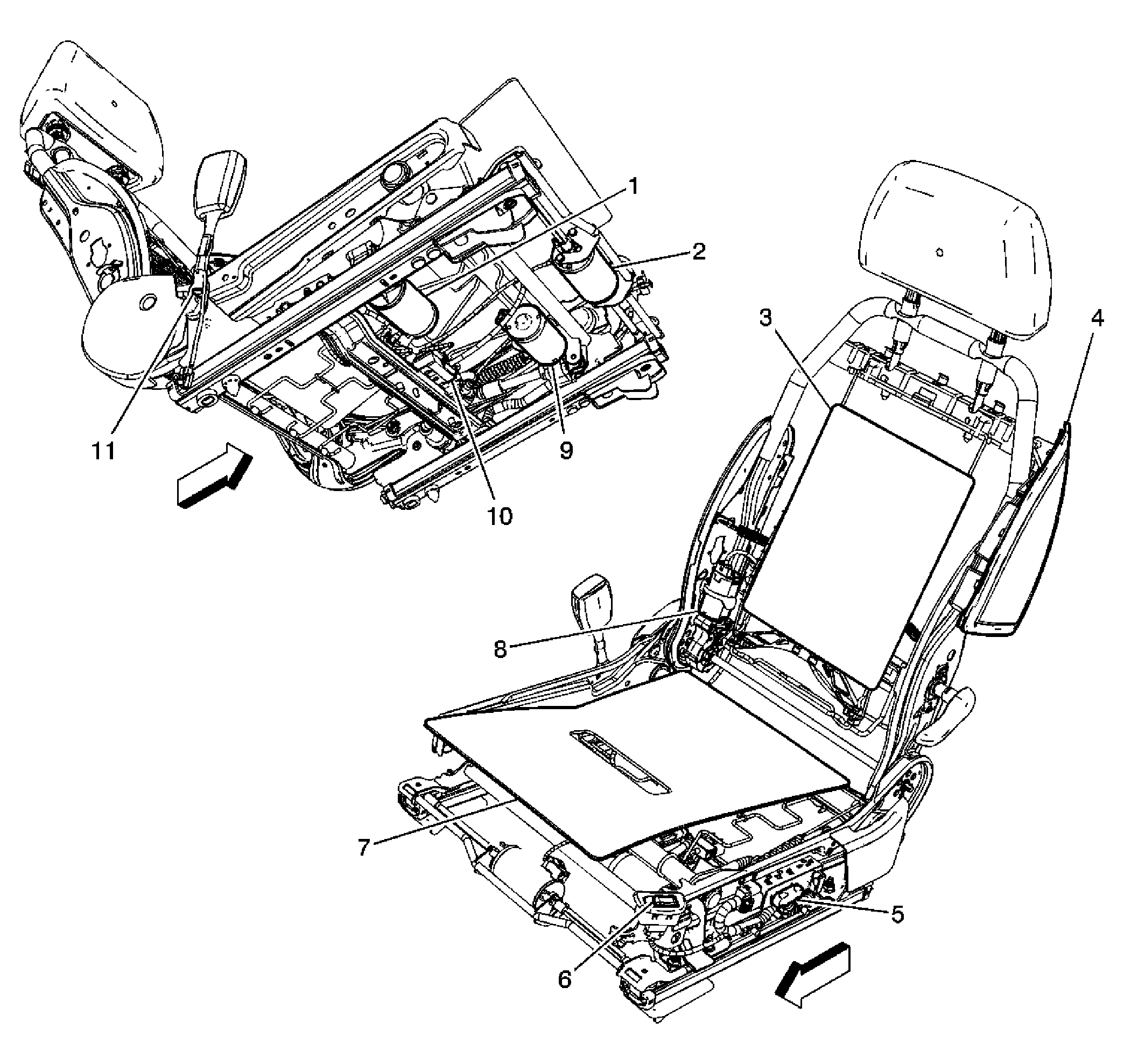

Fig 1: View Of Driver Seat Components

GM1832283

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Rear Vertical Motor - Driver (AE8), Seat Vertical Motor - Driver (AF2)
2	Seat Horizontal Motor - Driver (AE8)
3	Heated Seat Element - Driver Back (KA1)
4	Inflatable Restraint Side Impact Module - Left
5	Seat Adjuster Switch - Driver
6	Heated Seat Switch - Driver (KA1)
7	Heated Seat Element - Driver Cushion (KA1)
8	Seat Recline Motor - Driver (AE8)
9	Seat Front Vertical Motor - Driver (AE8)
10	Heated Seat Control Module - Driver (KA1)
11	Seat Belt Switch - Left

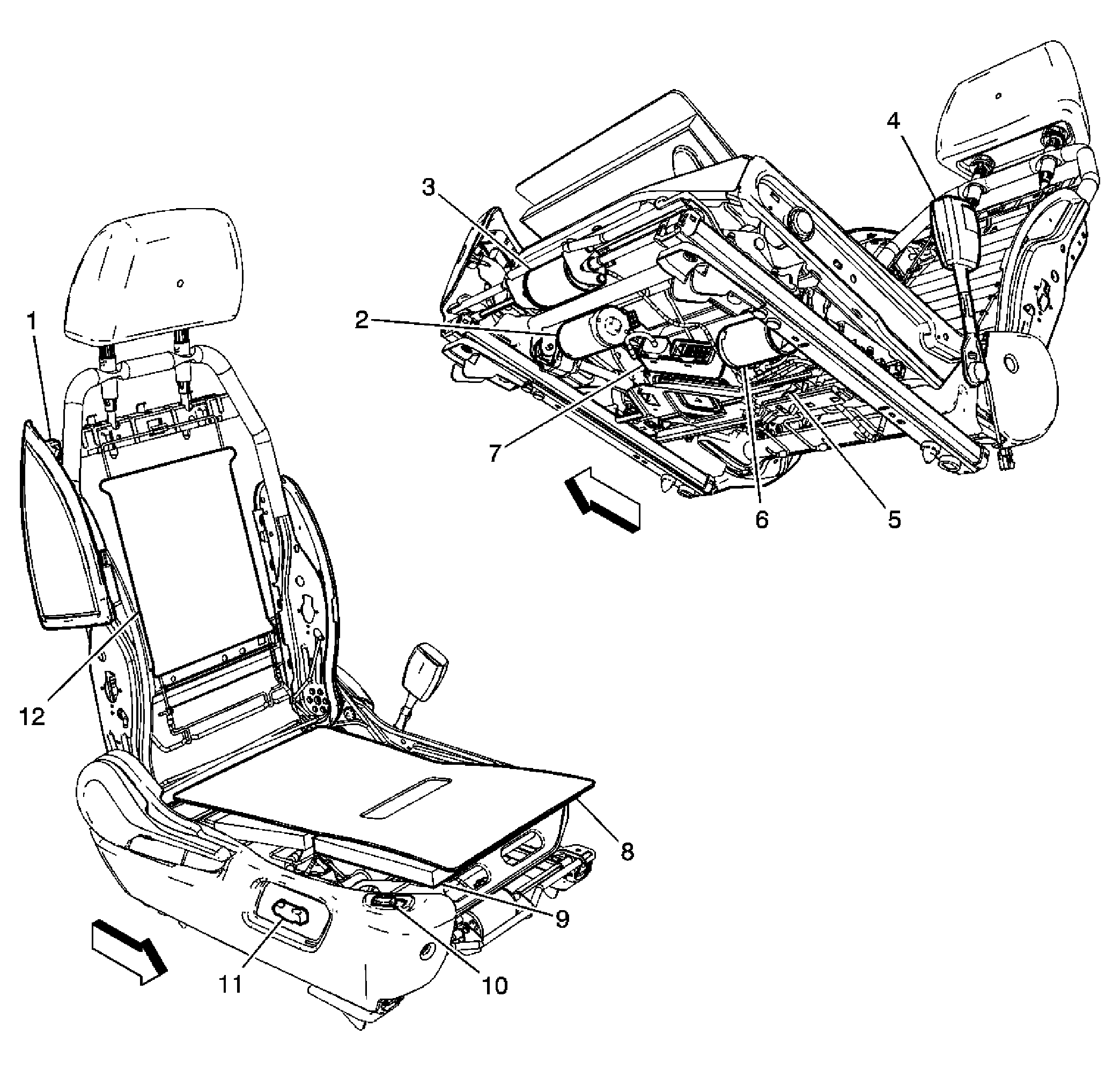

Fig 2: View Of Passenger Seat Components

GM1832289

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Seat Front Vertical Motor - Passenger (AG2)
3	Seat Horizontal Motor - Passenger (AG2)
4	Seat Belt Switch - Right
5	Heated Seat Control Module - Passenger (KA1)
6	Seat Rear Vertical Motor - Passenger (AG2)
7	Inflatable Restraint Passenger Presence System (PPS) Module
8	Heated Seat Element - Passenger Cushion (KA1)
9	Inflatable Restraint Passenger Presence System (PPS) Sensor
10	Heated Seat Switch - Passenger (KA1)
11	Seat Adjuster Switch - Passenger (AG2)
12	Heated Seat Element - Passenger Back (KA1)
