Power and Grounding Component Views

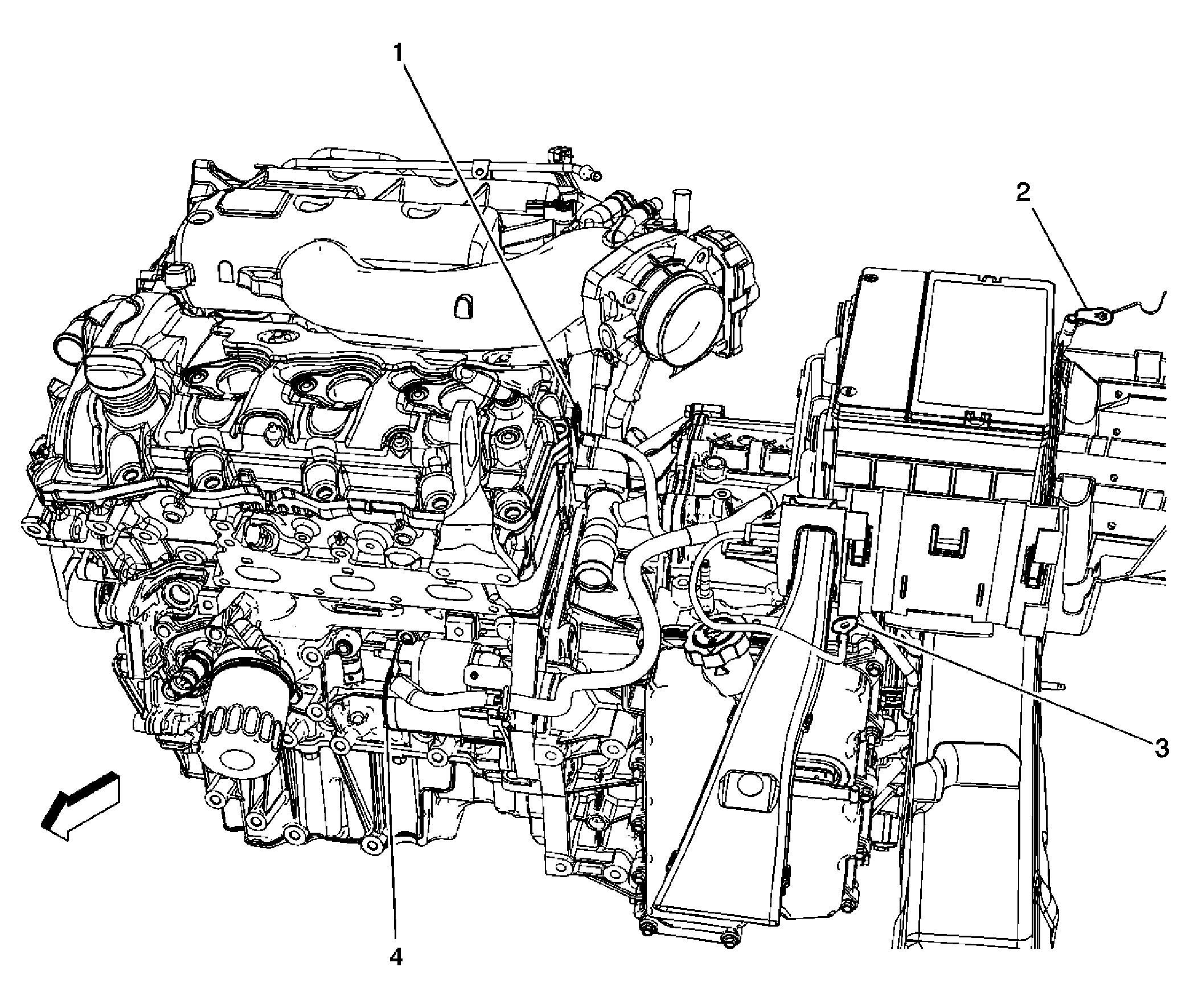

Fig 1: Battery Cable Harness (LY7)

GM1776272

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105
2	Fuse Block - Underhood Terminal
3	G104
4	Starter Terminal

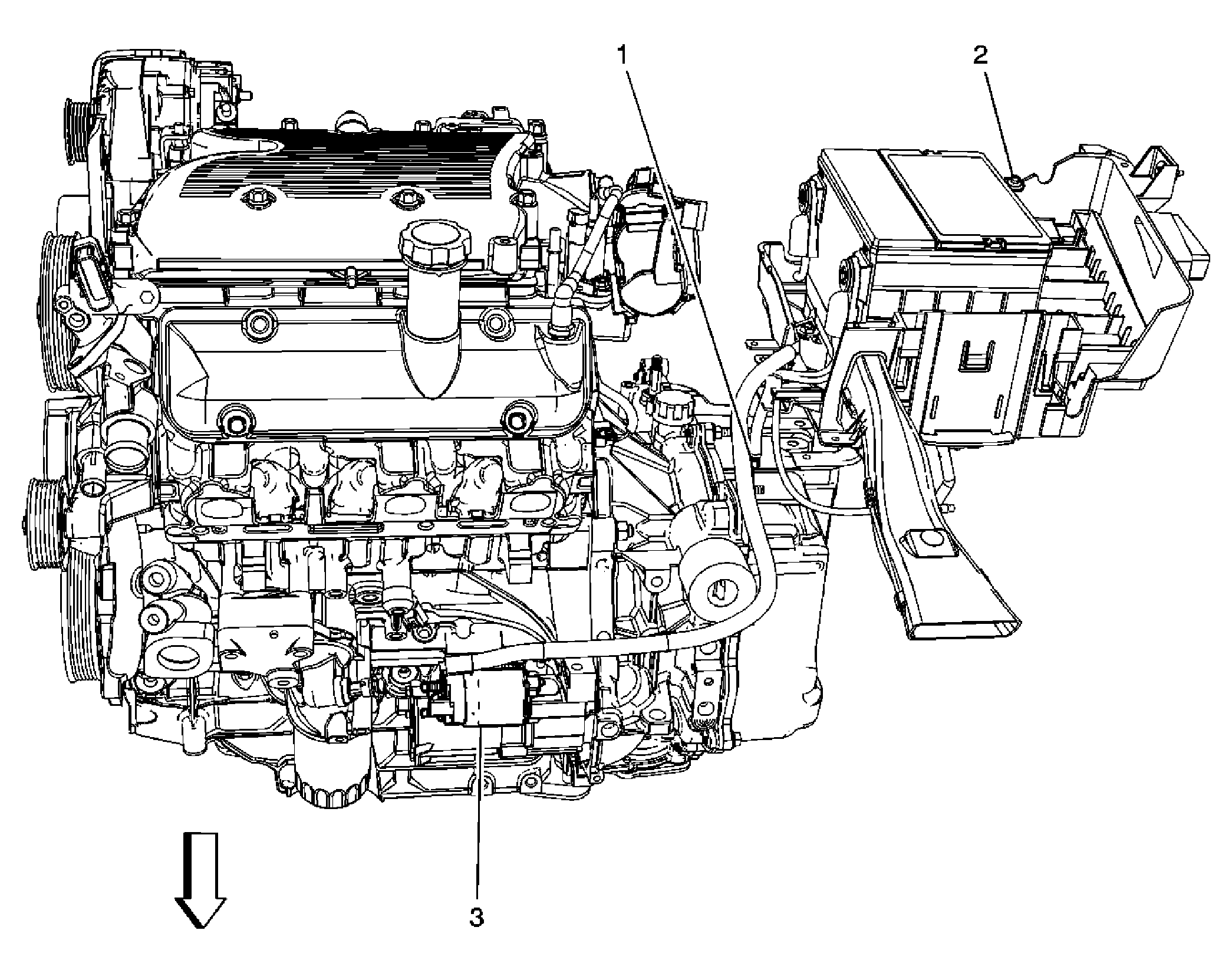

Fig 2: Battery Cable Harness (LZ4)

GM1776280

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105
2	Fuse Block - Underhood Terminal
3	G104
4	Starter Terminal

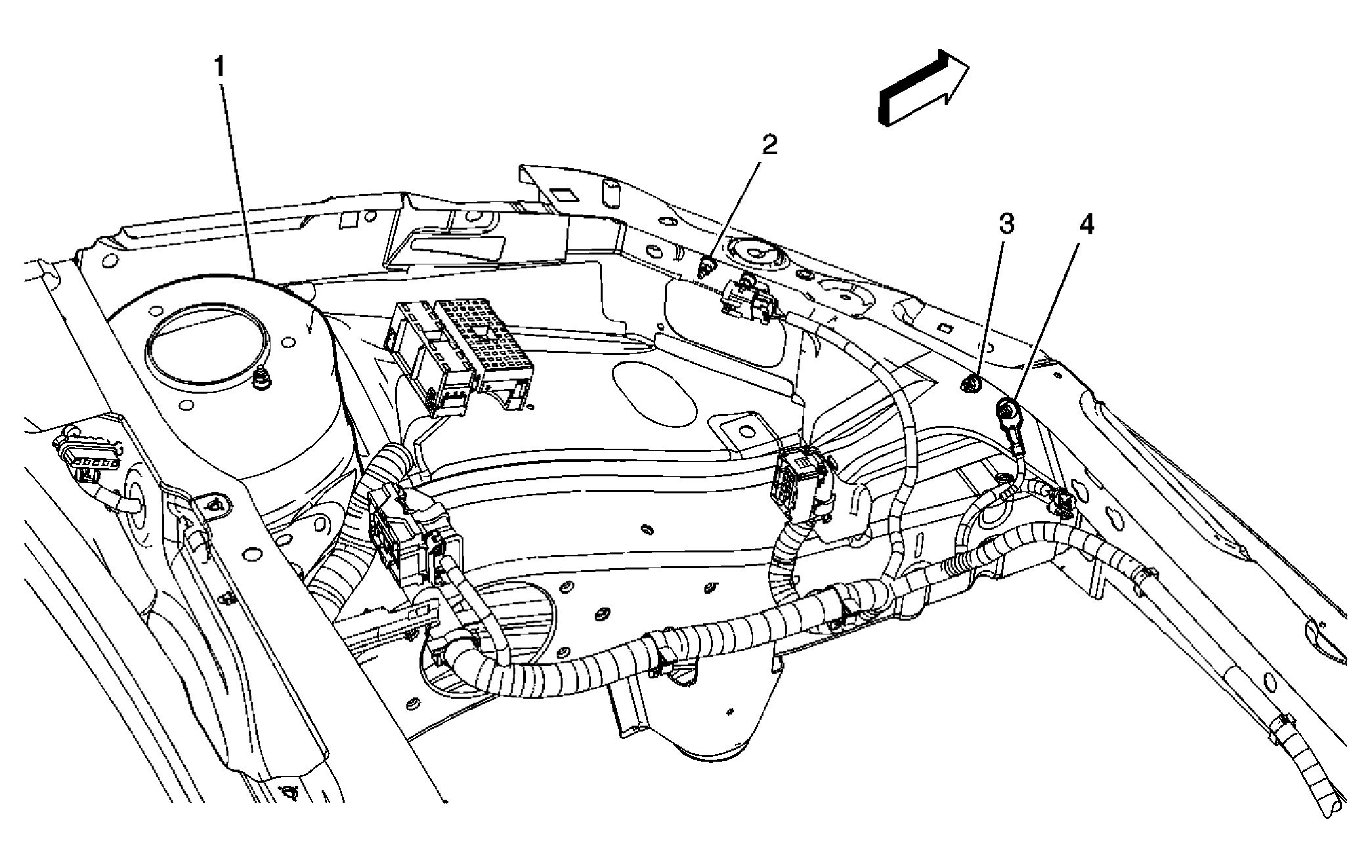

Fig 3: G109

GM1832306

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LF Strut Tower
2	G109

Fig 4: Front of the Battery Tray

GM1832315

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Engine Control Module (ECM)
3	Transmission Control Module (TCM)

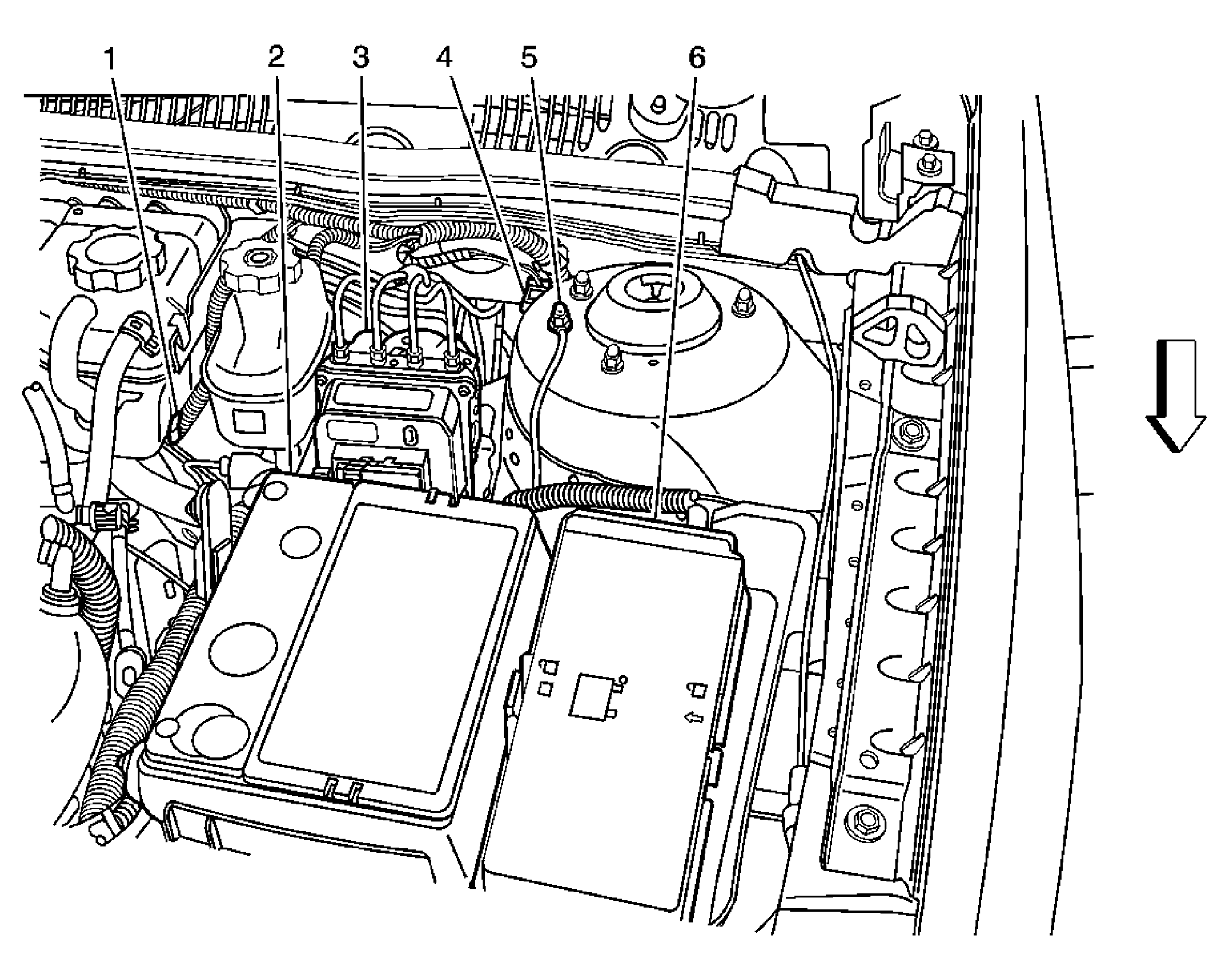

Fig 5: Left Rear of Engine Compartment

GM1869636

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103 (NV7)
6	Fuse Block - Underhood

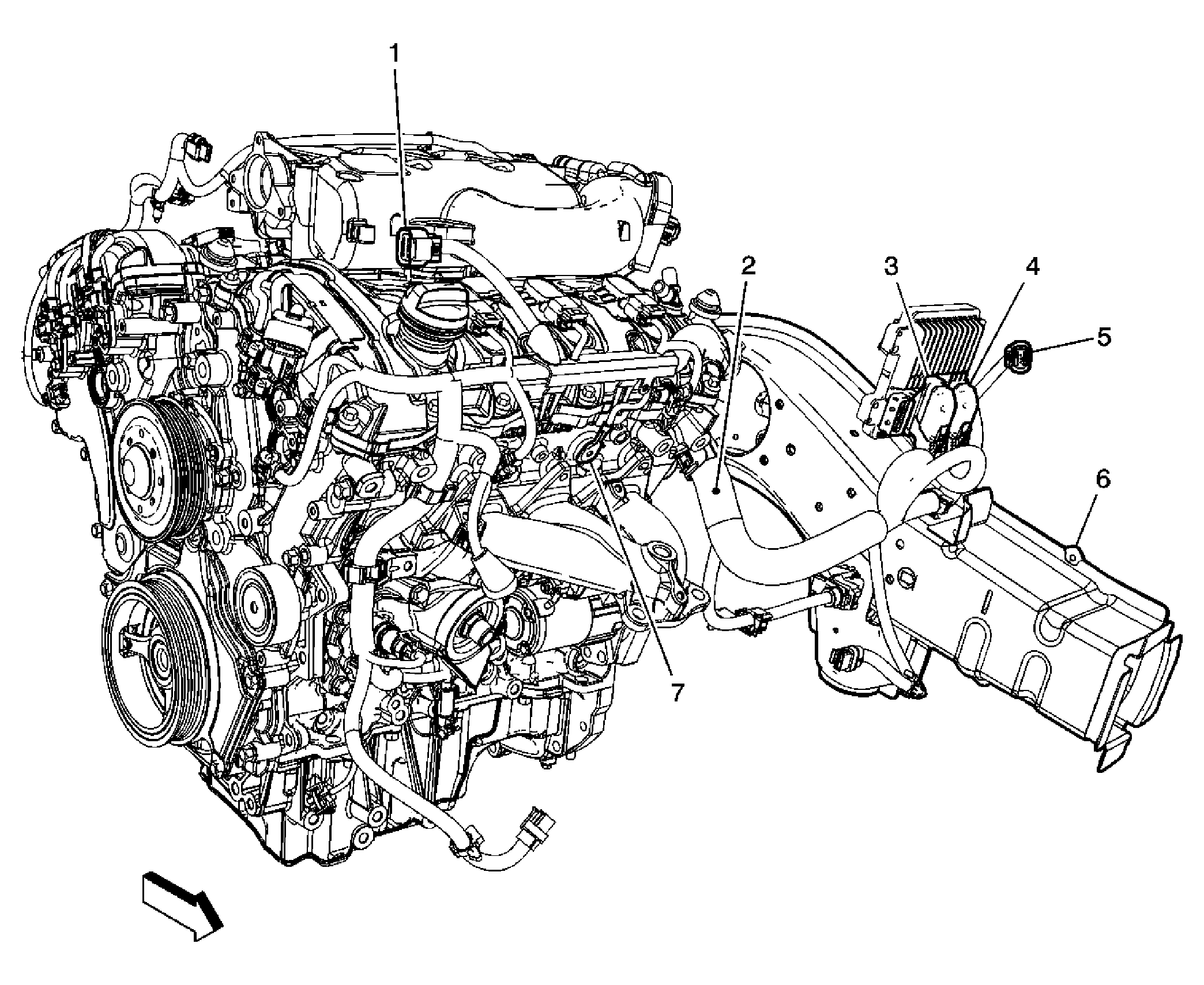

Fig 6: Engine Harness - Front (LY7)

GM1775974

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C130
2	S199
3	Engine Control Module (ECM) C2
4	Engine Control Module (ECM) C3
5	C108
6	Left Front Frame Rail
7	G113

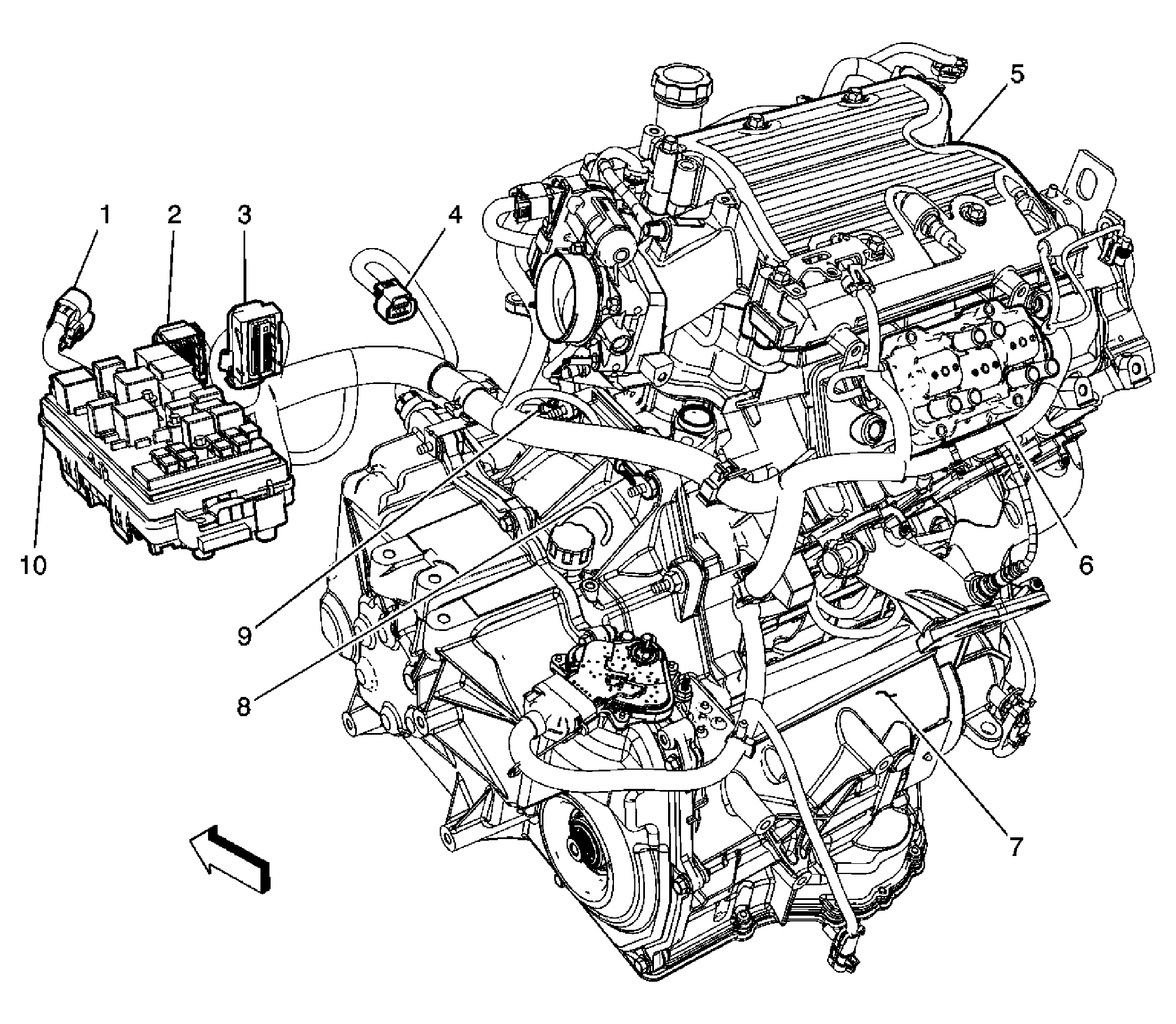

Fig 7: Engine Harness - Rear (LZ4)

GM1775943

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C108
2	Engine Control Module (ECM) C2
3	Engine Control Module (ECM) C1
4	C103
5	Upper Intake Manifold
6	Ignition Control Module (ICM)
7	Transmission
8	G106
9	G105
10	Fuse Block - Underhood

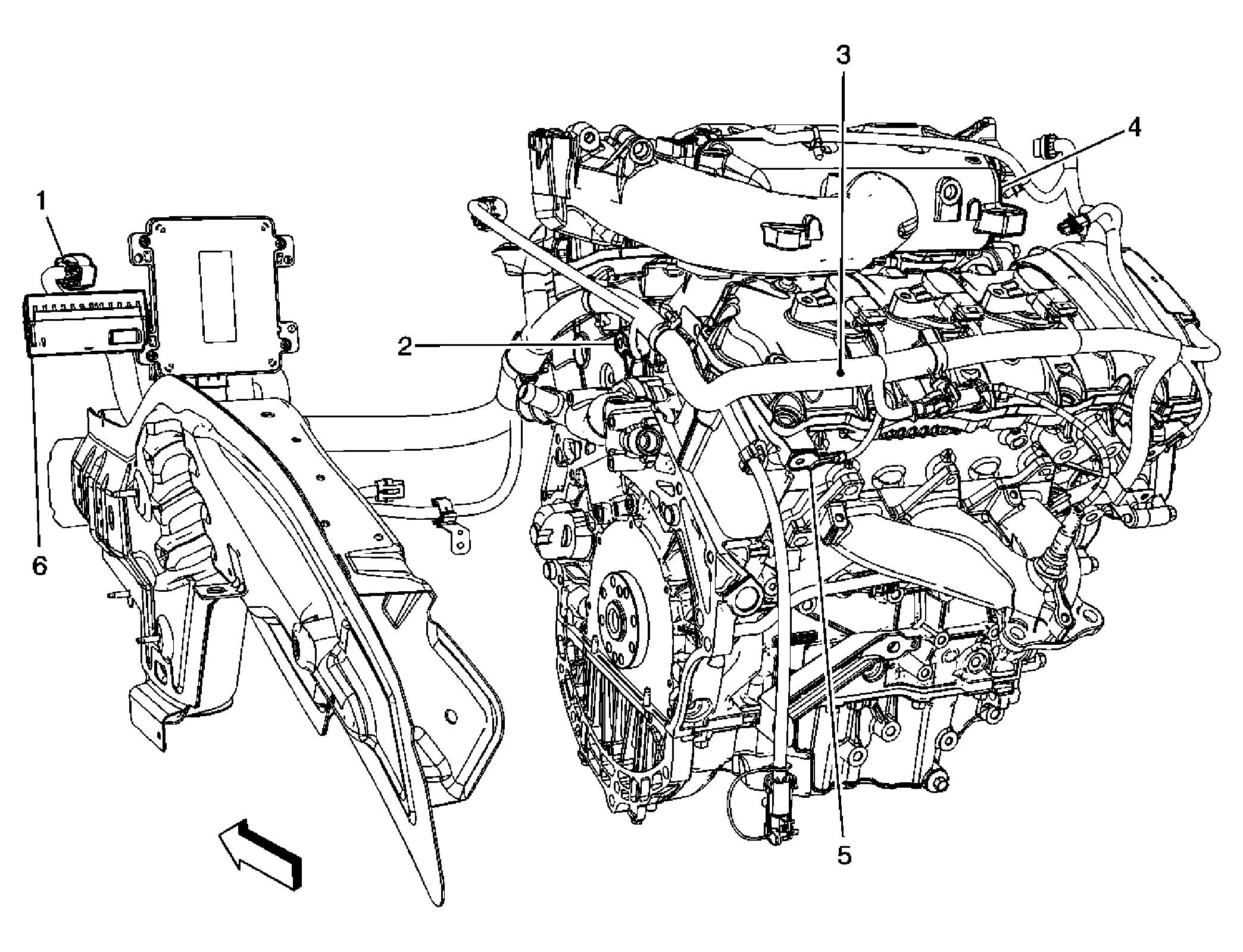

Fig 8: Engine Harness - Rear (LY7)

GM1775982

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C108
2	G105
3	S198
4	Upper Intake Manifold
5	G111
6	Fuse Block - Underhood C1

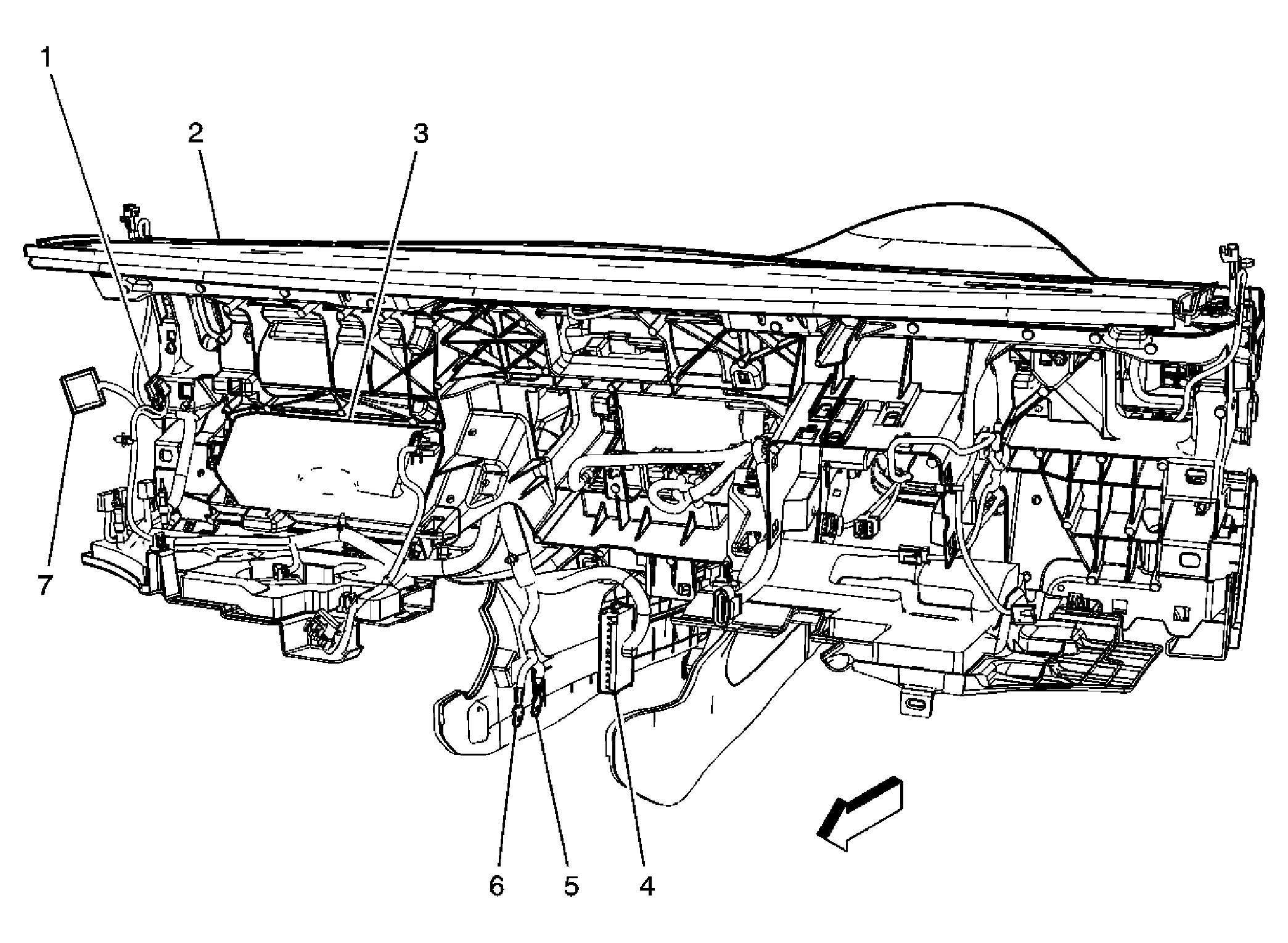

Fig 9: I/P Harness - Rear Of Carrier

GM1776049

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C291 (Coaxial) (UE1)
2	I/P Upper Trim
3	I/P Compartment
4	Body Control Module (BCM) C4
5	G201
6	G203
7	C207

Fig 10: Behind the I/P Trim

GM1832301

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Theft Deterrent Control Module
3	Steering Column
4	Ignition Switch
5	Body Control Module (BCM)

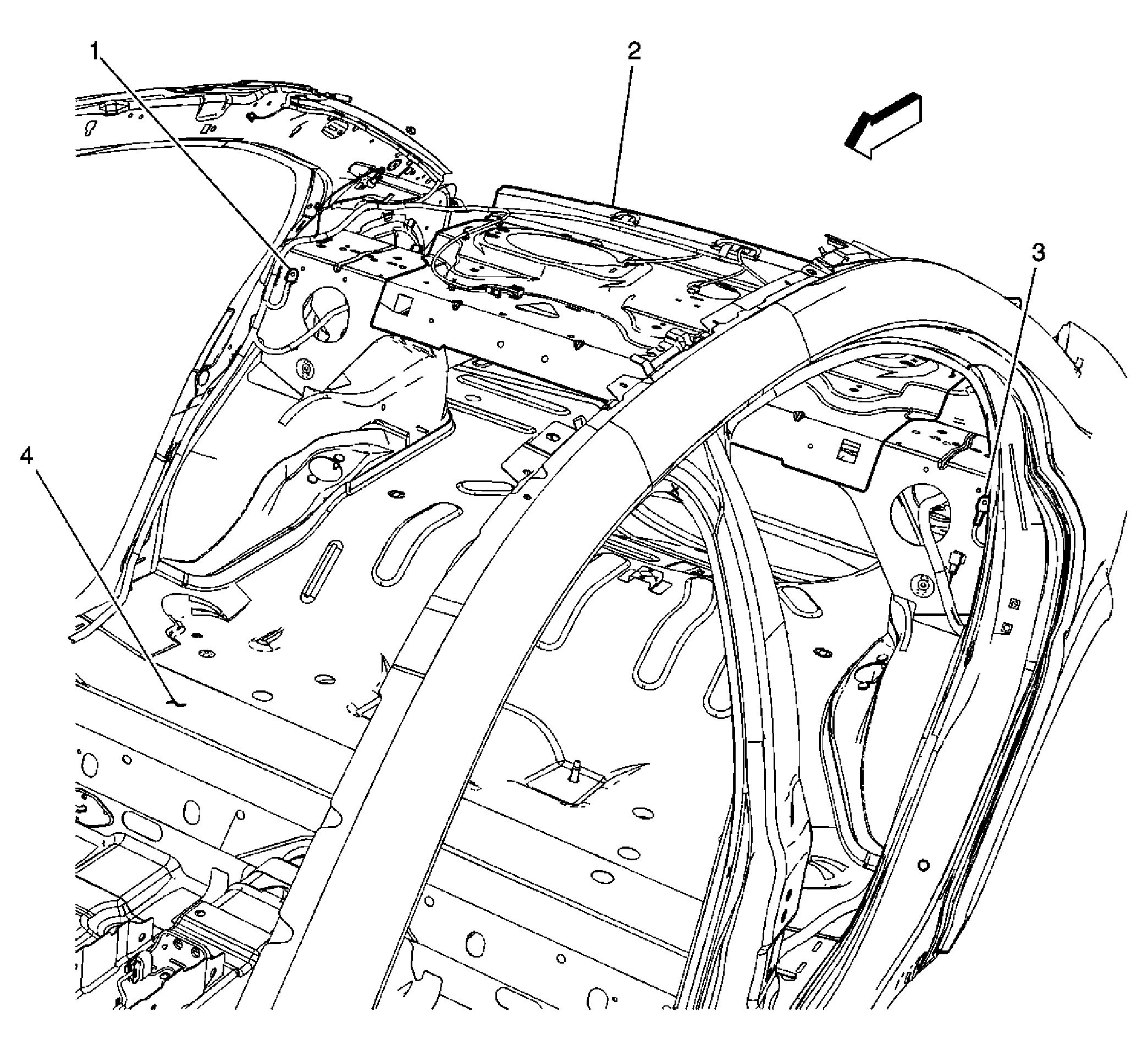

Fig 11: G301 and G302

GM1832308

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	Rear Shelf
3	G302
4	Floor Panel

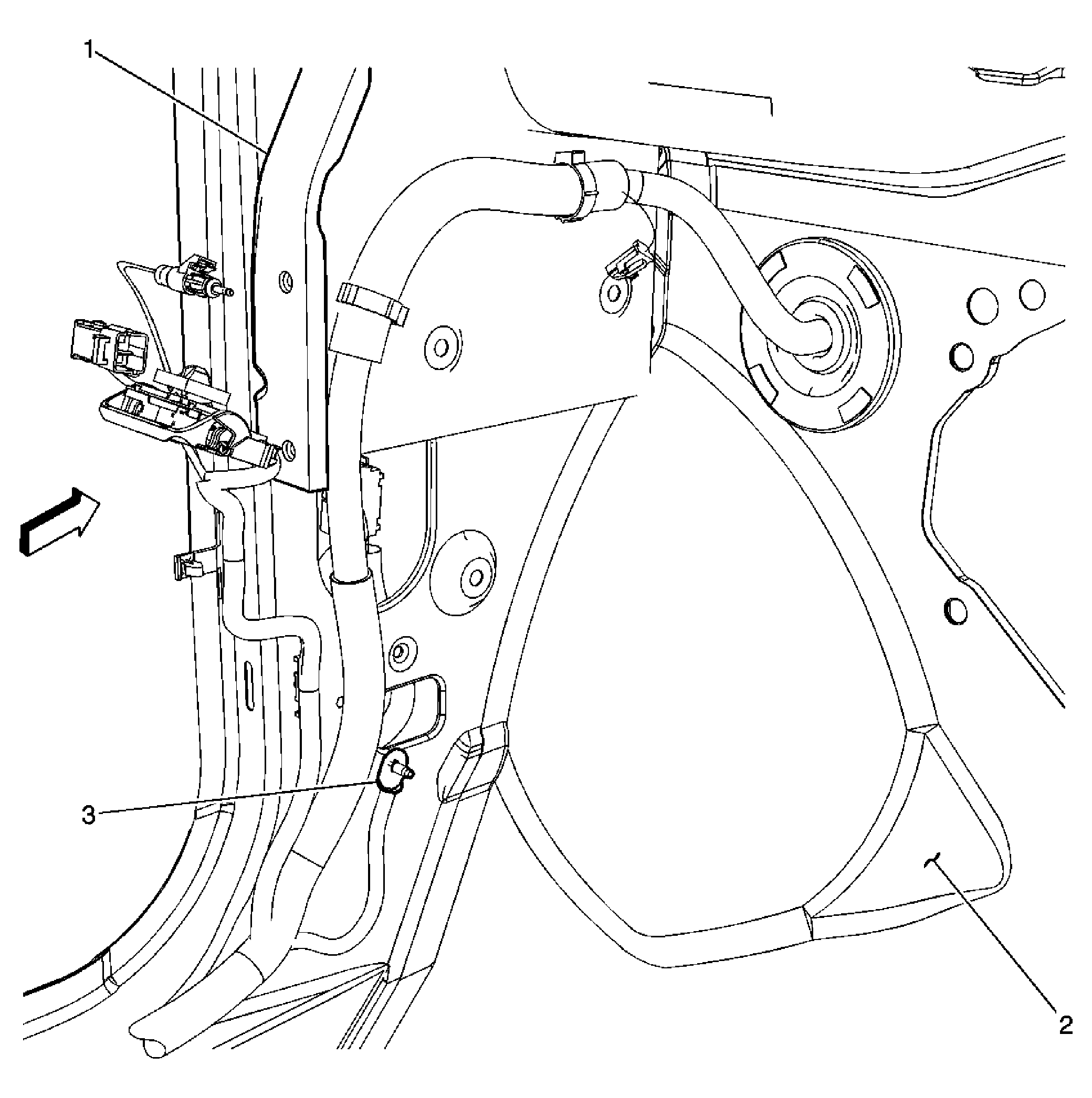

Fig 12: G303

GM1832305

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Bracket
2	Dash Panel
3	G303

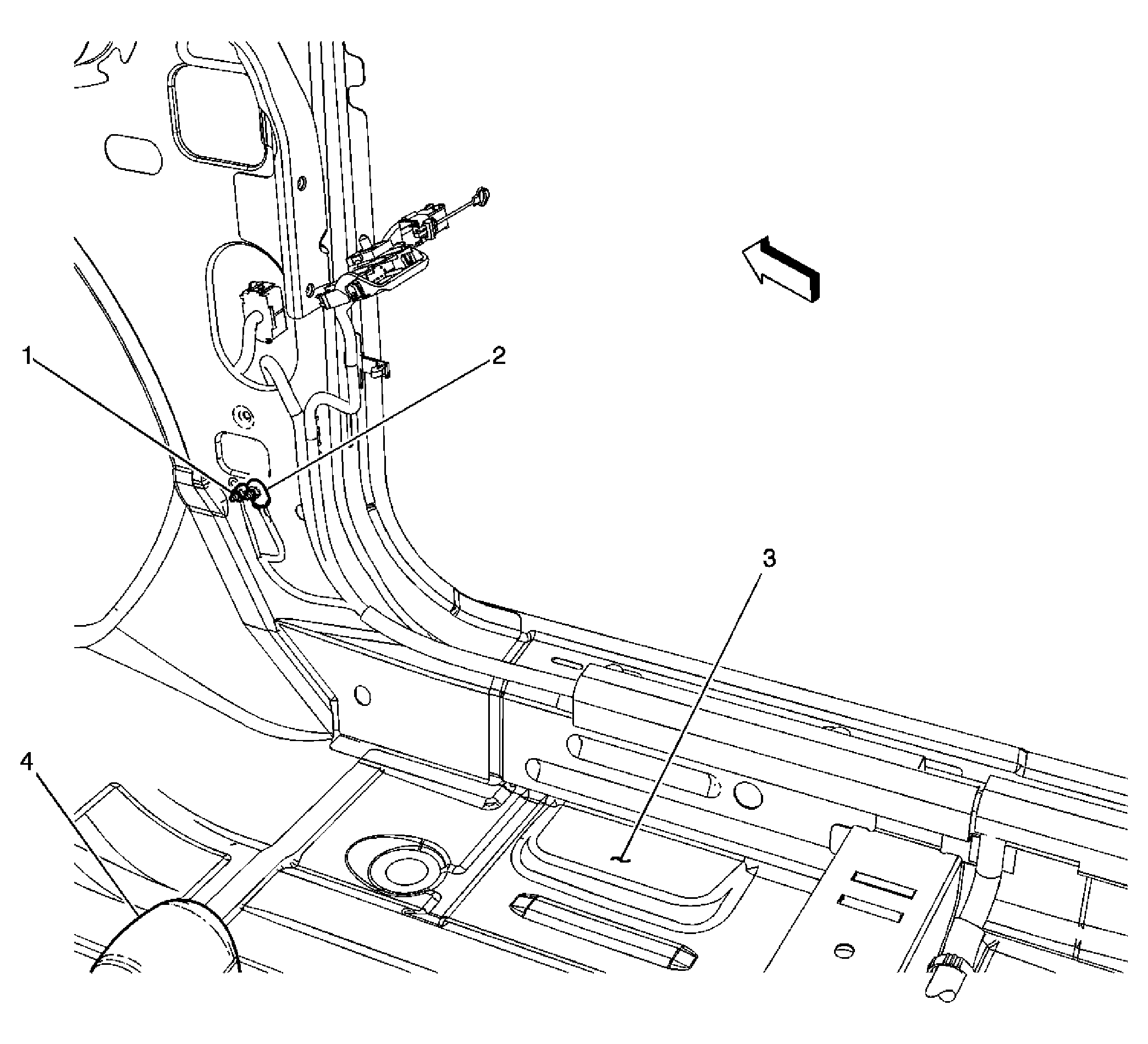

Fig 13: G304 and G305

GM1832307

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G305
2	G304
3	Floor Panel
4	Floor Shifter

Fig 14: Rear of the Luggage Compartment

GM1832291

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Fuse Block - Rear
3	Rear Floor
4	Audio Amplifier (UQ3)

Fig 15: Rear Lamp Harness

GM1775993

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	C401
3	Rear Window
4	C402
5	G403
