Instrument Panel Multifunction Switch Assembly Replacement
Instrument Panel Multifunction Switch Assembly Replacement

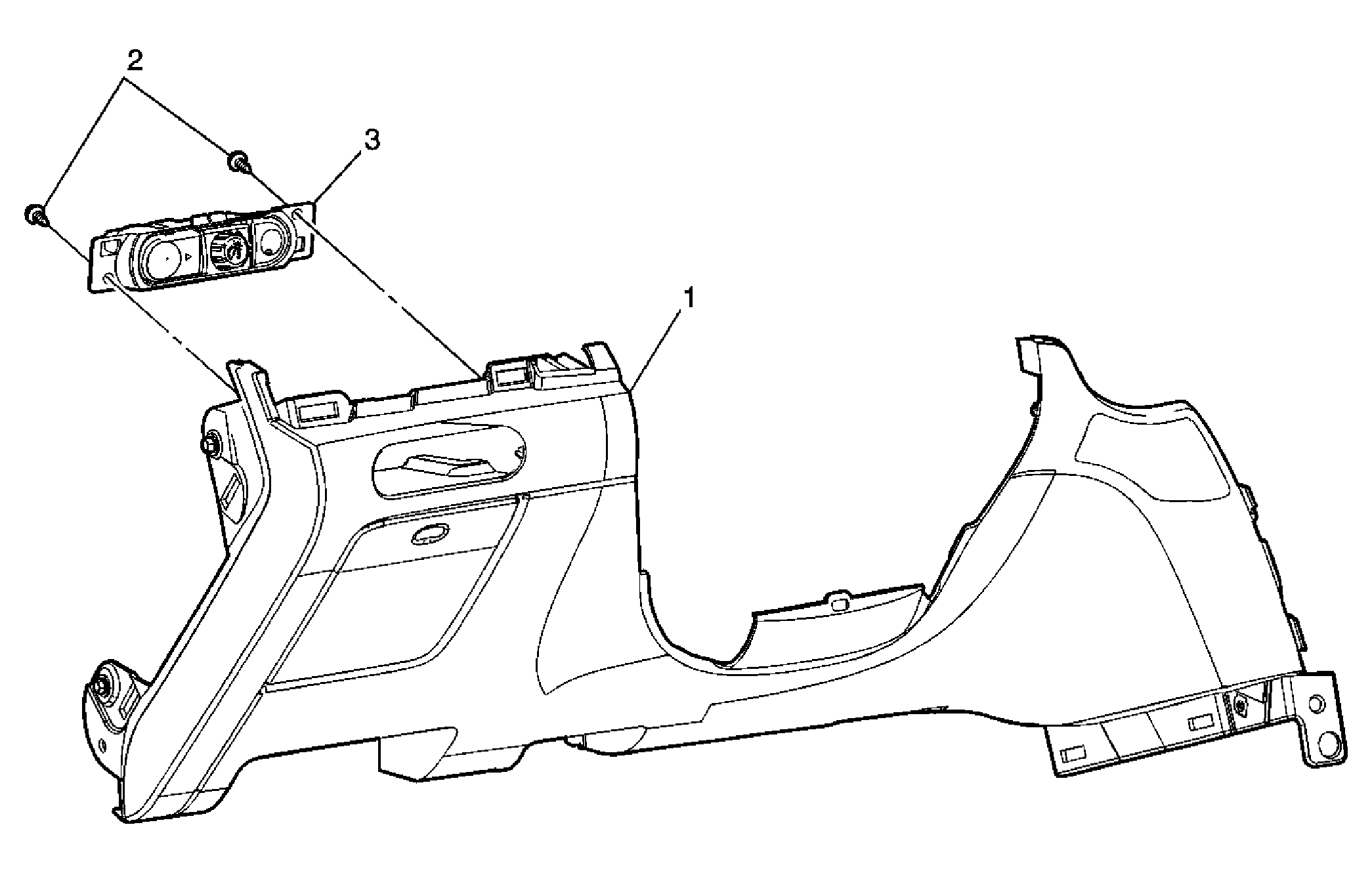

| Callout | Component Name |
|---|---|
| 1 | Knee Bolster Assembly Refer to Knee Bolster Replacement . |
| 2 | Instrument Panel Multifunction Switch Assembly Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Instrument Panel Multifunction Switch Assembly Tip: Identify the defective switch and remove from the switch bezel. |
