Installation Procedure

  1. Connect the electrical connector to the instrument cluster assembly.

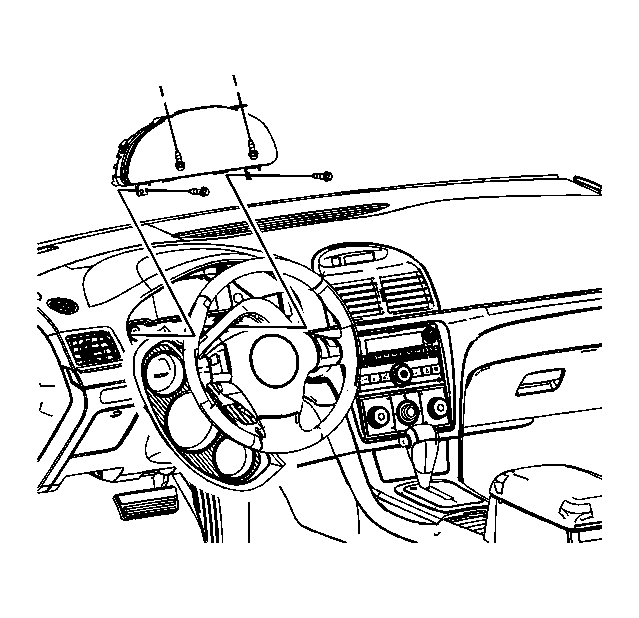

    Fig 1: Identifying Instrument Cluster Screws
    GM1850599Courtesy of GENERAL MOTORS CORP.

    Install the instrument cluster assembly into the instrument panel.

    2. NOTE: Refer to Fastener Notice .
  2. Install the screws securing the instrument cluster to the instrument panel.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

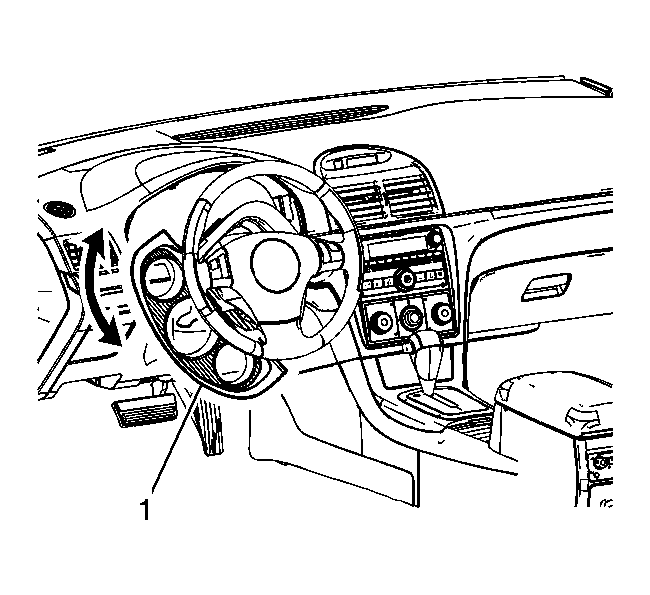

    3. Fig 2: Identifying Instrument Cluster Bezel
    GM1850597Courtesy of GENERAL MOTORS CORP.
  3. Reposition the instrument cluster bezel.
  4. Push inward on the bezel securing the bezel to the instrument panel.

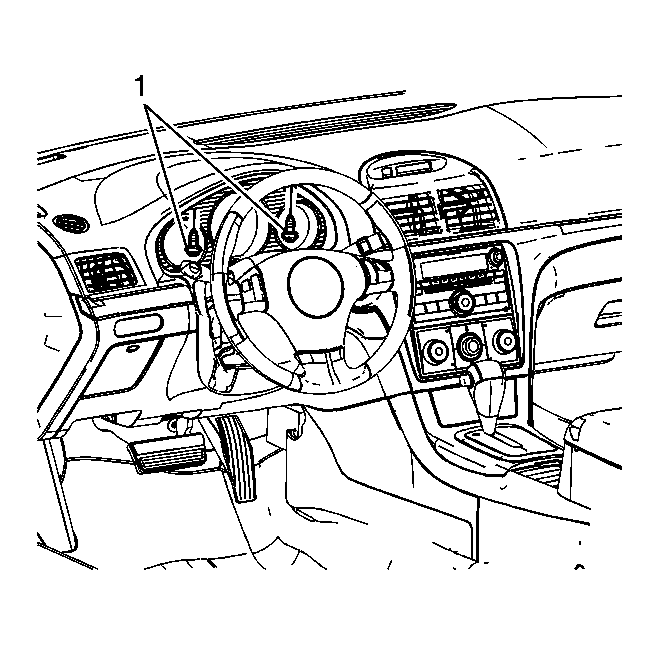

    5. Fig 3: Identifying Instrument Cluster Bezel Screws
    GM1850566Courtesy of GENERAL MOTORS CORP.
  5. Install the screws securing the instrument cluster bezel to the instrument panel.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  6. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  7. Enable the SIR system.SIR Disabling and Enabling .
