Antilock Brake System Component Views

Fig 1: Identifying Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RR
2	Wheel Speed Sensor (WSS) - LR
3	Wheel Speed Sensor (WSS) - LF
4	Wheel Speed Sensor (WSS) - RF

Fig 2: View Of Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103 (NV7)
6	Fuse Block - Underhood

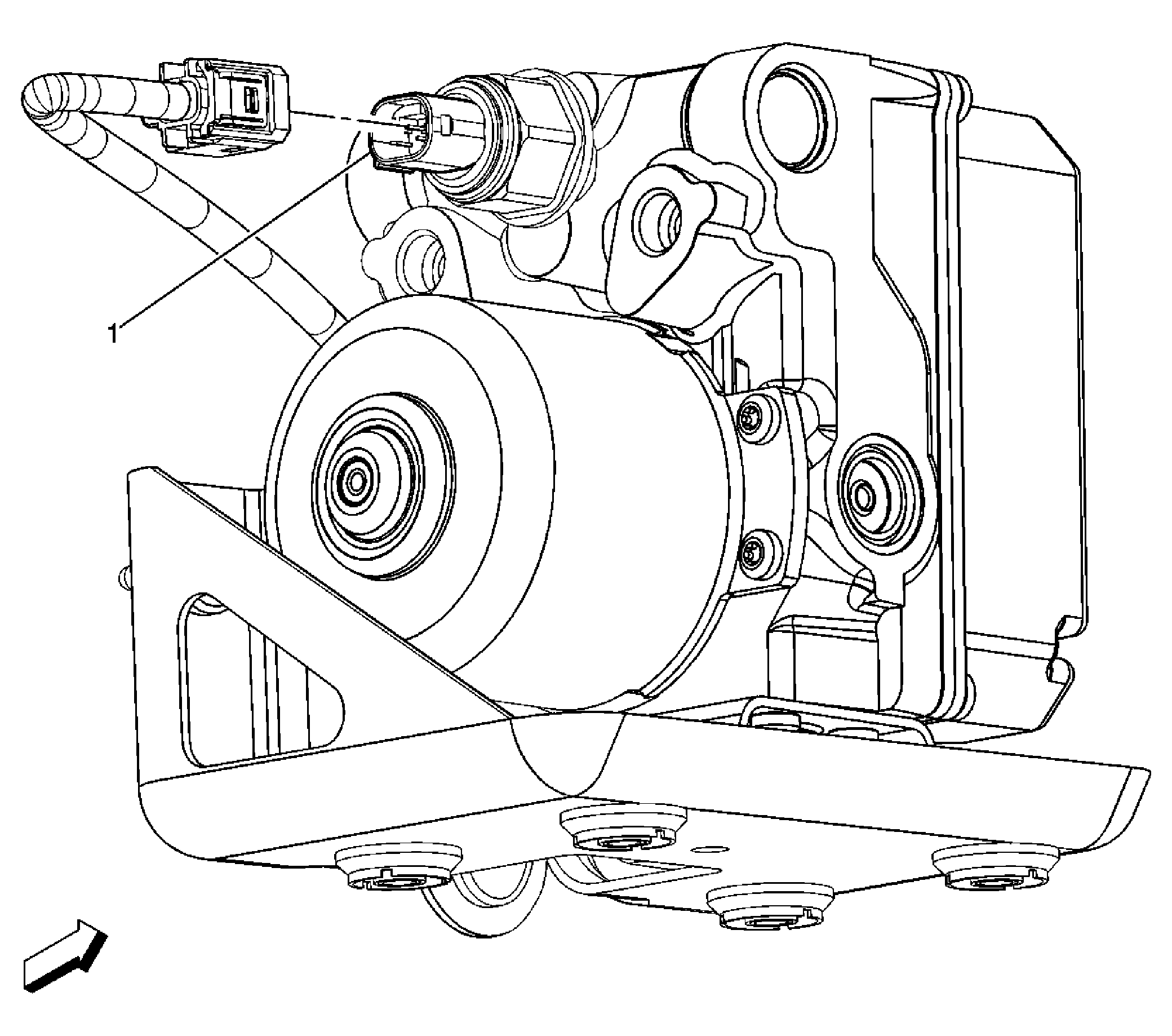

Fig 3: View Of Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Pressure Sensor (FX3)

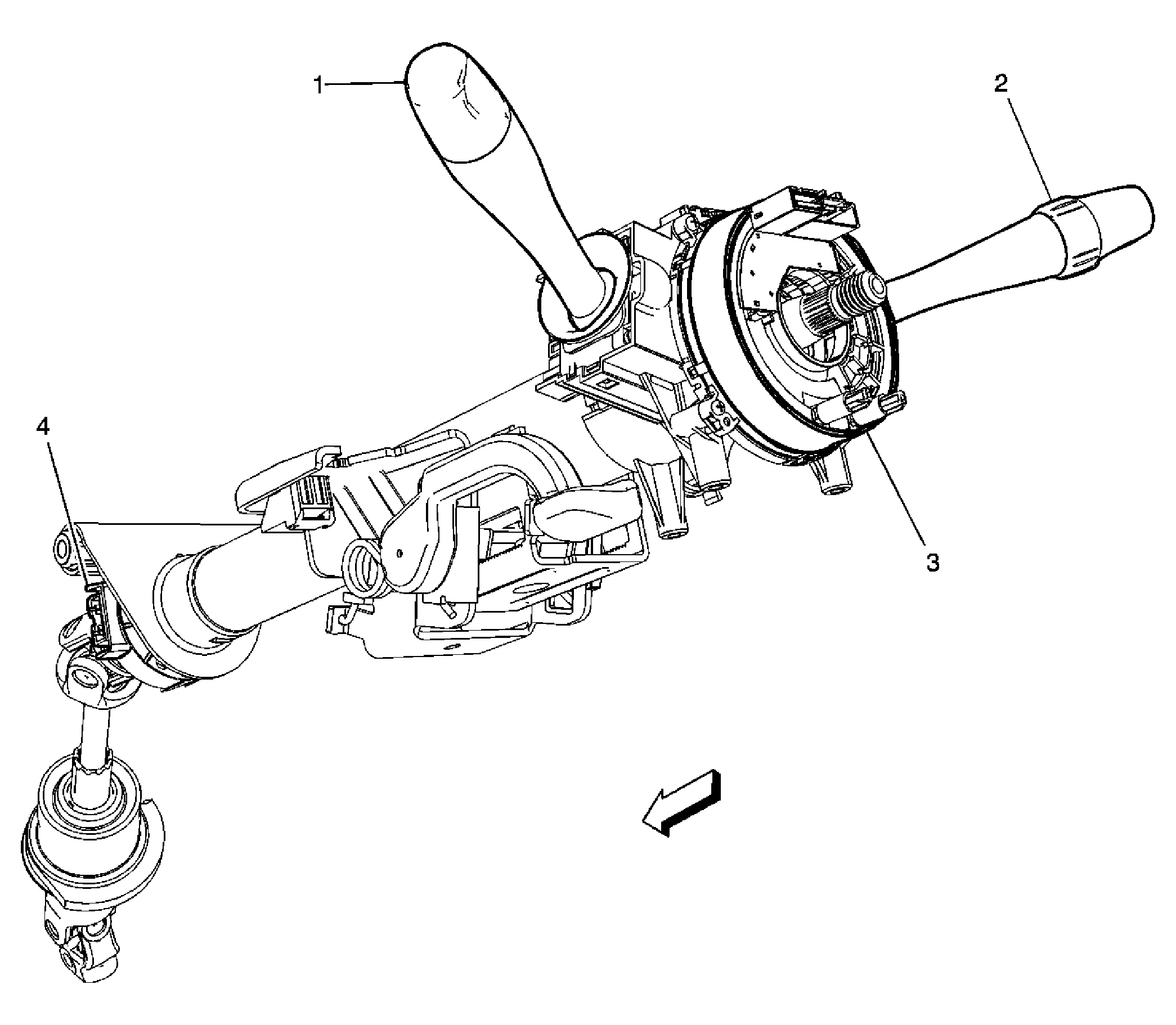

Fig 4: View Of Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Inflatable Restraint Steering Wheel Module Coil
4	Steering Wheel Position Sensor (FX3)

Fig 5: Identifying Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet (w/o DT4), Cigar Lighter (DT4)
2	Auxiliary Power Outlet (NW7)
3	Traction Control Switch (NW7)
4	Rear Seat Audio (RSA) Controller (UK6)
5	Console Trim

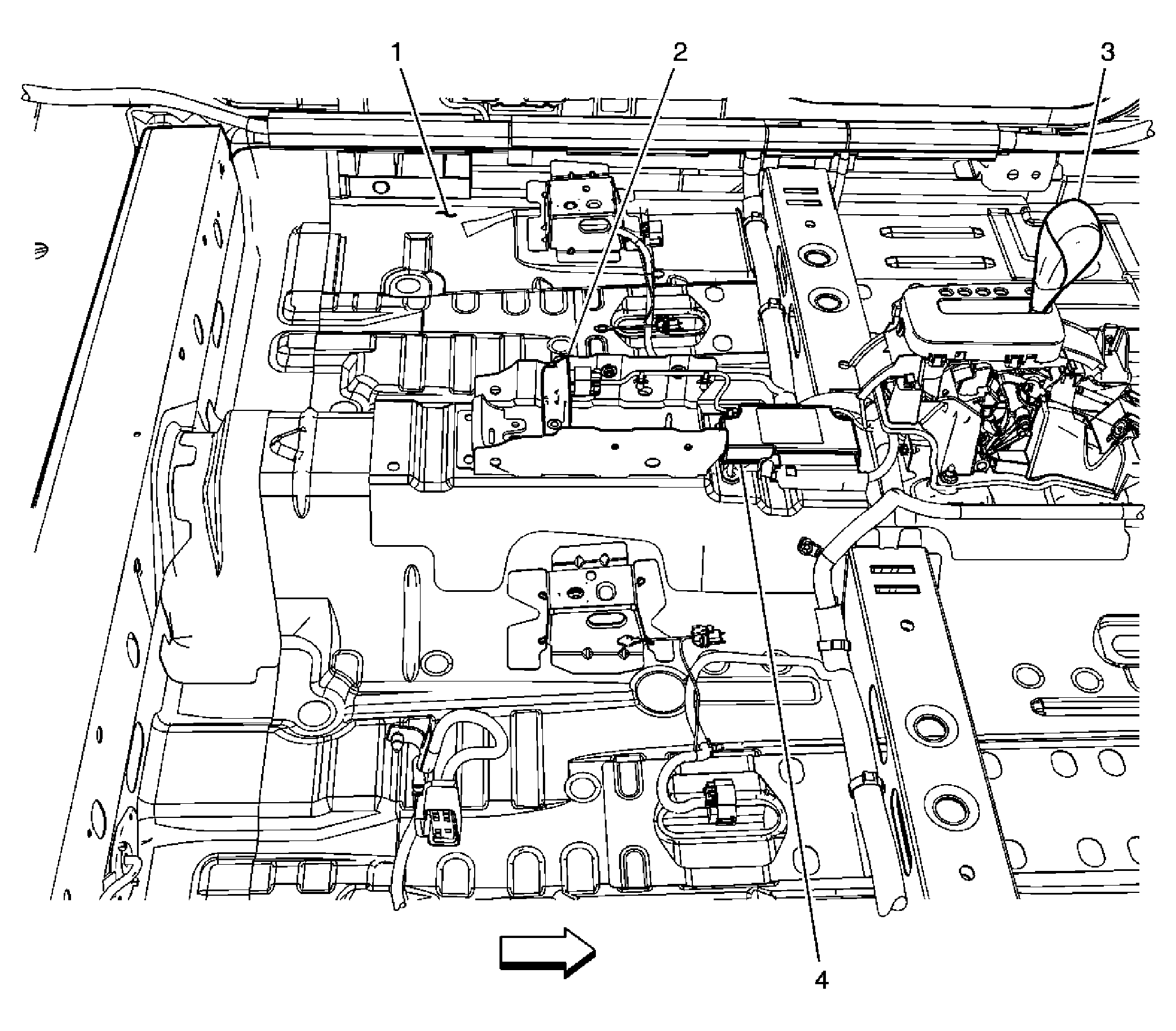

Fig 6: View Of Components Behind Shifter Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	Yaw Rate and Lateral Acceleration Sensor (FX3)
3	Shifter Assembly
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
