Adjustable Pedal Component Views
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Speaker - LF Tweeter |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Radio |
| 5 | Hazard Switch |
| 6 | Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator |
| 7 | Ambient Light Sensor (C60) Sunload Sensor (C68) |
| 8 | Speaker - RF Tweeter |
| 9 | HVAC Control Module |
| 10 | Ignition Switch |
| 11 | Windshield Wiper/Washer Switch |
| 12 | Inflatable Restraint Steering Wheel Module Coil |
| 13 | Fog Lamp Switch (T96) |
| 14 | I/P Dimmer Switch |
| 15 | Adjustable Pedal Position Switch (JF4) |

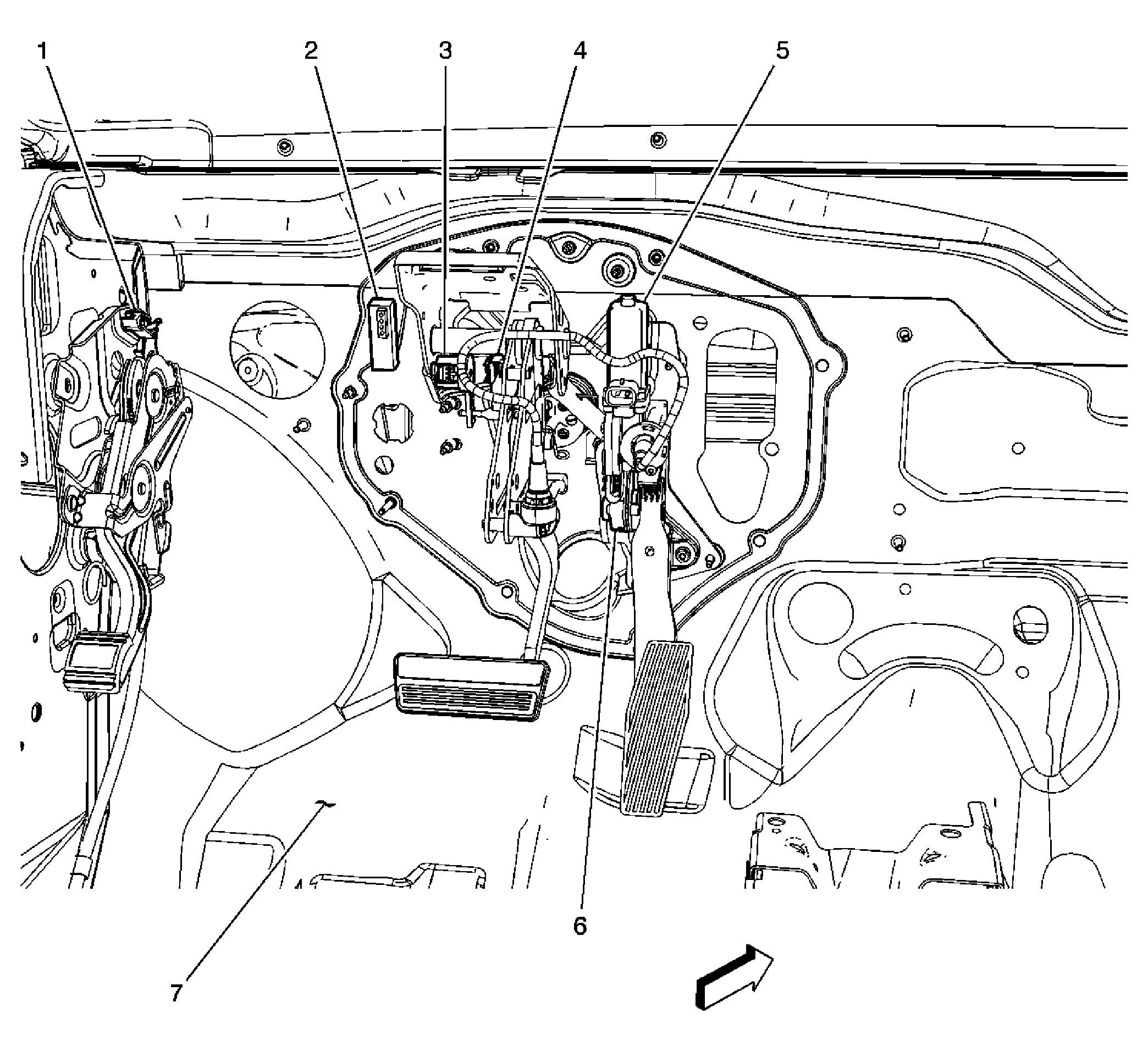

| Callout | Component Name |
|---|---|
| 1 | Park Brake Switch |
| 2 | Adjustable Pedal Module (JF4) |
| 3 | Brake Pedal Position Sensor |
| 4 | Adjustable Pedal Position Sensor (JF4) |
| 5 | Adjustable Accelerator Pedal Position Motor (JF4) |
| 6 | Accelerator Pedal Position (APP) Sensor |
| 7 | Floor Panel |
