Entertainment/Communication Component Views

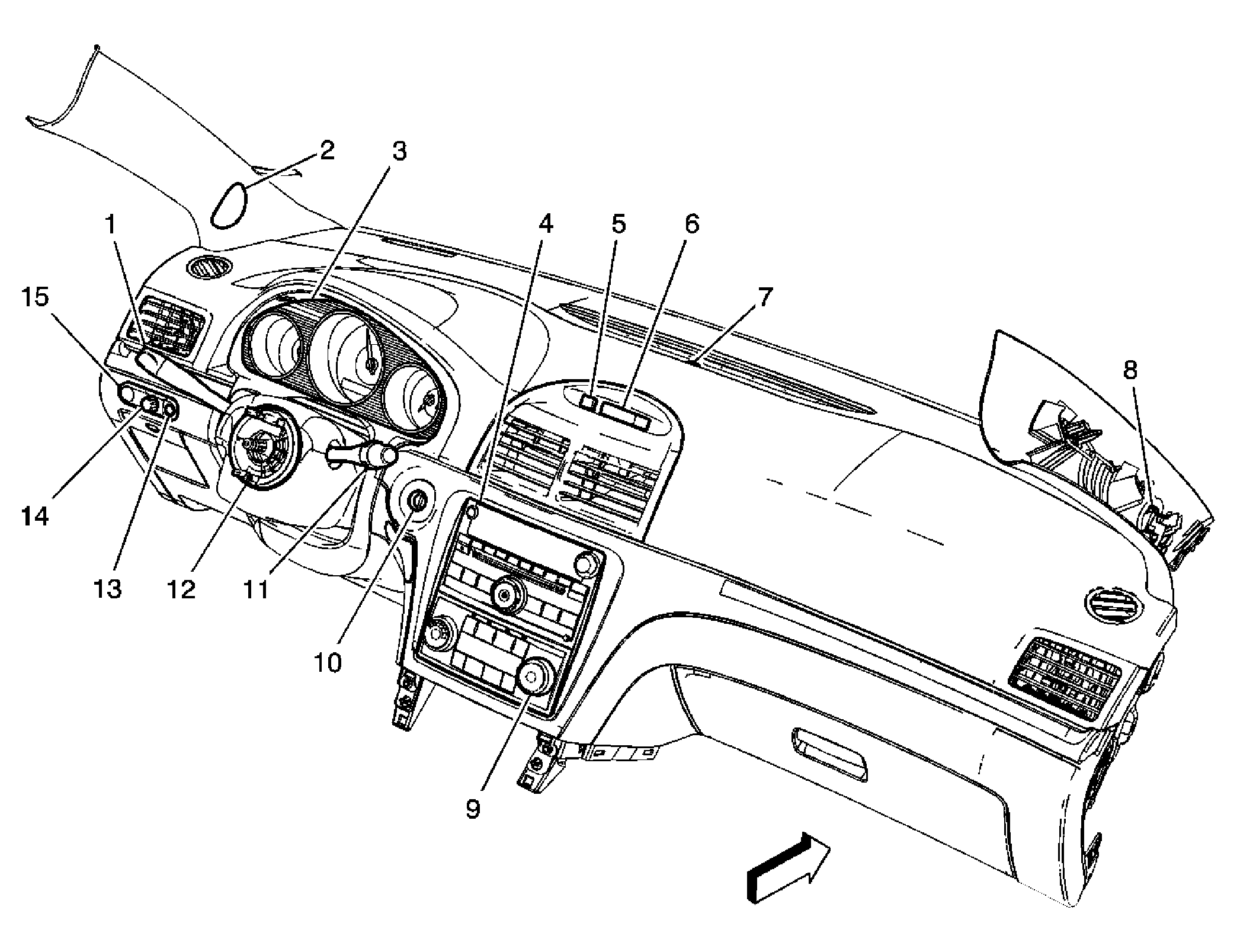

Fig 1: View Of Front Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Speaker - LF Tweeter
3	Instrument Panel Cluster (IPC)
4	Radio
5	Hazard Switch
6	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
7	Ambient Light Sensor (C60) Sunload Sensor (C68)
8	Speaker - RF Tweeter
9	HVAC Control Module
10	Ignition Switch
11	Windshield Wiper/Washer Switch
12	Inflatable Restraint Steering Wheel Module Coil
13	Fog Lamp Switch (T96)
14	I/P Dimmer Switch
15	Adjustable Pedal Position Switch (JF4)

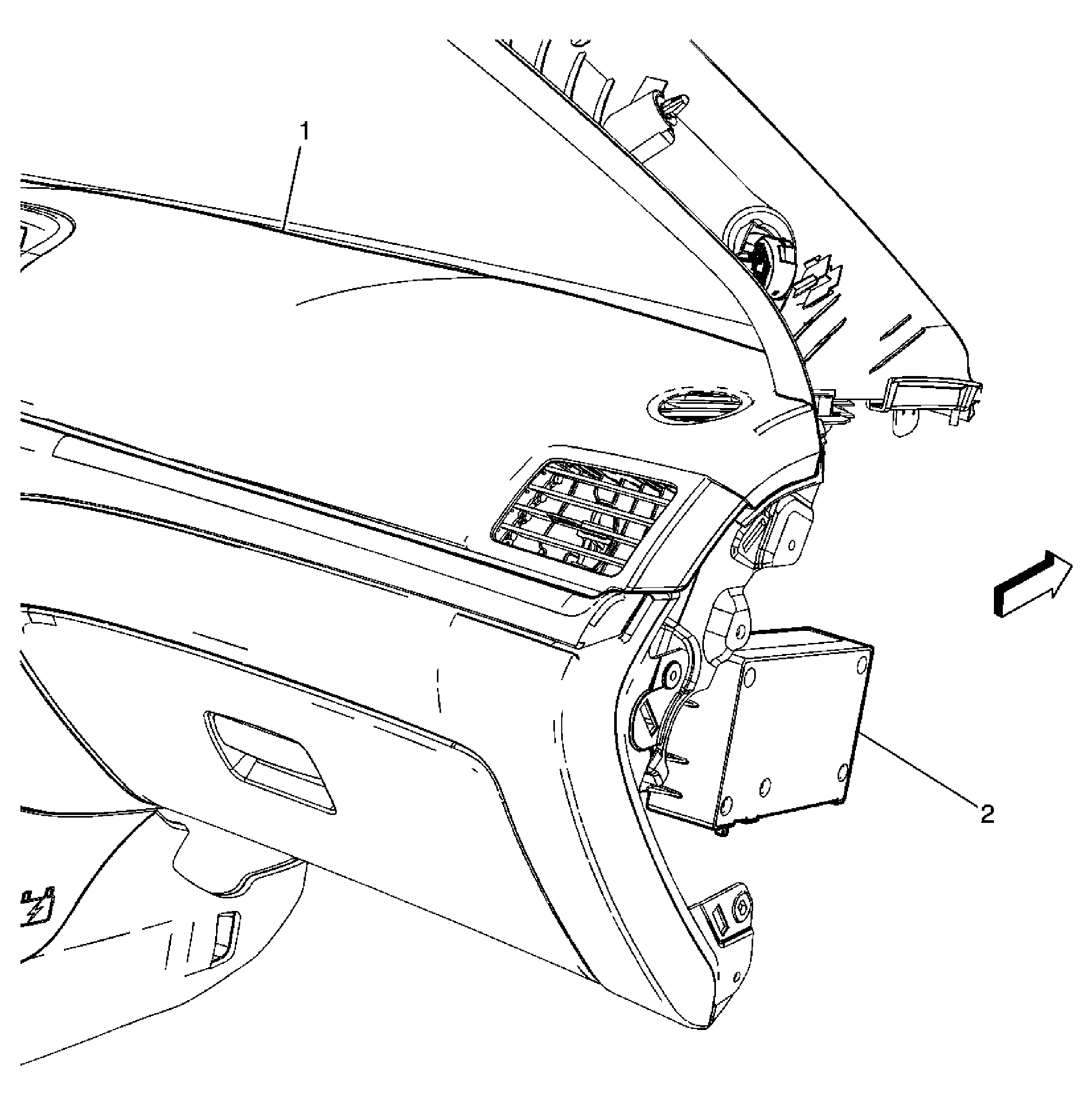

Fig 2: View Behind I/P Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Vehicle Communications Interface Module (VCIM) (UE1)

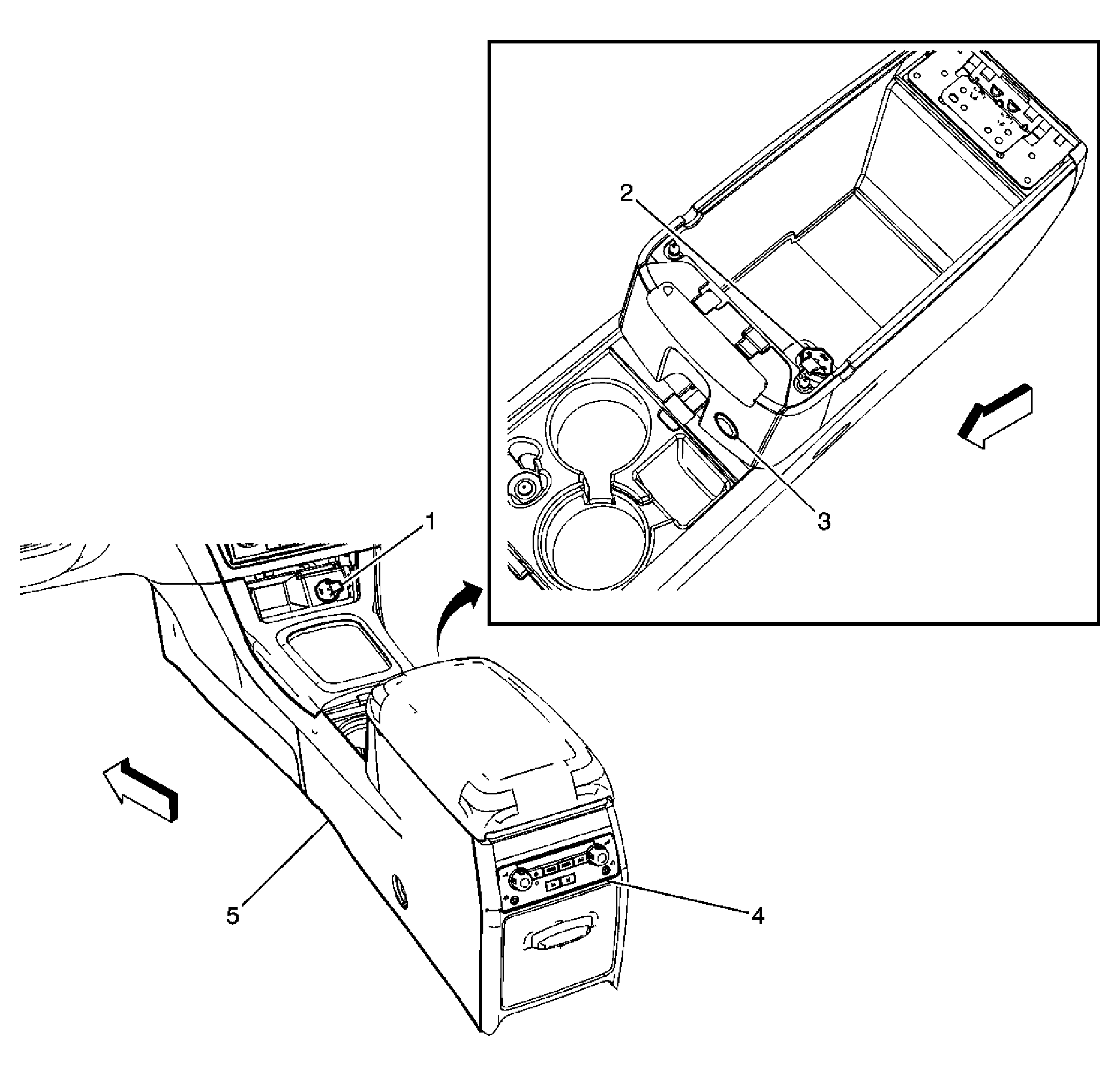

Fig 3: Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet (w/o DT4), Cigar Lighter (DT4)
2	Auxiliary Power Outlet (NW7)
3	Traction Control Switch (NW7)
4	Rear Seat Audio (RSA) Controller (UK6)
5	Console Trim

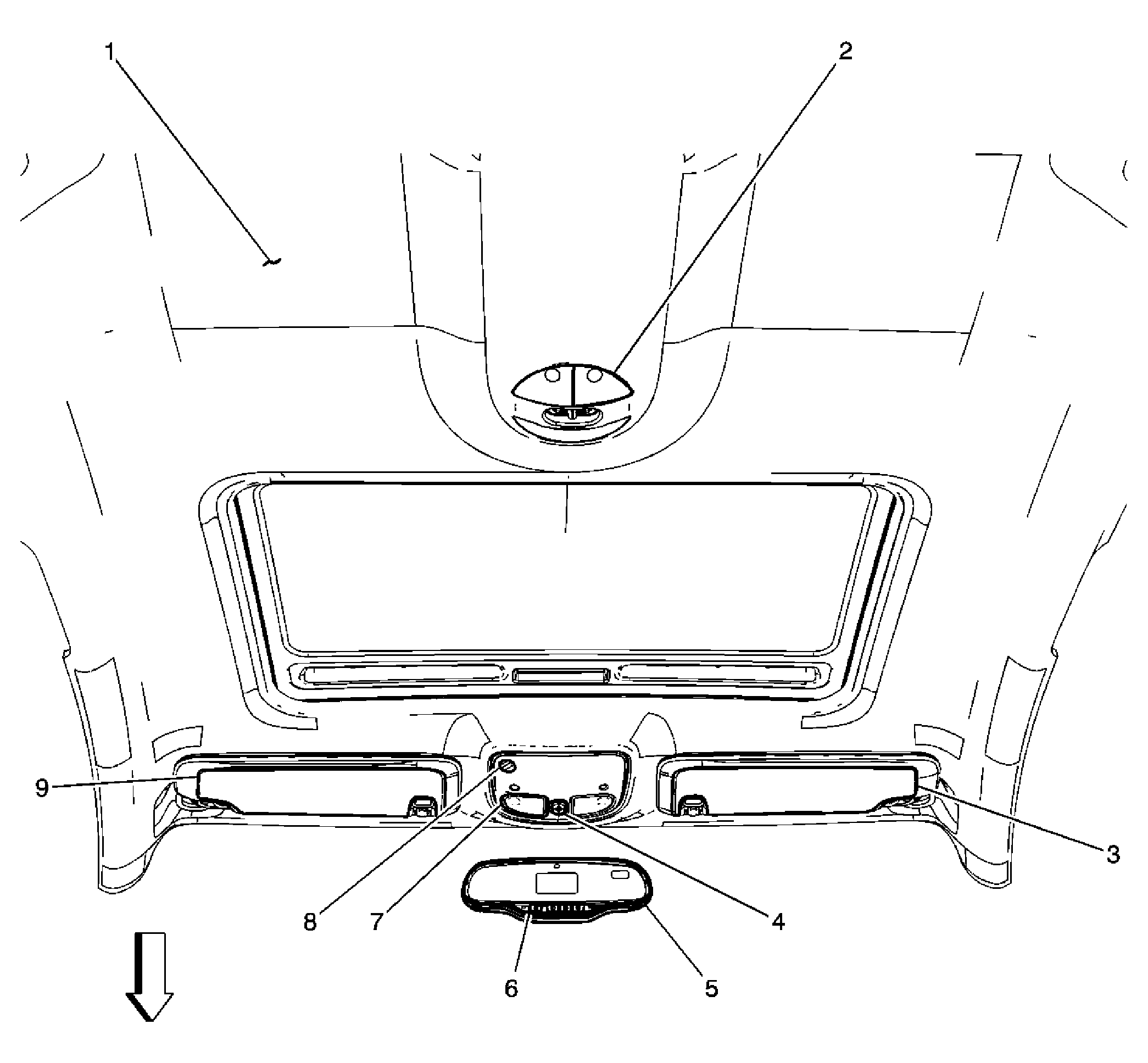

Fig 4: View Of Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome/Reading Lamp
3	Vanity Mirror Lamp - Right (DH6)
4	Sunroof Switch (CF5)/Sunroof Shade Switch (C3Y)
5	Inside Rearview Mirror
6	OnStar Button Assembly (UE1)
7	Courtesy/Reading Lamps - Front (C95)
8	Cellular Telephone Microphone (UE1)
9	Vanity Mirror Lamp - Left (DH6)

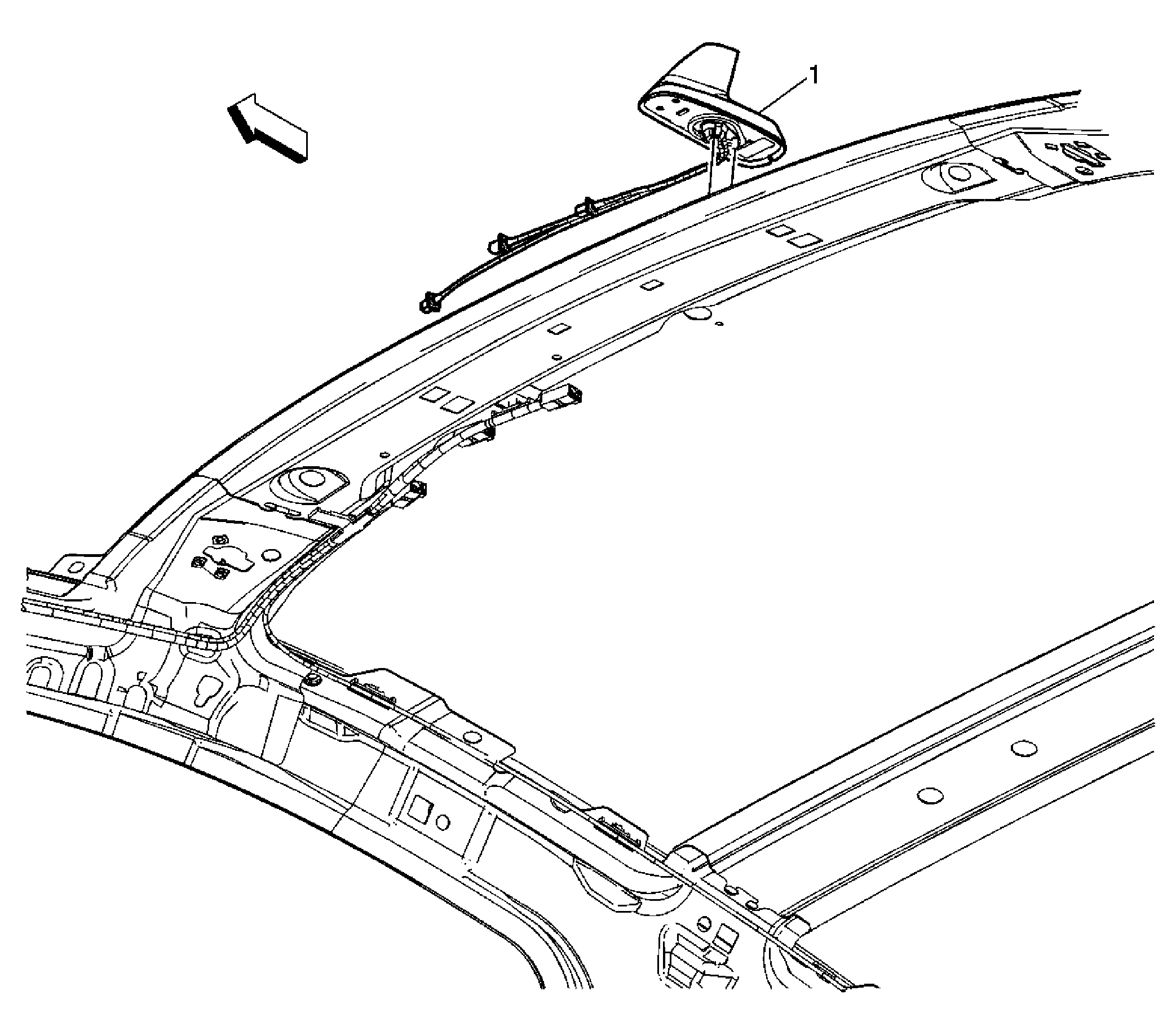

Fig 5: View Above Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigational Antenna

Fig 6: View Of Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror Switch
4	Courtesy Lamp - Left Front Door
5	Door Lock Switch - Driver
6	Window Motor - Driver
7	Speaker - LF Door
8	Rear Compartment Lid Release Switch
9	Window Switch - Driver
10	Inflatable Restraint Side Impact Sensor - Left
11	Door Latch Assembly - Driver

Fig 7: View Of Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Passenger
4	Inflatable Restraint Side Impact Sensor - Right
5	Window Switch - Passenger
6	Speaker - RF Door
7	Window Motor - Passenger
8	Door Lock Switch - Passenger
9	Courtesy Lamp - Right Front Door

Fig 8: View Of Rear Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp
2	Remote Control Door Lock Receiver (RCDLR) (AUO)
3	Speaker - LR
4	Rear Shelf
5	Digital Radio Receiver (U2K)
6	Speaker - RR

Fig 9: View Of Rear of the Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Fuse Block - Rear
3	Rear Floor
4	Audio Amplifier (UQ3)

Fig 10: View Of Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Radio Rear Window Antenna
3	Center High Mounted Stop Lamp (CHMSL)
4	Rear Window Defogger Grid
5	Turn Signal Lamp - RR
6	Marker Lamp - RR
7	Tail/Stop Lamp - Right
8	Backup Lamp - Right
9	License Lamp
10	Backup Lamp - Left
11	Tail/Stop Lamp - Left
12	Marker Lamp - LR
13	Turn Signal Lamp - LR
