Secondary/Configurable Control Component Views

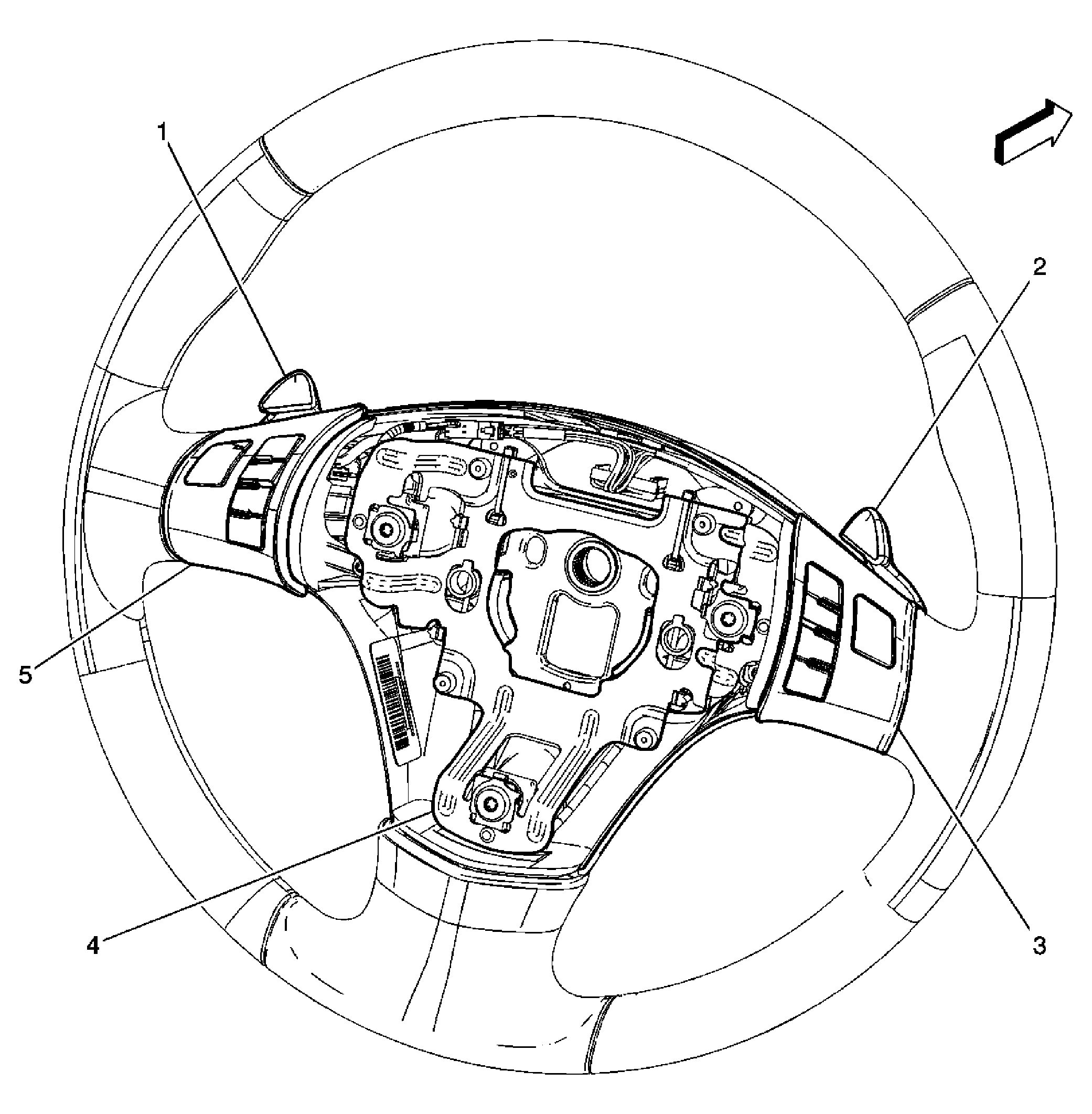

Fig 1: View Of Steering Wheel Components
GM1832275Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tap Up/Tap Down Switch - Left (KB7)
2 Tap Up/Tap Down Switch - Right (KB7)
3 Steering Wheel Controls - Right (UK3)
4 Horn Switch
5 Steering Wheel Controls - Left (UK3)
